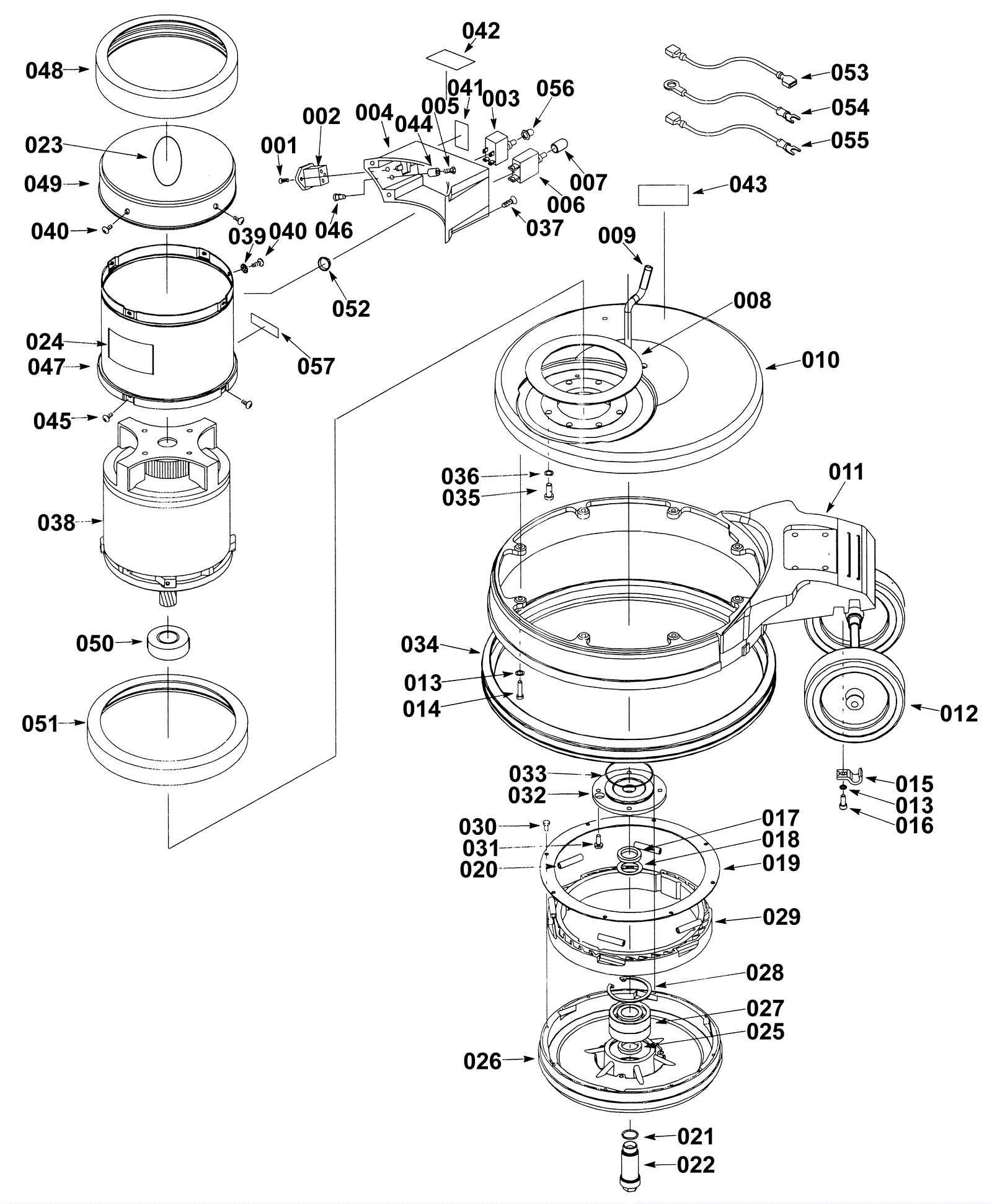

2260 Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-7694 Screw $8.03 2 usually ships 1-5 days
002 175-7695 Gray female plug end $69.41 1 usually ships 10-16 days
003 164-0290 Toggle switch $14.63 1 ships same day
004 175-7696 Switch housing (OBSOLETE) $38.94 1 usually ships 1-5 days
005 175-7697 Screw countersunk (OBSOLETE) $1.32 2 usually ships 1-5 days
006 175-7698 17amp circuit breaker $52.80 1 usually ships 10-16 days
007 175-7699 Switch boot $11.00 1 usually ships 10-16 days
008 175-7700 Seal $2.90 1 usually ships 1-5 days
009 175-2144 Tube (OBSOLETE) $15.40 1 usually ships 10-16 days
010 175-7701 Housing $444.40 1 usually ships 1-5 days
011 175-7702 17 Inch frame (OBSOLETE) $580.25 1 usually ships 1-5 days
012 175-7703 Wheel set with axle (OBSOLETE) $66.88 9 usually ships 10-16 days
013 999-0148 Washer #6 external star lock zinc plated $0.99 8 ships same day
014 175-7704 Screw $5.72 1 usually ships 1-5 days
015 175-7705 Clip $31.68 1 usually ships 1-5 days
016 175-7706 Screw $49.72 1 usually ships 1-5 days
017 175-2186 O-ring $73.70 1 usually ships 1-5 days
018 175-2205 Washer compensating $42.13 1 usually ships 1-5 days
019 175-7707 Ring $118.80 1 usually ships 1-5 days
020 175-7708 Compression spring $33.77 6 usually ships 1-5 days
021 175-2158 O-ring $1.58 1 usually ships 10-16 days
022 175-2155 Shaft $105.93 1 usually ships 1-5 days
023 175-4961 Spring mounting channel weldment $30.69 1 Tennant usually ships 1-5 days
024 175-7709 Label (OBSOLETE) $6.49 1 2260 usually ships 1-5 days
025 175-7710 Shaft seal $53.90 1 usually ships 1-5 days
026 175-7711 Pad holder (OBSOLETE) $486.20 1 usually ships 1-5 days
027 175-7712 Deep goove ball bearing $75.13 2 usually ships 10-16 days
028 175-7713 Retaining ring $94.49 1 usually ships 1-5 days
029 175-7714 Collar (OBSOLETE) $16.83 1 usually ships 1-5 days
030 175-7684 Screw $6.05 8 usually ships 1-5 days
031 175-7715 Screw $5.72 4 usually ships 1-5 days
032 175-2224 Flange $132.00 1 usually ships 10-16 days
033 175-7716 Ring $2.24 1 usually ships 1-5 days
034 175-7717 Bumper (OBSOLETE) $46.42 1 For protection usually ships 1-5 days
035 175-7718 Screw $5.50 4 usually ships 1-5 days
036 999-0992 Screw 3/8-16 x 1 flat head slotted zinc plated $0.99 4 usually ships 1-5 days
038a 175-7720 Motor 120V 1.5hp (OBSOLETE) $1,236.18 1 1800/3200rpm usually ships 1-5 days
038b 175-3492 Carbon brush $25.63 4 usually ships 10-16 days
039 175-7721 Lock washer (OBSOLETE) $0.99 1 usually ships 1-5 days
040 175-7722 Screw oval head (OBSOLETE) Call for price 5 usually ships 1-5 days
041 175-1280 Operation decal $5.28 1 usually ships 10-16 days
042 275-5164 Warning decal $9.90 1 usually ships 1-5 days
043 275-5164 Warning decal $9.90 1 usually ships 1-5 days
044 175-7723 Bushing $82.17 2 usually ships 1-5 days
045 175-7724 Screw (OBSOLETE) $1.58 4 usually ships 1-5 days
046 175-7725 Plug $41.03 2 usually ships 1-5 days
047 175-7726 Motor shroud (OBSOLETE) Call for price 1 usually ships 1-5 days
048 175-7727 Motor bumper (OBSOLETE) $83.38 1 usually ships 1-5 days
049 175-7728 Top motor cover (OBSOLETE) $80.19 1 usually ships 1-5 days
050 175-7729 Bearing $102.85 1 usually ships 1-5 days
051 175-7730 Motor bumper ring $141.90 usually ships 1-5 days
052 175-7731 Grommet (OBSOLETE) $2.11 1 usually ships 1-5 days
053 175-7732 Black jumper wire (OBSOLETE) $3.30 1 Circuit breaker to switch usually ships 1-5 days
054 175-7733 Green jumper wire (OBSOLETE) $2.77 1 Plug to motor housing usually ships 1-5 days
055 175-7734 Black jumper wire (OBSOLETE) $4.36 1 Plug to circuit breaker usually ships 1-5 days
056 175-0329 Rubber boot for switch $16.17 1 ships same day
057 N/A Not available Call for price 1 Decal usually ships 3-26 days
