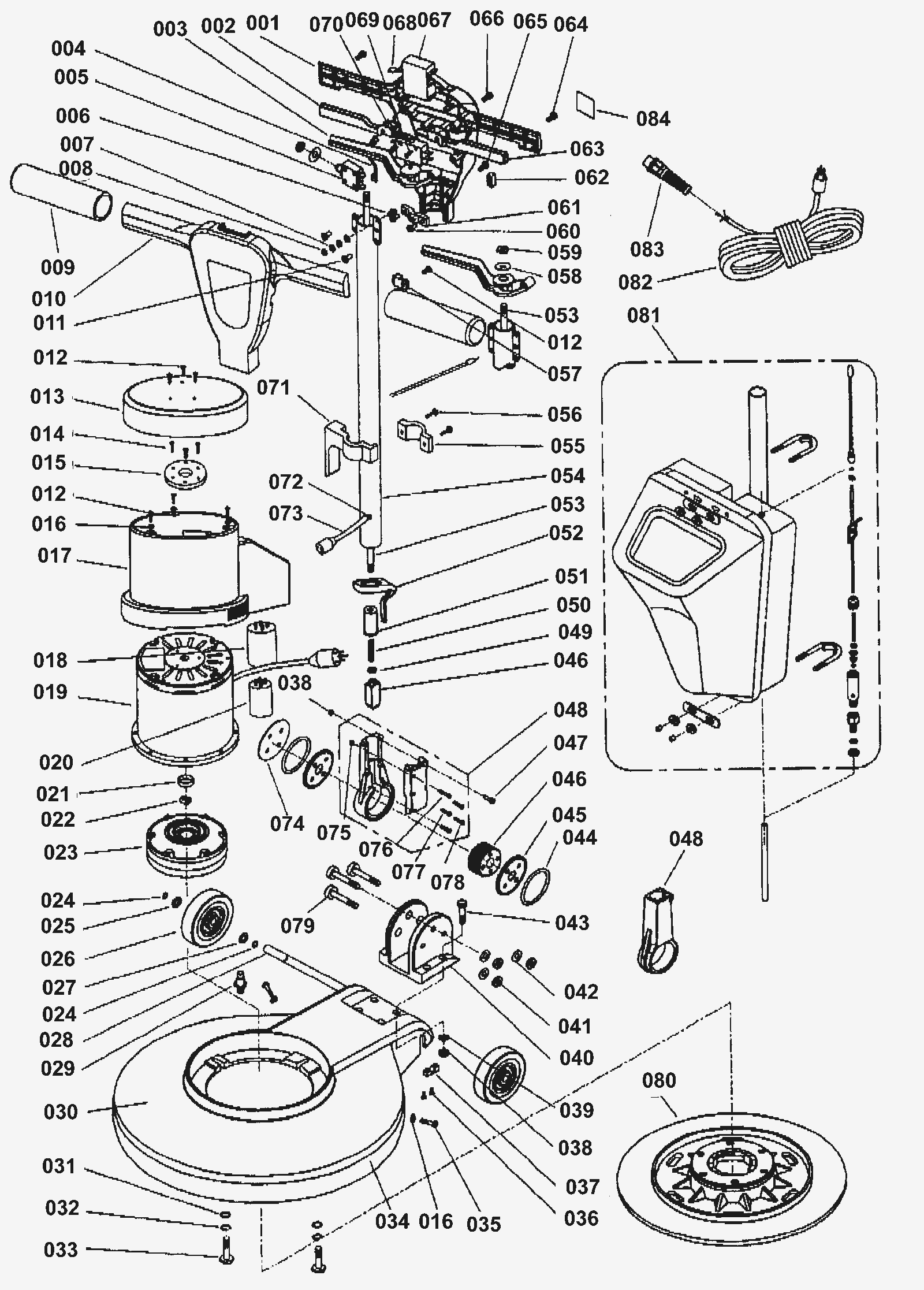

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
175-3917
|
Switch housing rear cover (metal) |
1 |
|
|
001b |
175-3918
|
Switch housing rear cover (plastic) |
1 |
|
|
002a |
175-3919
|
Right switch lever (metal) (OBSOLETE) |
1 |
|
|
002b |
N/A
|
Not available |
1 |
(Lever) |
|
003a |
175-3921
|
Left switch lever (metal) (OBSOLETE) |
1 |
|
|
003b |
N/A
|
Not available |
1 |
Plastic leveling handle |
|
004 |
999-0447
|
Screw 6-32 x 1/2 pan head phillips zinc plated |
1 |
|
|
005a |
N/A
|
Not available |
1 |
17amp circuit breaker |
|
005b |
175-3925
|
Circuit breaker 12AMPS (OBSOLETE) |
1 |
|
|
006 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
1 |
|
|
007 |
999-0311
|
Washer #10 external star lock zinc plated |
2 |
|
|
008 |
999-0740
|
Nut M5-.8 hex stainless steel |
2 |
|
|
009 |
175-3928
|
Handle grip |
2 |
|
|
010a |
N/A
|
Not available |
1 |
Switch housing front cover |
|
010b |
N/A
|
Not available |
1 |
Switch housing front cover |
|
011 |
175-3931
|
Screw M5 x 12 (OBSOLETE) |
3 |
|
|
012 |
175-3932
|
Screw M5 x 10 (OBSOLETE) |
6 |
|
|
013 |
175-3933
|
Motor cover top (OBSOLETE) |
1 |
|
|
014 |
175-3934
|
Screw M5 x 18 (OBSOLETE) |
3 |
|
|
015 |
175-3935
|
Gasket ABS (OBSOLETE) |
1 |
|
|
016 |
175-3936
|
Washer 5 plain (OBSOLETE) |
5 |
|
|
017 |
N/A
|
Not available |
1 |
(motor cover) |
|
018 |
175-3938
|
Start capacitor 400MFD/150V (OBSOLETE) |
1 |
|
|
019a |
175-3939
|
Motor 110V 1.5 HP (OBSOLETE) |
1 |
|
|
019b |
175-3940
|
Motor 110V 1.0 HP |
1 |
|
|
020 |
175-3941
|
Running capacitor 75UF/250V |
1 |
|
|
021 |
175-3942
|
Sleeve (OBSOLETE) |
1 |
|
|
022 |
N/A
|
Not available |
1 |
(Motor coupler) |
|
023 |
175-3944
|
Gear box |
1 |
|
|
024 |
175-3945
|
External retaining ring 12 |
4 |
|
|
025 |
175-3947
|
Washer 12.35 plain |
2 |
|
|
026 |
N/A
|
Not available |
2 |
5 inch wheel |
|
027 |
999-0806
|
Washer M12 wave zinc plated |
2 |
|
|
028 |
175-3949
|
Wheel axle (OBSOLETE) |
1 |
|
|
029 |
175-3950
|
Solution feed hose barb (OBSOLETE) |
1 |
|
|
030a |
175-3951
|
20 inch frame (OBSOLETE) |
1 |
|
|
030b |
175-3952
|
17 inch frame (OBSOLETE) |
1 |
|
|
031 |
175-3953
|
Washer plain 8 (OBSOLETE) |
4 |
|
|
032 |
175-3954
|
Washer lock 8 (OBSOLETE) |
4 |
|
|
033 |
175-3955
|
Screw M8 x 30 (OBSOLETE) |
4 |
|
|
034a |
175-3956
|
Frame bumper 17 inch (OBSOLETE) |
1 |
|
|
034b |
175-3957
|
Frame bumper 20 inch (OBSOLETE) |
1 |
|
|
035 |
175-3958
|
Screw M5 x 16 (OBSOLETE) |
2 |
|
|
036 |
175-3959
|
Screw ST5 x 20 self-tapping (OBSOLETE) |
4 |
|
|
037 |
175-3960
|
Axle clamp block (OBSOLETE) |
2 |
|
|
038 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
039 |
175-3962
|
Washer 6 x 16 x 1.5mm plain (OBSOLETE) |
4 |
|
|
040 |
175-3963
|
Gear mounting base (OBSOLETE) |
1 |
|
|
041 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
3 |
|
|
042 |
999-9097
|
Washer M8 flat stainless steel |
3 |
|
|
043 |
175-3966
|
Screw M6 x 35 hex socket (OBSOLETE) |
4 |
|
|
044 |
175-3967
|
Seal |
2 |
|
|
045 |
175-3968
|
Nylon washer |
2 |
|
|
046 |
175-3619
|
Gear and plunger kit (OBSOLETE) |
1 |
|
|
047 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
048 |
175-3970
|
Gear seat replacement assembly (OBSOLETE) |
1 |
|
|
049 |
175-3971
|
Nut M4 (OBSOLETE) |
1 |
|
|
050 |
175-3972
|
Leveling spring (OBSOLETE) |
1 |
|
|
051 |
175-3973
|
Retainer (OBSOLETE) |
1 |
|
|
052 |
175-3974
|
Seal (OBSOLETE) |
1 |
|
|
053 |
175-3975
|
Leveling rod (OBSOLETE) |
1 |
|
|
054 |
N/A
|
Not available |
1 |
Handle tube |
|
055 |
175-3977
|
Cable hook cover |
1 |
|
|
056 |
999-1308
|
Nut M6-1 hex stainless steel |
2 |
|
|
057 |
N/A
|
Not available |
1 |
Cable clamp |
|
058 |
175-3980
|
Washer (OBSOLETE) |
1 |
|
|
059 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
1 |
|
|
060 |
999-1556
|
Screw M4-.7 x 8mm pan head phillips zinc plated |
2 |
|
|
061 |
175-3983
|
Cord handle clamp block |
1 |
|
|
062 |
175-3984
|
Solution handle cover |
1 |
|
|
063a |
175-3985
|
Left switch lever (metal) (OBSOLETE) |
1 |
|
|
063b |
N/A
|
Not available |
1 |
(Left hand switch lever) |
|
064 |
175-3987
|
Screw M5 x 16 (OBSOLETE) |
2 |
|
|
065 |
999-1554
|
Screw M5-.8 x 35mm pan head phillips zinc plated |
3 |
|
|
066 |
999-0797
|
Screw M5-.8 x 30mm pan head phillips stainless steel |
2 |
|
|
067 |
175-3990
|
Safety lock button (OBSOLETE) |
1 |
|
|
068 |
N/A
|
Not available |
1 |
(Safety lock spring) |
|
069 |
175-3992
|
Screw M5 x 25 |
2 |
|
|
070 |
N/A
|
Not available |
1 |
Switch assembly |
|
071 |
175-3994
|
Cable hook (OBSOLETE) |
1 |
|
|
072 |
175-3995
|
Grommet (OBSOLETE) |
1 |
|
|
073 |
175-3996
|
Handle cord (OBSOLETE) |
1 |
|
|
074 |
175-3620
|
Gear cover (OBSOLETE) |
1 |
|
|
075 |
999-0953
|
Nut M5-.8 hex nylon insert lock stainless steel |
1 |
|
|
076 |
175-3998
|
Screw M5 x 38mm hex head (OBSOLETE) |
1 |
|
|
077 |
999-9090
|
Screw M5-.8 x 25mm hex head stainless steel |
2 |
|
|
078 |
999-1322
|
Screw M5-.8 x 20mm hex head stainless steel |
2 |
|
|
079 |
999-1368
|
Screw M8-1.25 x 60mm hex head stainless steel |
3 |
|
|
080a |
175-0305
|
17 inch pad driver assembly |
1 |
|
|
080b |
175-0306
|
20 inch pad driver assembly |
1 |
|
|
080c |
991-3091
|
19 inch VELCRO FACE PAD DRIVER W/PLATE |
1 |
(NON-OEM) |
|
081 |
175-4002
|
Solution tank assembly (OBSOLETE) |
1 |
|
|
082 |
175-4003
|
Main power cable 14/3C |
1 |
|
|
083 |
N/A
|
Not available |
1 |
(Strain relief) |
|
084 |
275-5164
|
Warning decal |
1 |
|
|
N/S |
N/A
|
Not available |
1 |
Capacitor |
|
N/S |
275-4688
|
PVC hose (sold by the foot) |
1 |
|
|
N/S |
275-5723
|
Start capacitor (OBSOLETE) |
1 |
|
|
