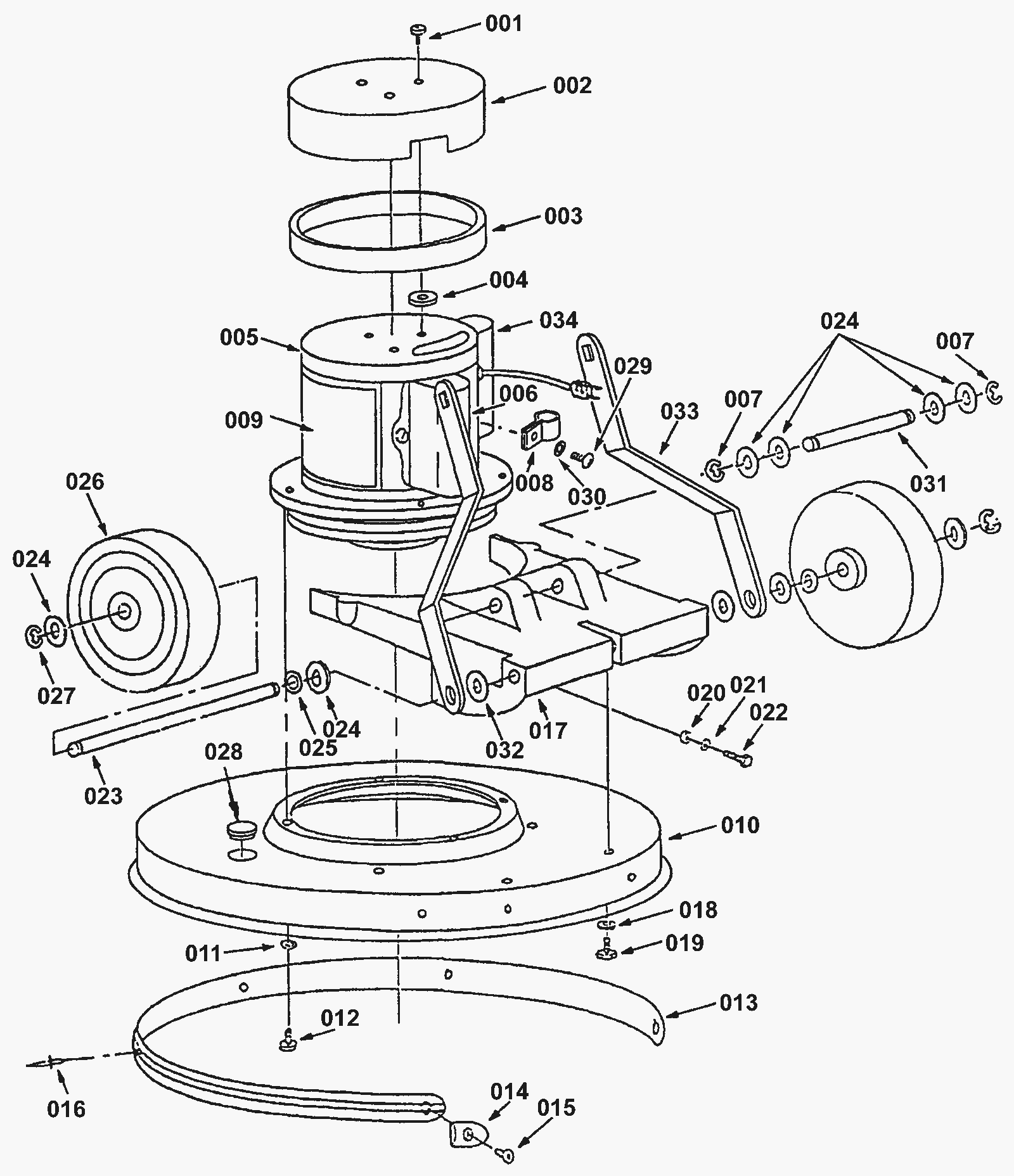

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0371
|
Screw 10-32 x 1/2 pan head phillips zinc plated |
3 |
|
|
002a |
N/A
|
Not available |
1 |
(not available) Motor top cap 1hp |
|
002b |
N/A
|
Not available |
1 |
(not available) Motor top cap 1.5 hp |
|
003 |
N/A
|
Not available |
1 |
(not available) Top cap bumper |
|
004 |
N/A
|
Not available |
3 |
r(not available) ubber washer |
|
005a |
N/A
|
Not available |
1 |
(not available) Motor gear box assembly 1hp |
|
005b |
N/A
|
Not available |
1 |
(not available) Motor gear box assembly 1.5 hp |
|
005c |
N/A
|
Not available |
1 |
(not available) Motor gear box assembly 1.5 hp |
|
005d |
N/A
|
Not available |
1 |
(not available) Rotary actuator |
|
005e |
N/A
|
Not available |
1 |
(not available) Start switch assembly |
|
005f |
N/A
|
Not available |
1 |
(not available) Rotary switch |
|
005g |
175-0928
|
Stationary switch |
1 |
|
|
006a |
N/A
|
Not available |
1 |
(not available) Capacitor 1hp |
|
006b |
N/A
|
Not available |
1 |
(not available) Capacitor 1.5 hp |
|
007 |
175-0929
|
Retaining ring (OBSOLETE) |
2 |
|
|
008 |
N/A
|
Not available |
1 |
(not available) Motor lead clip |
|
009a |
N/A
|
Not available |
1 |
(not available) Motor wrap decal |
|
009b |
N/A
|
Not available |
1 |
(not available) Motor wrap decal |
|
009c |
N/A
|
Not available |
1 |
(not available) Motor wrap decal |
|
009d |
N/A
|
Not available |
1 |
(not available) Motor wrap decal |
|
009e |
N/A
|
Not available |
1 |
(not available) Motor wrap decal |
|
010a |
N/A
|
Not available |
1 |
(not available) Base spinning PT-15 |
|
010b |
175-0930
|
Base spinning PT-17 (OBSOLETE) |
1 |
|
|
010c |
175-0931
|
Base spinning PT-17X (OBSOLETE) |
1 |
|
|
010d |
N/A
|
Not available |
1 |
(not available) Base spinning PT-20 |
|
010e |
N/A
|
Not available |
1 |
(not available) Base spinning PT-20X |
|
011 |
N/A
|
Not available |
4 |
(not available) Lock washer |
|
012 |
175-0932
|
Screw 1/4-20 x 5/8 hex head |
4 |
|
|
013a |
N/A
|
Not available |
1 |
(not available) Shroud bumper |
|
013b |
N/A
|
Not available |
1 |
(not available) Shroud bumper |
|
013c |
N/A
|
Not available |
1 |
(not available) Shroud bumper |
|
014 |
N/A
|
Not available |
2 |
(not available) Bumper clip |
|
015 |
175-0933
|
Pop rivet bumper clip (OBSOLETE) |
2 |
|
|
016 |
N/A
|
Not available |
3 |
(not available) Pop rivet |
|
017a |
N/A
|
Not available |
1 |
(not available) Base support casting |
|
017b |
N/A
|
Not available |
1 |
(not available) Base support casting |
|
017c |
N/A
|
Not available |
1 |
(not available) Base support casting |
|
018 |
N/A
|
Not available |
4 |
(not available) Lock washer |
|
019 |
175-0932
|
Screw 1/4-20 x 5/8 hex head |
4 |
|
|
020 |
N/A
|
Not available |
2 |
(not available) Nut hex head |
|
021 |
N/A
|
Not available |
2 |
(not available) Lock washer |
|
022 |
999-1099
|
Bolt 1/4-20 x 3/4 hex head stainless steel |
2 |
|
|
023 |
N/A
|
Not available |
1 |
(not available) Wheel axle |
|
024 |
N/A
|
Not available |
8 |
(not available) Washer flat |
|
025 |
N/A
|
Not available |
2 |
(not available) Washer wave |
|
026 |
N/A
|
Not available |
2 |
(not available) Wheel 5 inch |
|
027 |
175-0929
|
Retaining ring (OBSOLETE) |
2 |
|
|
028 |
N/A
|
Not available |
1 |
(not available) Caplug |
|
029 |
999-0569
|
Screw 10 x 1/2 pan head phillips sheet metal |
1 |
|
|
030 |
N/A
|
Not available |
1 |
(not available) Washer lock |
|
031 |
N/A
|
Not available |
1 |
(not available) |
|
032 |
999-1156
|
Washer M12-.7 nylon |
2 |
|
|
033 |
N/A
|
Not available |
2 |
(not available) Bracket support |
|
034 |
N/A
|
Not available |
1 |
(not available) Run capacitor |
|
