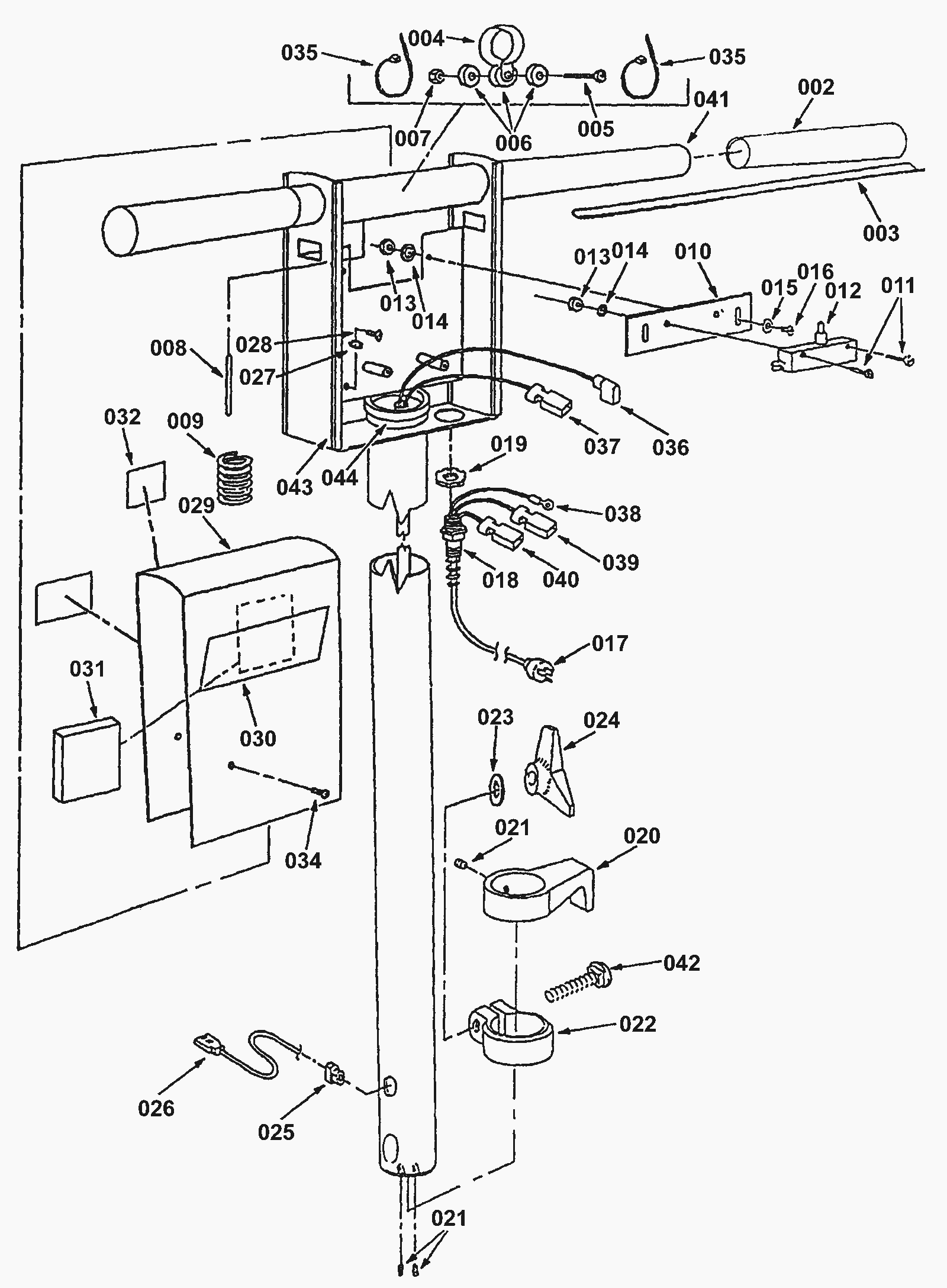

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
N/A
|
Not available |
1 |
(not available) Complete handle assembly |
|
002 |
N/A
|
Not available |
2 |
(not available) Handle grip |
|
003 |
N/A
|
Not available |
1 |
(not available) Switch lever |
|
004 |
175-0913
|
Safety cam slip (OBSOLETE) |
1 |
|
|
005 |
175-0914
|
Screw pan head phillips |
1 |
|
|
006 |
N/A
|
Not available |
3 |
(not available) Safety cam spacer |
|
008 |
N/A
|
Not available |
2 |
(not available) Spiral pin |
|
009 |
N/A
|
Not available |
2 |
(not available) Handle lever spring |
|
010 |
N/A
|
Not available |
1 |
(not available) Switch mounting plate |
|
011 |
N/A
|
Not available |
2 |
(not available) Screw pan head phillips |
|
012 |
N/A
|
Not available |
1 |
(not available) Microswitch |
|
013 |
N/A
|
Not available |
4 |
(not available) Nut hex |
|
015 |
N/A
|
Not available |
2 |
(not available) Washer flat |
|
016 |
999-0434
|
Screw 6 x 3/8 pan head phillips |
2 |
|
|
017 |
N/A
|
Not available |
1 |
(not available) Cord set |
|
018 |
175-0918
|
Strain relief (OBSOLETE) |
1 |
|
|
019 |
N/A
|
Not available |
1 |
(not available) Strain relief nut |
|
020 |
N/A
|
Not available |
1 |
(not available) Handle cord hook |
|
021 |
N/A
|
Not available |
3 |
(not available) Screw set |
|
022 |
N/A
|
Not available |
1 |
(not available) Collar handle |
|
023 |
175-3435
|
Washer 25/64 x 3/4d x 1/16 nylon |
1 |
|
|
024 |
175-0920
|
Handle adjustment tri-nut (OBSOLETE) |
1 |
|
|
025 |
N/A
|
Not available |
1 |
(not available) Strain relief |
|
026 |
N/A
|
Not available |
1 |
(not available) Uni-cord cord set |
|
027 |
N/A
|
Not available |
1 |
(not available) Washer interlocking teeth lock |
|
028 |
N/A
|
Not available |
1 |
(not available) Screw flat |
|
029 |
N/A
|
Not available |
1 |
(not available) Handle box cover |
|
030 |
N/A
|
Not available |
1 |
(not available) Tennant trend decal |
|
031 |
N/A
|
Not available |
1 |
(not available) Caplug |
|
032 |
N/A
|
Not available |
1 |
(not available) Time delay fuse decal |
|
034 |
N/A
|
Not available |
4 |
(not available) Screw pan head phillips |
|
035 |
175-0921
|
Wire tie |
2 |
|
|
036 |
175-0922
|
Flag terminal (OBSOLETE) |
1 |
|
|
037 |
175-0923
|
Male terminal |
1 |
|
|
038 |
175-0924
|
#10 ring terminal |
1 |
|
|
039 |
N/A
|
Not available |
1 |
(not available) Female terminal |
|
040 |
N/A
|
Not available |
1 |
(not available) Female terminal |
|
041 |
N/A
|
Not available |
1 |
(not available) Handle weldment |
|
042 |
N/A
|
Not available |
1 |
(not available) Carriage screw |
|
043 |
175-0925
|
Rubber edging 5 inch (OBSOLETE) |
1 |
|
|
044 |
N/A
|
Not available |
1 |
(not available) Rubber edging |
|
045 |
N/A
|
Not available |
1 |
(not available) Wire assembly jumper |
|
046 |
175-0926
|
14 amp circuit breaker (OBSOLETE) |
1 |
|
|
