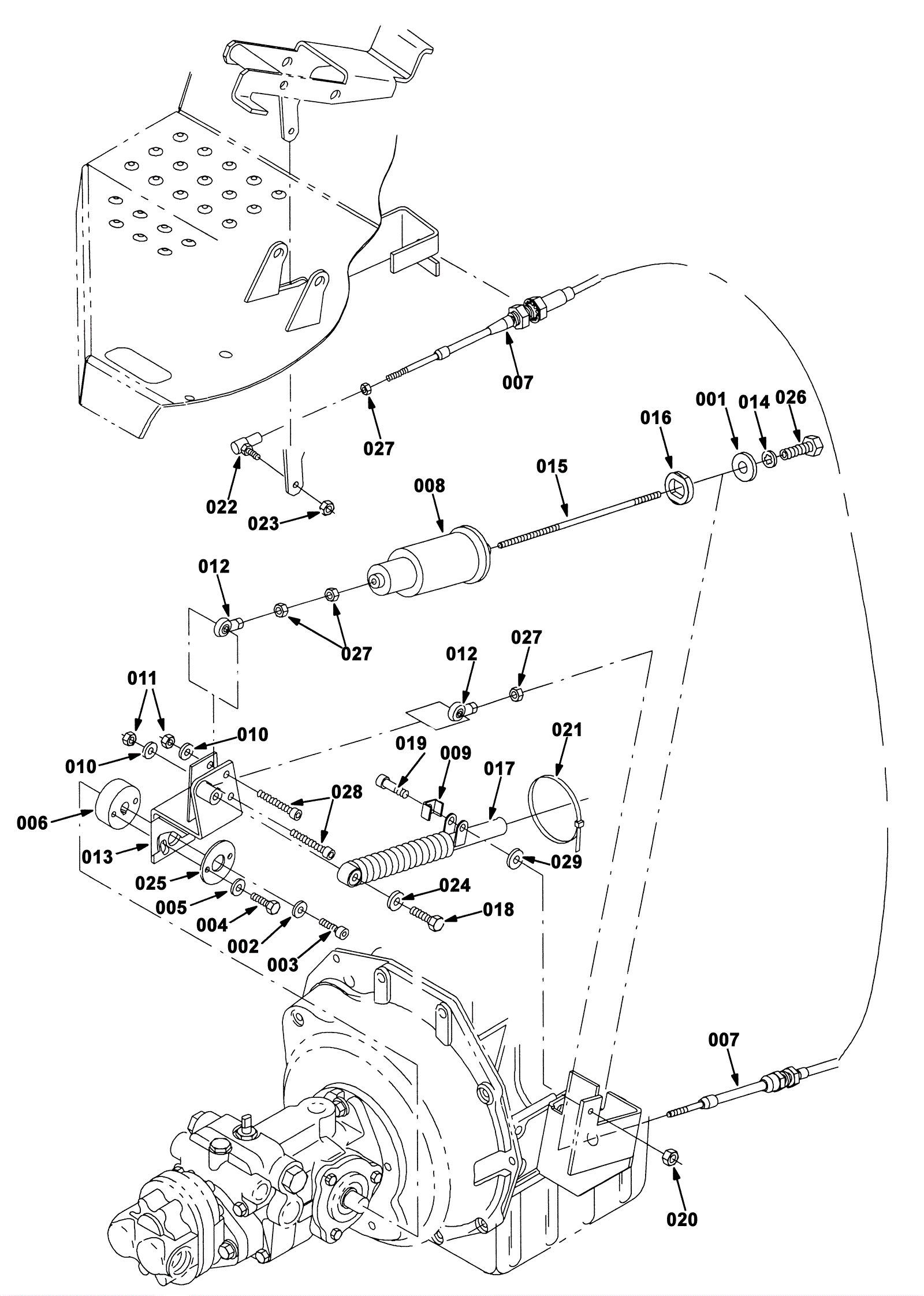

4300 ATLV Hydraulic Pump Linkage Group

#PartDescriptionPriceReqNotesAvailability
001 275-0710 Flat washer $3.96 1 usually ships 5-16 days
002 175-7187 WASHER, FLAT, 0.33B 0.75D .18, STL, PL (Tennant Industrial) $11.19 1 usually ships 1-5 days
003 175-7156 SCREW, SOC, .31-24 X 0.75, AL (Tennant Industrial) $4.84 1 usually ships 1-5 days
004 275-3112 SCREW, HEX, M8 X 1.25 X 30, 10.9 (Tennant Industrial) $14.86 2 usually ships 1-5 days
005 999-0105 Washer 5/16 external star lock zinc plated $0.99 2 ships same day
006 175-7155 HUB, MTG, ARM, CNTRL, PINTLE (Tennant Industrial) $38.91 1 usually ships 1-5 days
007 275-3113 CABLE, PUSH / PULL, 077.0L .25-28/.25-28 (Tennant Industria $443.22 1 usually ships 1-5 days
008 N/A Not available Call for price 1 usually ships 3-26 days
009 275-3114 BRACKET, RETAINER, SAFETY (Tennant Industrial) $16.70 1 usually ships 1-5 days
010 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
011 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
012 175-7212 ROD-END, 0.25-28RH FEM 0.25B [TEFLON] (Tennant Industrial) $67.30 2 usually ships 1-5 days
013 275-3115 Propel linkage bracket assembly (OBSOLETE) Call for price 1 usually ships 1-5 days
014 275-3116 WASHER, LOCK, INT, 0.62 (Tennant Industrial) $1.80 1 usually ships 1-5 days
015 175-8134 ROD, THRD (Tennant Industrial) $43.59 1 usually ships 1-5 days
016 175-7193 SPACER (Tennant Industrial) $18.20 1 usually ships 1-5 days
017 275-3117 SHOCK ABSORBER, 2.3 STRK (Tennant Industrial) $174.18 1 usually ships 5-16 days
018 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 1 ships same day
019 175-3285 Bolt 1/4-20 x 5/16-1 shoulder $6.60 1 usually ships 1-5 days
020 999-0609 Nut 1/4-20 hex stainless steel $0.99 1 ships same day
021 175-2162 Nylon wire tie $2.42 1 usually ships 5-16 days
022 175-3302 Balljoint 1/4-28 $9.13 1 usually ships 5-16 days
023 999-1201 Nut 1/4-28 nylon insert lock hex stainless steel $0.99 1 ships same day
024 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 ships same day
025 175-7195 WASHER, FLAT, 0.77B 2.00D .12, W/2 HOLE (Tennant Industrial $9.52 1 usually ships 1-5 days
026 175-7191 SCREW, HEX .62-18 X 0.75, SPCL (Tennant Industrial) $51.10 1 usually ships 1-5 days
027 999-0651 Nut 1/4-28 hex stainless steel $0.99 4 ships same day
028 275-3118 SCREW, SOC, .25-20 X 2.25, AL (Tennant Industrial) $6.51 2 usually ships 1-5 days
029 175-2896 Washer 5/16 $3.30 1 usually ships 5-16 days
