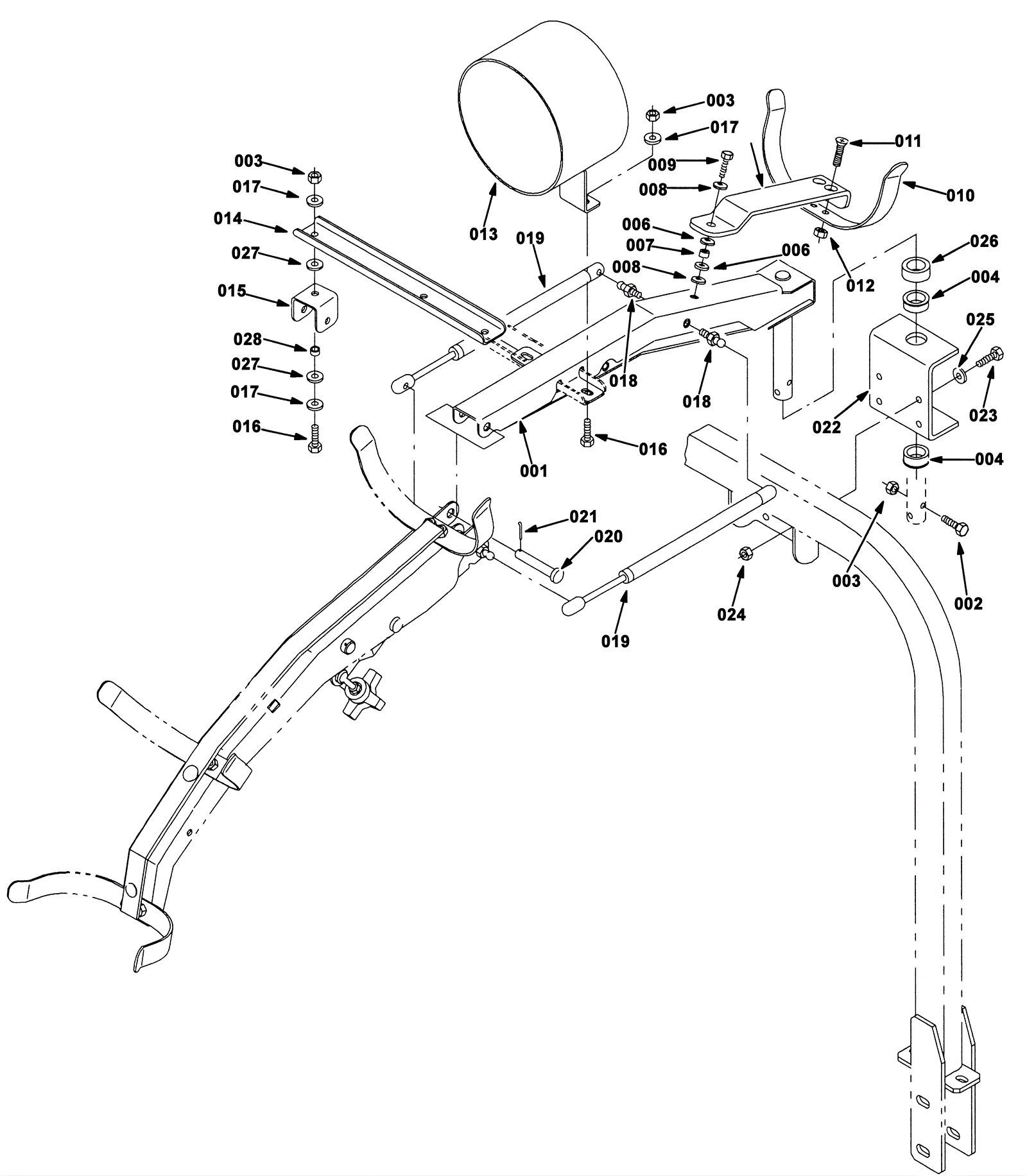

4300 ATLV Rear Vacuum Support Arm Group

#PartDescriptionPriceReqNotesAvailability
001 275-3053 BRACKET, MTG, ARM, REAR, VACUUM (Tennant Industrial) $736.48 1 usually ships 1-5 days
002 175-3436 Bolt 8mm-1.25 x 40mm hex head $4.09 1 usually ships 1-5 days
003 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 3 ships same day
004 275-3054 BUSHING, FLNG, 1.00B 1.13D 0.50L (Tennant Industrial) $22.67 2 usually ships 10-16 days
005 275-3055 BRACKET, MTG, HOSE, VACUUM, REAR (Tennant Industrial) $59.18 1 usually ships 1-5 days
006 175-7812 Washer flat $4.88 2 ships same day
007 175-2263 Sleeve $3.83 1 usually ships 10-16 days
008 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 usually ships 12-18 days
009 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
010 275-3042 PLATE, BENT (Tennant Industrial) $76.35 1 usually ships 1-5 days
011 999-1648 Screw M8-1.25 x 20mm socket head stainless steel $2.07 2 usually ships 12-18 days
012 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
013 275-3056 TUBE WLDT, STR, 8.0D (Tennant Industrial) $313.23 1 usually ships 1-5 days
014 275-3057 PLATE, BRACKET (Tennant Industrial) $53.51 1 usually ships 1-5 days
015 275-3058 PLATE, BENT (Tennant Industrial) $39.34 1 usually ships 1-5 days
016 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 3 ships same day
017 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 usually ships 12-18 days
018 175-0761 Gas spring ball stud $8.14 2 usually ships 10-16 days
019 275-3059 GASSPRING, 90LB, 6.0STRK (Tennant Industrial) $112.69 2 usually ships 10-16 days
020 275-3047 PIN, CLEVIS, 0.50D X 2.62L (Tennant Industrial) $12.84 1 usually ships 1-5 days
021 175-3281 Cotter pin $3.04 1 usually ships 10-16 days
022 275-3060 BRACKET, MTG, ARM PIVOT (Tennant Industrial) $54.01 1 usually ships 1-5 days
023 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 4 ships same day
024 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 ships same day
025 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
026 275-3061 TUBE, 1.03ID 1.50OD 00.6L, STL (Tennant Industrial) $33.51 1 usually ships 1-5 days
027 175-7812 Washer flat $4.88 1 ships same day
028a 275-4699 Paper filter bags (package of 10) $21.23 1 usually ships 10-16 days
028b 991-9015 Paper vacuum bags (pkg of 10) (OBSOLETE) $12.77 1 (NON-OEM) usually ships 14-32 days
