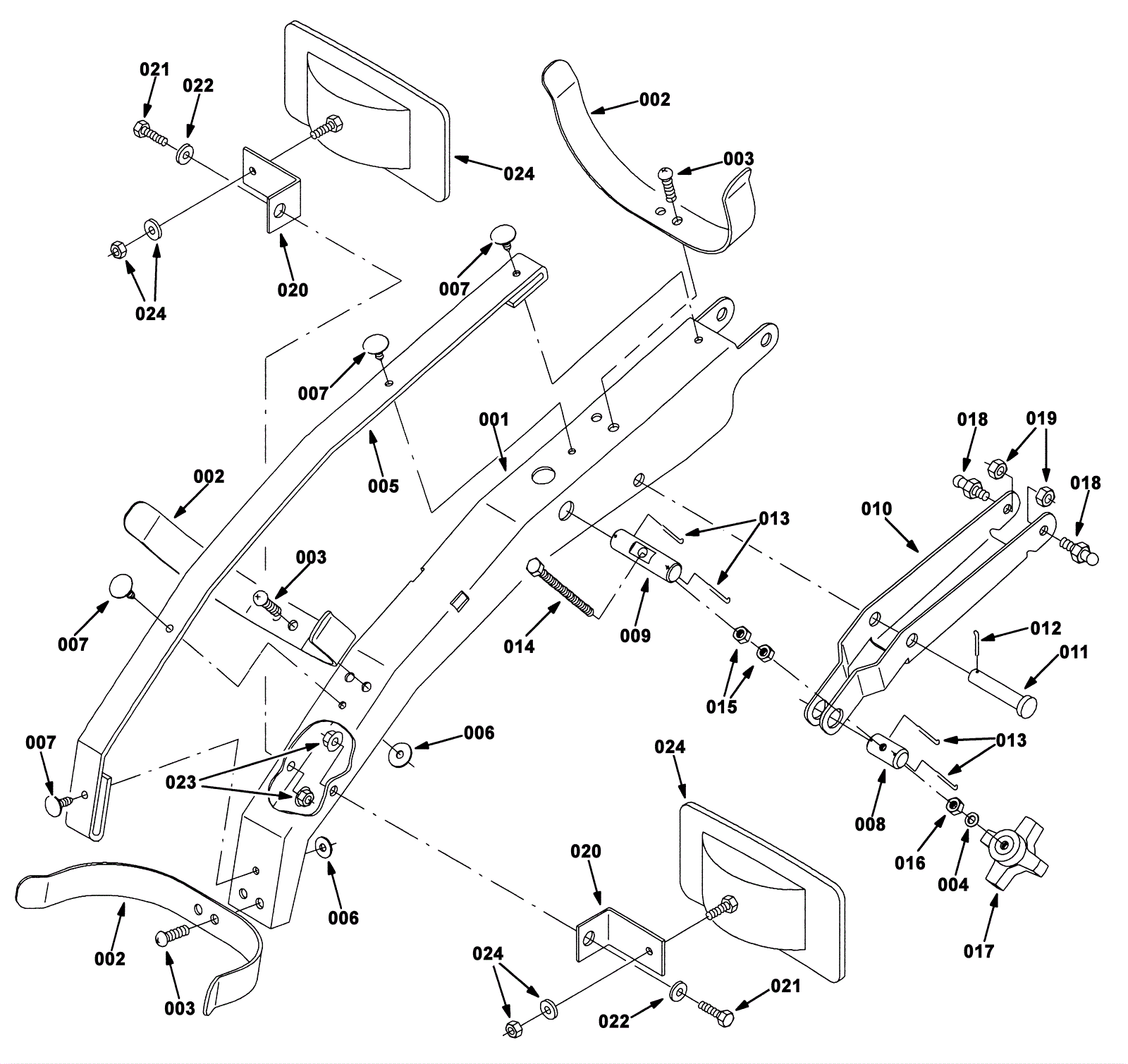

4300 ATLV Front Vacuum Support Arm Group

#PartDescriptionPriceReqNotesAvailability
001 275-3041 PLATE, BENT, GAS SPRING (Tennant Industrial) $355.71 1 usually ships 1-5 days
002 275-3042 PLATE, BENT (Tennant Industrial) $74.98 3 usually ships 1-5 days
003 175-3202 Screw M8-1.25 x 20mm $3.30 6 usually ships 5-16 days
004 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 ships same day
005 275-3043 STRIP, RBR, 0.13 02.00W 36.0L, 6/0.4H (Tennant Industrial) $23.38 1 usually ships 1-5 days
006 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
007 275-0357 PLUG, HOLE, RND, 0.28H 1.3L, BRB, NYL $3.30 4 usually ships 1-5 days
008 275-3044 PIN, 0.75D 01.5L, 2/.10H, 2CHAM, .31-18 (Tennant Industrial $65.80 1 usually ships 5-16 days
009 275-3045 PIN, ADJ, 0.75D 03.0L (Tennant Industrial) $116.23 1 usually ships 5-16 days
010 275-3046 PLATE, BENT (Tennant Industrial) $76.32 1 usually ships 1-5 days
011 275-3047 PIN, CLEVIS, 0.50D X 2.62L (Tennant Industrial) $12.53 1 usually ships 1-5 days
012 175-3281 Cotter pin $2.42 1 usually ships 5-16 days
013 275-3048 Cotter pin $2.86 4 usually ships 1-5 days
014 275-3049 SCREW, HEX, .31-18 X 4.50, FL (Tennant Industrial) $9.02 1 usually ships 5-16 days
015 275-2899 NUT, HEX, STD, .31-18 (Tennant Industrial) $3.67 2 usually ships 5-16 days
016 275-3050 NUT, HEX, FLNG, .31-18, LRG (Tennant Industrial) $4.18 1 usually ships 5-16 days
017 175-2208 Plastic star knob $3.96 1 ships same day
018 175-0761 Gas spring ball stud $7.92 2 usually ships 5-16 days
019 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
020 275-3051 ANGLE, MTG, STL, .12 1.6 1.4 01.0L (Tennant Industrial) $44.76 2 usually ships 1-5 days
021 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
022 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
023 999-0665 Nut M8-1.25 flange lock $0.99 2 ships same day
024 275-3052 MIRROR, CONVEX, 06.7 X 06.2 (Tennant Industrial) $118.24 2 usually ships 1-5 days
