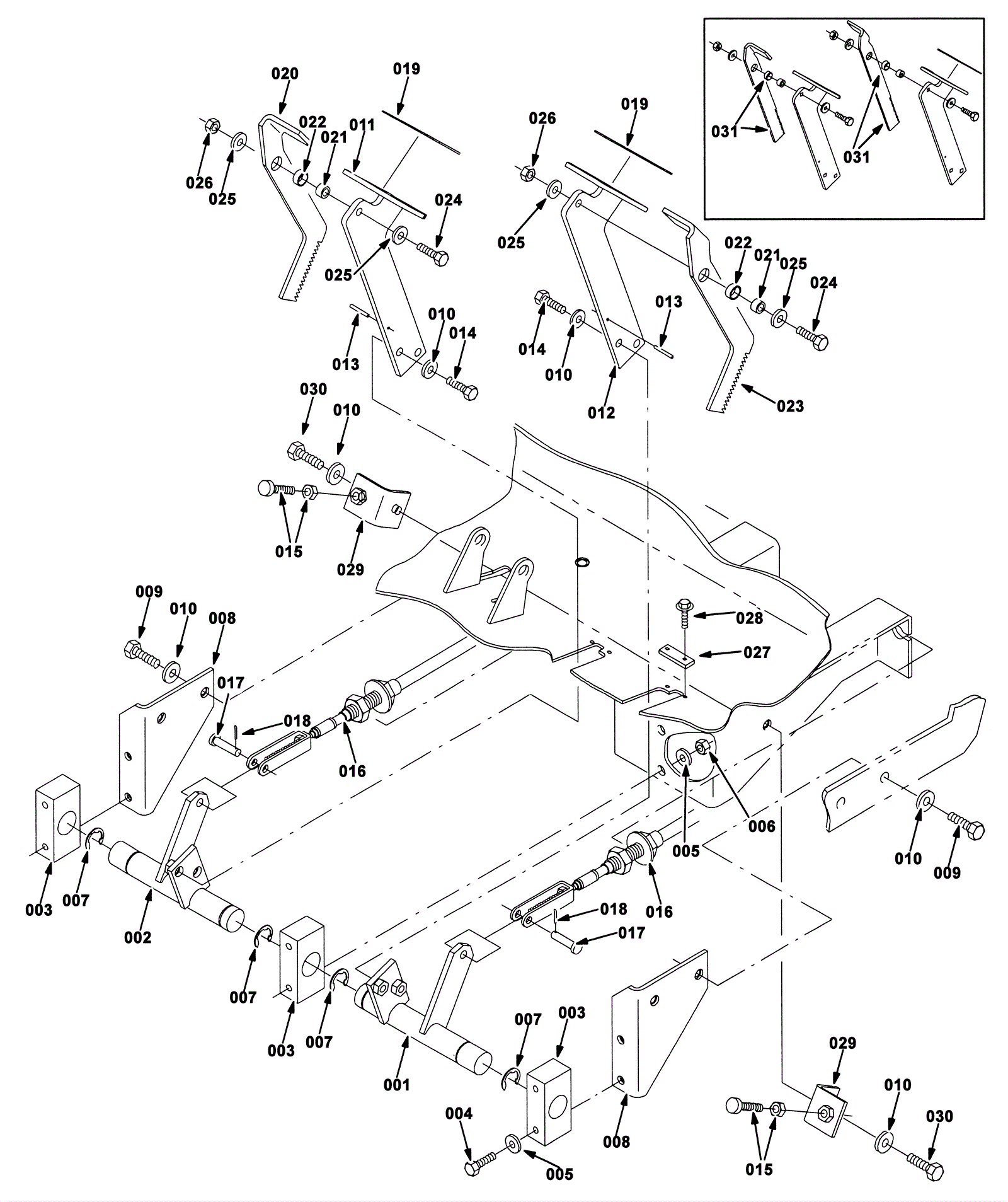

4300 ATLV Brake Pedals Group

#PartDescriptionPriceReqNotesAvailability
001 275-2959 BRAKE WLDT, CROSS SHAFT, LH (Tennant Industrial) $136.86 1 usually ships 10-16 days
002 275-2960 BRAKE WLDT, CROSS SHAFT, RH (Tennant Industrial) $139.69 1 usually ships 1-5 days
003 275-2961 BEARING, PILLOWBLOCK, 1.02B [SOLID PYE] (Tennant Industrial $66.18 3 usually ships 10-16 days
004 175-3400 Bolt M6-1 x 55mm hex head stainless steel $5.28 6 usually ships 1-5 days
005 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
006 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
007 175-6766 RING, RETAINING, EXT, 0.75D (Tennant Industrial) $4.17 4 usually ships 1-5 days
008 275-2962 BRACKET, ANGLE, MTG, BRAKE (Tennant Industrial) $61.85 2 usually ships 1-5 days
009 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 4 ships same day
010 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 10 ships same day
011 275-2963 PEDAL WLDT, BRAKE, RH (Tennant Industrial) $37.24 1 usually ships 1-5 days
012 275-2964 PEDAL WLDT, BRAKE, LH (Tennant Industrial) $60.68 1 usually ships 1-5 days
013 175-7138 Pin $4.49 2 usually ships 1-5 days
014 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 4 ships same day
015 275-2965 SPINDLE, ADJUSTMENT (Tennant Industrial) $13.34 2 usually ships 1-5 days
016 275-2966 CABLE, PULL, 074.0L, .3CLEVIS /.3CLEVIS (Tennant Industrial $395.41 2 usually ships 1-5 days
017 175-3351 Clevis pin $4.49 2 ships same day
018 175-6176 Cotter pin $3.30 2 ships same day
019 275-2967 TREAD, NON-SKID, PEDAL, BRAKE (Tennant Industrial) $6.67 2 usually ships 1-5 days
020 275-2968 PEDAL, BRAKE, STOP / PARKING, RH (Tennant Industrial) $134.69 1 usually ships 1-5 days
021 175-2263 Sleeve $4.22 2 usually ships 10-16 days
022 175-6830 BUSHING, SLEEVE, 0.50B 0.59D 0.25L, OIB (Tennant Industrial $12.34 2 usually ships 1-5 days
023 275-2969 PEDAL, BRAKE, STOP / PARKING, LH (Tennant Industrial) $134.69 1 usually ships 1-5 days
024 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 2 ships same day
025 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
026 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
027 275-2973 SPRING, FLAT, .06, 0.75W X 01.5L, 2/.25H (Tennant Industria $12.67 2 usually ships 1-5 days
028 999-1228 Screw M5-.8 x 10mm hex head stainless steel $0.99 4 ships same day
029 275-2971 ANGLE, MTG, STL, .18 1.8 1.5 01.5L (Tennant Industrial) $18.20 2 usually ships 1-5 days
030 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
031 275-2972 BRAKE KIT, PARKING, STOP (Tennant Industrial) $258.05 1 usually ships 1-5 days
