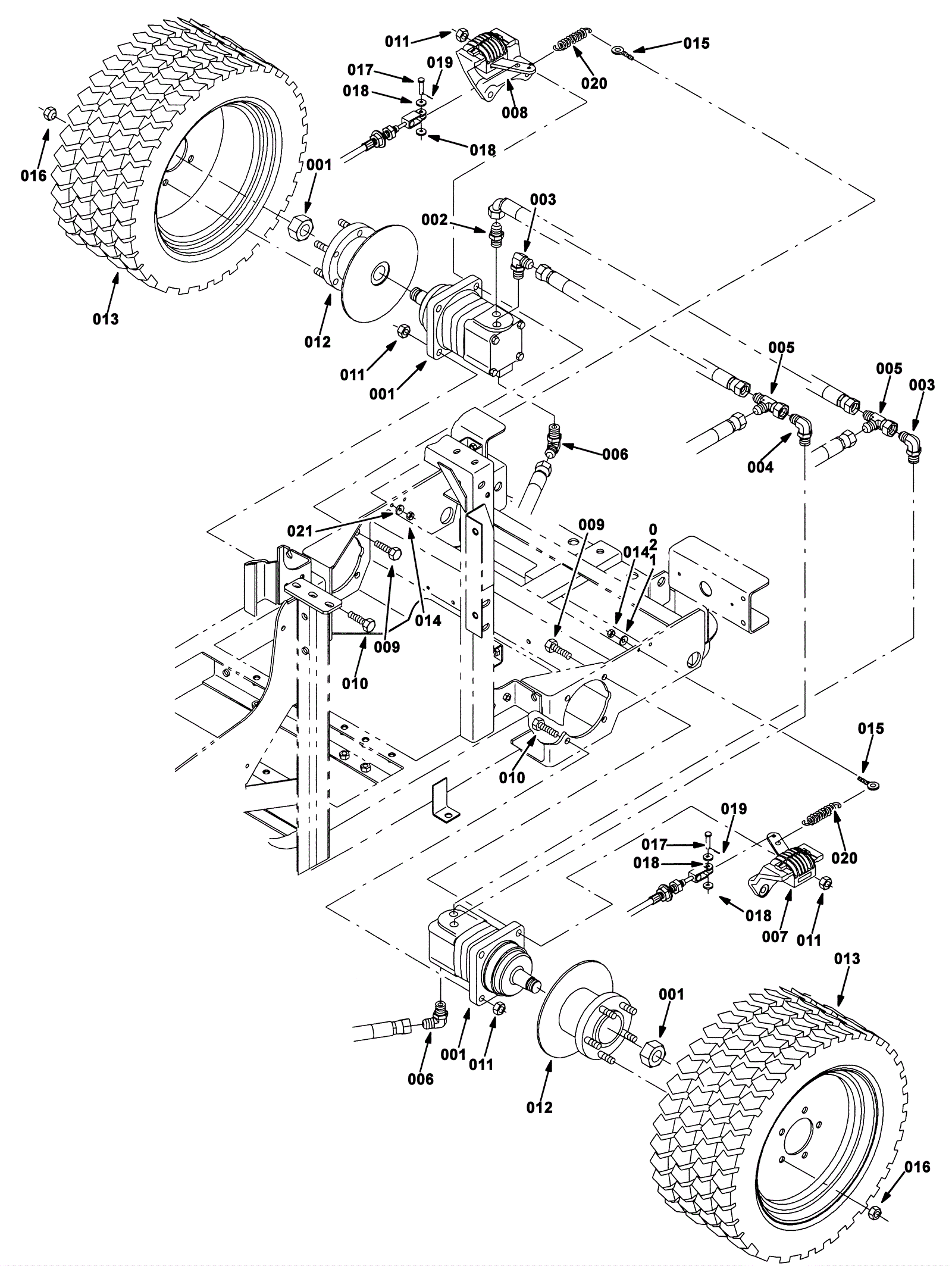

4300 ATLV Rear Drive Wheels Group

#PartDescriptionPriceReqNotesAvailability
001 275-2947 MOTOR, HYD, GEAR, INT 08.0 BI-DIR 3000 (Tennant Industrial) $2,794.73 2 usually ships 1-5 days
002 275-2948 FITTING, HYD, STR, JM10/OM10 (Tennant Industrial) $11.50 1 usually ships 1-5 days
003 275-2949 FITTING, HYD, E90, JM10/OM10 (Tennant Industrial) $18.17 2 usually ships 1-5 days
004 275-2950 FITTING, HYD, E90, JM10/OM10, LONG (Tennant Industrial) $161.87 1 usually ships 1-5 days
005 275-2951 FITTING, HYD, TEE, JF10/JM10/JM10, RUN (Tennant Industrial) $40.67 2 usually ships 1-5 days
006 175-6919 Elbow fitting $14.30 2 usually ships 10-16 days
007 275-2952 Left brake assembly $121.66 1 usually ships 1-5 days
008 275-2953 BRAKE ASSY, DISC, HYD, 08.3D .19T RH (Tennant Industrial) $395.58 1 usually ships 10-16 days
009 175-6824 Screw M12-1 3/4 x 60mm hex $4.88 4 usually ships 1-5 days
010 275-2834 SCREW, HEX, M12 X 1.75 X 50, 8.8 (Tennant Industrial) $6.17 4 usually ships 1-5 days
011 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 8 ships same day
012 275-2955 HUB ASSY, WHEEL, 5 BOLT 4.50BC, W/ DISC (Tennant Industrial $531.27 2 usually ships 1-5 days
013 275-2956 TIRE ASSY, PNEU, 23 X 8.5-12 4.5BC 5BOLT (Tennant Industria $480.43 2 usually ships 10-16 days
013 275-2957 WHEEL, 12.0D X 7.0 4.5BC/5B (Tennant Industrial) $206.54 1 usually ships 1-5 days
013 275-2958 TIRE, PNEU, 23X8.5X12, 04PLY (Tennant Industrial) $347.24 1 usually ships 1-5 days
014 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
015 N/A Not available Call for price 2 usually ships 3-26 days
016 175-6797 NUT, WHEEL, .50-20 X 60 ANGLE (Tennant Industrial) $5.00 10 usually ships 10-16 days
017 175-0655 Clevis pin $4.09 2 usually ships 10-16 days
018 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
019 175-6176 Cotter pin $3.04 2 ships same day
020 175-6921 Extension spring $11.22 2 usually ships 10-16 days
021 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
