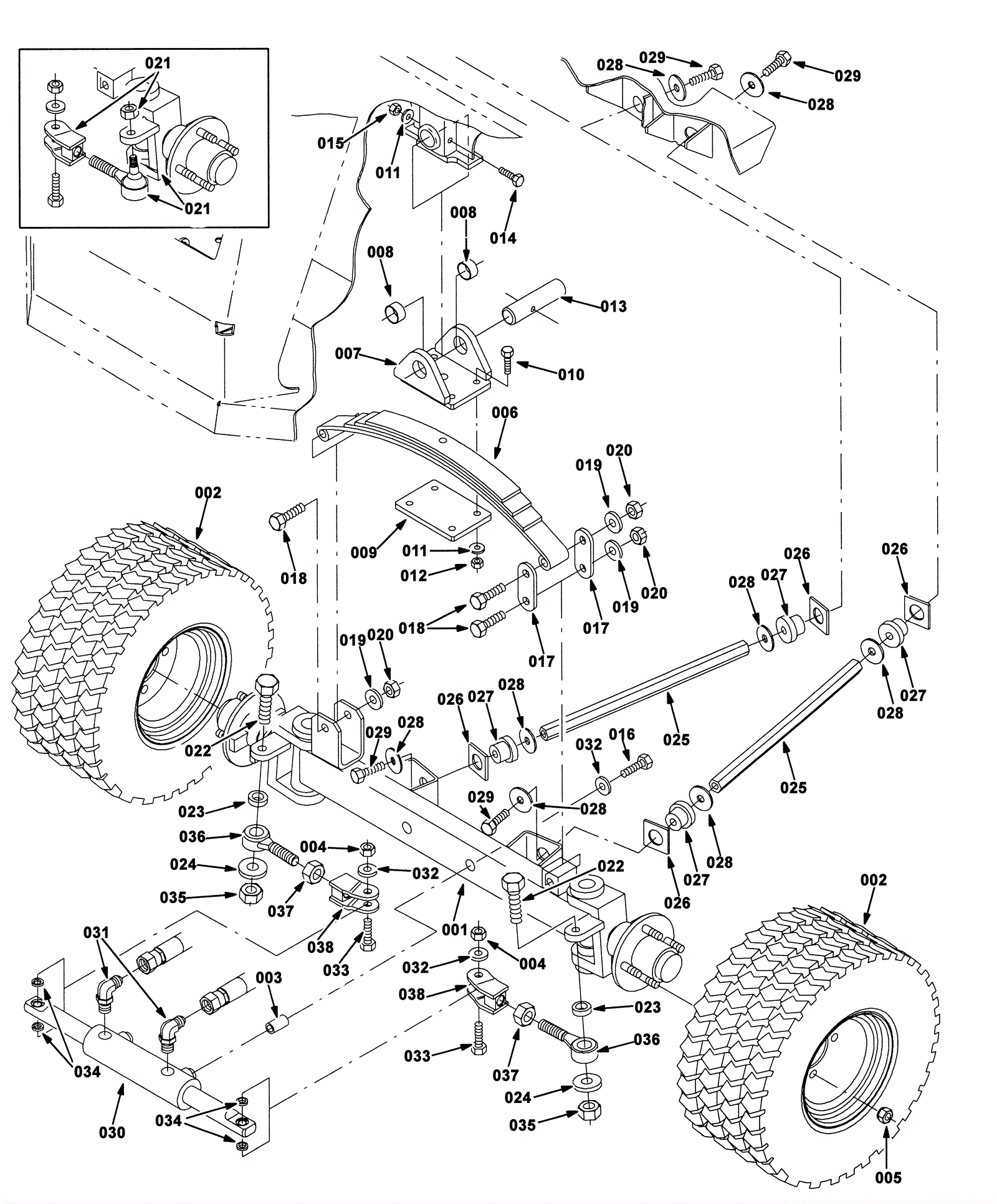

4300 ATLV Front Axle Group

#PartDescriptionPriceReqNotesAvailability
001 275-2917 AXLE ASSY, WHEEL, FRONT, STEERING (Tennant Industrial) $3,550.75 1 usually ships 1-5 days
002 275-2918 TIRE ASSY, PNEU, 18 X 8.5 4.0BC 4BOLT (Tennant Industrial) $276.72 1 usually ships 5-16 days
002 275-2919 RIM ASSY, 08.0 X 7.0, 4.0BC /4BOLT (Tennant Industrial) $116.40 1 usually ships 1-5 days
002 275-2920 TIRE, PNEU, 18X8.5X08, 04PLY (Tennant Industrial) $193.22 1 usually ships 1-5 days
003 275-2921 TUBE, 0.51ID 0.75OD 01.4L, STL, PL (Tennant Industrial) $23.05 1 usually ships 1-5 days
004 999-1208 Nut 1/2-13 nylon insert lock stainless steel $2.53 2 ships same day
005 175-6797 NUT, WHEEL, .50-20 X 60 ANGLE (Tennant Industrial) $4.51 2 usually ships 5-16 days
006 275-2916 SPRING, LEAF, 23.25L, FRONT, 0.323 (Tennant Industrial) $659.15 8 usually ships 1-5 days
007 275-2923 BRACKET WLDT, MTG, SPRING, AXLE, FRONT (Tennant Industrial) $275.05 1 usually ships 1-5 days
008 275-2924 BUSHING, FLNG, 1.25B 1.41D 0.63L (Tennant Industrial) $74.82 1 usually ships 1-5 days
009 275-2925 PLATE, MTG, SPRING (Tennant Industrial) $58.78 2 usually ships 1-5 days
010 275-2926 SCREW, HEX, M10 X 1.50 X 70, 8.8 (Tennant Industrial) $6.01 1 usually ships 1-5 days
011 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
012 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 5 ships same day
013 275-2946 PIN, 1.25D 04.8L, 1/.38H, STL (Tennant Industrial) $124.25 4 usually ships 1-5 days
014 275-0066 Screw M8-1.25 x 80mm hex head 8.8 $3.96 1 usually ships 1-5 days
015 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
016 175-6824 Screw M12-1 3/4 x 60mm hex $3.96 1 usually ships 1-5 days
017 275-2927 LINK, 0.25, 1.5W 03.8L, 1/0.7H 1/0.4H (Tennant Industrial) $63.79 2 usually ships 1-5 days
018 275-2928 BOLT, SHLD, .56D X 2.32, .44-20 (Tennant Industrial) $15.36 2 usually ships 1-5 days
019 999-0033 Washer 7/16 SAE flat $0.99 3 ships same day
020 275-2930 NUT, HEX, LOCK, .44-20, NL, SS (Tennant Industrial) $8.18 3 usually ships 1-5 days
021 275-2931 ROD-END KIT [SET2] (Tennant Industrial) $4,225.27 3 usually ships 1-5 days
022 275-2932 SCREW, HEX, .75-10 X 3.00, G5 (Tennant Industrial) $10.02 2 usually ships 1-5 days
023 275-2933 TUBE, 0.77ID 1.25OD 00.4L, STL, PL (Tennant Industrial) $27.05 2 usually ships 1-5 days
024 999-0630 Washer 3/4 SAE flat $0.99 2 ships same day
025 275-2934 BAR, HEX, STL 0.88, 16.3L M8 X 1.75 (Tennant Industrial) $143.95 2 usually ships 1-5 days
026 275-2935 SPACER, SQ, ISOLATOR, .18 1.9 x 1.9 1.1H (Tennant Industria $29.23 4 usually ships 1-5 days
027 175-6823 ISOLATOR, VIB, .50D (Tennant Industrial) $54.61 4 usually ships 1-5 days
028 175-2188 Washer $3.30 8 usually ships 5-16 days
029 275-2936 SCREW, HEX, M12 X 1.75 X 50, SS (Tennant Industrial) $9.69 4 usually ships 1-5 days
030 275-2937 CYLINDER KIT (Tennant Industrial) $2,865.89 1 usually ships 1-5 days
030 375-1607 CYLINDER, HYD, 2.0B 19.1L 04.75STRK 3000 (Tennant Industrial $2,104.53 1 usually ships 5-16 days
031 275-2939 FITTING, HYD, E90, JM04/OM06 (Tennant Industrial) $26.39 2 usually ships 1-5 days
032 999-0187 Washer 1/2 flat plain finish $0.99 4 ships same day
033 275-2940 SCREW, HEX, .50-13 X 2.25, G5 (Tennant Industrial) $7.35 2 usually ships 1-5 days
034 275-2941 TUBE, 0.51ID 0.75OD 00.2L, STL, PL (Tennant Industrial) $24.72 4 usually ships 1-5 days
035 275-2942 NUT, HEX, LOCK, .75-10, NL (Tennant Industrial) $6.01 2 usually ships 1-5 days
036 275-2943 ROD-END, 0.75-16RH MAL 0.75B [TEFLON] (Tennant Industrial) $138.94 2 usually ships 1-5 days
037 275-2944 NUT, HEX, JAM, .75-16 (Tennant Industrial) $5.01 2 usually ships 1-5 days
038 275-2944 NUT, HEX, JAM, .75-16 (Tennant Industrial) $5.01 2 usually ships 1-5 days
