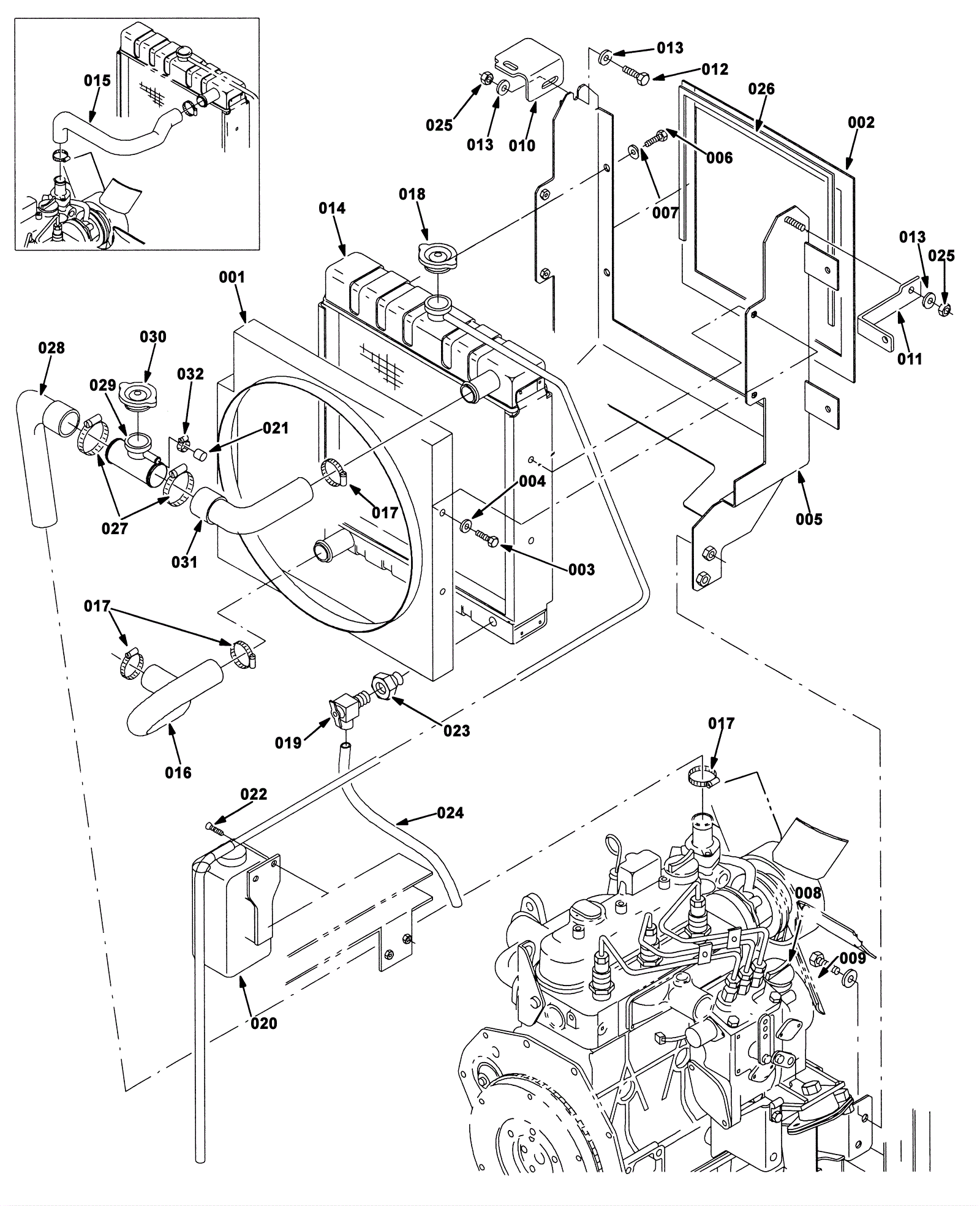

4300 ATLV Radiator Group

#PartDescriptionPriceReqNotesAvailability
001 275-2885 SHROUD ASSY, RADIATOR (Tennant Industrial) $274.38 1 usually ships 1-5 days
002 175-9189 Seal (Tennant Industrial) $27.39 1 usually ships 5-16 days
003 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
004 999-0006 Washer 3/16 flat zinc plated $0.99 4 ships same day
005 275-2886 BRACKET WLDT, MTG, RADIATOR (Tennant Industrial) $340.68 1 usually ships 1-5 days
006 175-6870 SCREW, HEX, .31-18 X 0.62, G5 (Tennant Industrial) $4.84 4 usually ships 1-5 days
007 N/A Not available Call for price 4 Washer usually ships 3-26 days
008 275-0025 Screw M10-1.5 x 25 hex head 8.8 $3.19 4 usually ships 5-16 days
009 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
010 275-2887 ANGLE, MTG, STL, .12 2.8 1.7 02.6L (Tennant Industrial) $27.39 1 usually ships 1-5 days
011 275-2879 BRACKET, ANGLE, BRACE, SPPT, RADIATOR (Tennant Industrial) $27.05 1 usually ships 1-5 days
012 999-0783 Screw M8-1.25 x 16mm hex head $0.99 2 ships same day
013 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
014 275-2888 RADIATOR ASSY (Tennant Industrial) $1,181.02 1 usually ships 1-5 days
015 275-2889 PARTS KIT, RADIATOR, REMOTE FILL (Tennant Industrial) $519.20 1 usually ships 1-5 days
016 275-2882 HOSE, COOLANT, MOLD, 1.00ID TO 1.00ID (Tennant Industrial) $44.09 1 usually ships 1-5 days
017 175-2254 Hose clamp $4.84 4 ships same day
018 275-6393 Radiator cap (Tennant Industrial) $18.20 1 usually ships 5-16 days
019 175-6869 FITTING, DRAINCOCK, E90, .25NPT (Tennant Industrial) $21.88 1 usually ships 1-5 days
020 175-6878 TANK, RECVY, COOLANT, 1.0QT (Tennant Industrial) $420.51 1 usually ships 1-5 days
021 175-6729 CAP, VYL, 0.47D 0.45L, BLK (Tennant Industrial) $5.68 1 usually ships 1-5 days
022 N/A Not available Call for price 2 Screw usually ships 3-26 days
023 275-2890 FITTING, BRS, STR, PF04/PM04 (Tennant Industrial) $7.52 1 usually ships 1-5 days
024a 175-2222 PVC hose $20.90 1 (OEM) ships same day
024b 991-1409 Clear vinyl tubing 9/16 OD x 3/8 ID inch (sold by the inch) $0.55 9 in (NON-OEM) usually ships 17-33 days
025 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
026 175-2323 Rubber seal $18.59 1 usually ships 5-16 days
027 997-2000 Hose clamp $2.37 2 ships same day
028 275-2892 HOSE, RADIATOR, UPPER (Tennant Industrial) $47.93 1 usually ships 1-5 days
029 275-2893 TUBE, FILL, RADIATOR (Tennant Industrial) $307.61 1 usually ships 1-5 days
030 275-6393 Radiator cap (Tennant Industrial) $18.20 1 usually ships 5-16 days
031 275-2894 HOSE, RADIATOR, UPPER (Tennant Industrial) $38.74 1 usually ships 1-5 days
032 175-3594 Hose clamp $3.96 1 ships same day
