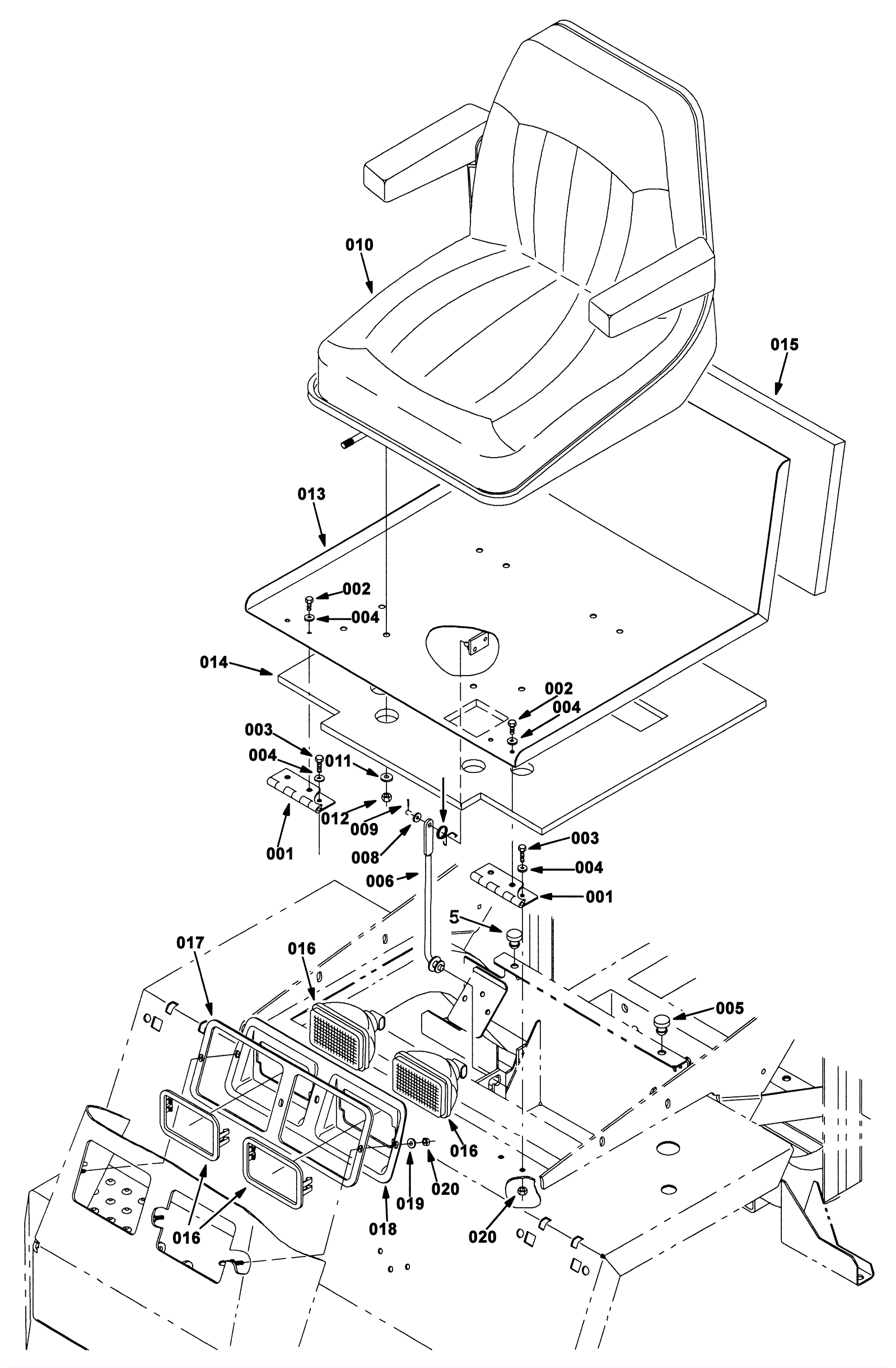

4300 ATLV Seat Support Group

#PartDescriptionPriceReqNotesAvailability
001 275-2781 HINGE, .25PIN .12 3.0W 04.5L, 4/0.30H (Tennant Industrial) $40.34 2 usually ships 1-5 days
002 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 4 ships same day
003 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
004 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
005 175-5941 BUMPER, RBR, 1.0D 0.69TH 0.50 TIP (Tennant Industrial) $6.33 2 usually ships 1-5 days
006 275-2794 ROD, PROP, SEAT (Tennant Industrial) $77.35 1 usually ships 1-5 days
007 175-0633 Spring $5.50 1 usually ships 10-16 days
008 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
009 175-6176 Cotter pin $3.30 1 ships same day
010 275-2784 SEAT, SUSPENSION [MICHIGAN #930] (Tennant Industrial) $931.36 1 usually ships 1-5 days
011 999-0024 Washer 5/16 flat stainless steel $1.34 4 usually ships 12-18 days
012 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
013a 275-2785 PLATE WLDT, SEAT, WHITE (Tennant Industrial) $1,137.73 1 usually ships 1-5 days
013b 275-2786 BRACKET, MTG, HINGE, WHITE (Tennant Industrial) $390.41 1 usually ships 1-5 days
014 275-2787 INSULATION, ACSTC, 0.5, 24.2 x 22.2 C-O (Tennant Industrial $76.35 1 usually ships 1-5 days
015 275-2788 INSULATION, ACSTC, 1.0, 24.4 X 11.8 (Tennant Industrial) $50.01 1 usually ships 1-5 days
016 275-2789 HEADLIGHT,12VDC[#0535200](Tennant Industrial)(OBSOLETE) $100.85 2 usually ships 10-16 days
016b 275-2790 LAMP, 12VDC (Tennant Industrial) $57.51 1 usually ships 1-5 days
016c 275-2791 LENS, CLR (Tennant Industrial) $49.01 1 usually ships 1-5 days
017 275-2792 SEAL, RBR, CLSD, 0.19, HEADLIGHT (Tennant Industrial) $14.34 1 usually ships 1-5 days
018 275-2793 PANEL, HEADLIGHT, POCKET (Tennant Industrial) $144.70 1 usually ships 1-5 days
019 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
020 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 7 ships same day
