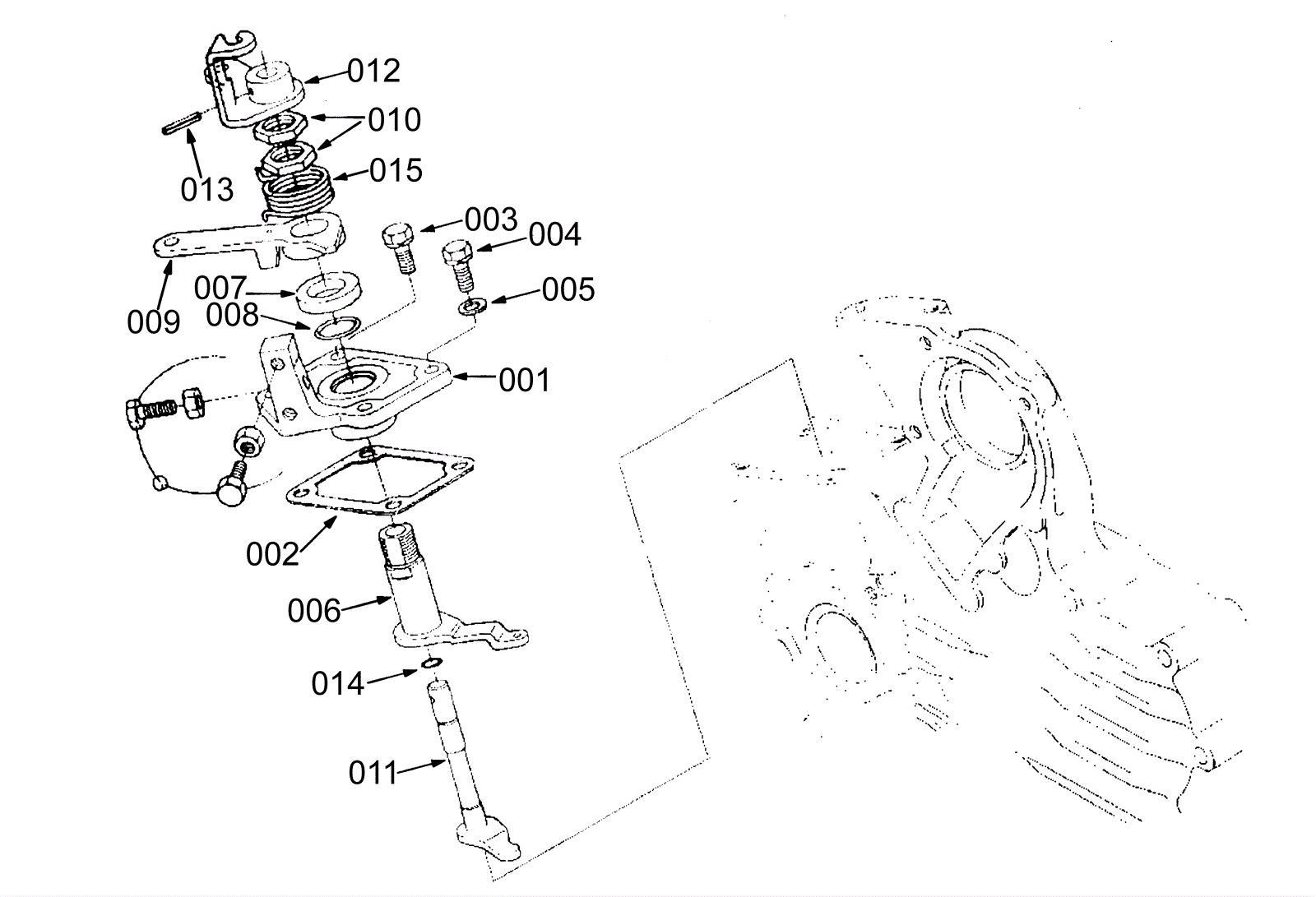

Speed Control Plate Group

#PartDescription ReqNotesAvailability
001 175-8449 VR, PLATE, CNTRL, SPD (Tennant Industrial) 1
002 175-8450 VR, GASKET, COVER, GOV [KU] (Tennant Industrial) 1
003 175-8342 VR, SCREW, HEX [KU] (Tennant Industrial) 2
004 175-8451 Bolt (OBSOLETE) 2
005 175-8330 VR, GASKET, F/ BOLT [KU] (Tennant Industrial) 2
006 175-8452 VR, LEVER, GOVNR (Tennant Industrial) 1
007 175-8453 Collar (OBSOLETE) 1
008 175-8454 O-ring (Tennant Industrial) 1
009 175-8455 Speed control lever (OBSOLETE) 1
010 175-8456 Nut (OBSOLETE) 2
011 175-8457 VR, SHAFT, LEVER (Tennant Industrial) 1
012 175-8458 VR, LEVER, STOP, ENG (Tennant Industrial) (OBSOLETE) 1
013 175-8459 VR, PIN, SPRING (Tennant Industrial) (OBSOLETE) 1
014 175-8460 VR, SEAL, ORG (Tennant Industrial) 1
015 175-8461 VR, SPRING, RETURN (Tennant Industrial) (OBSOLETE) 1
