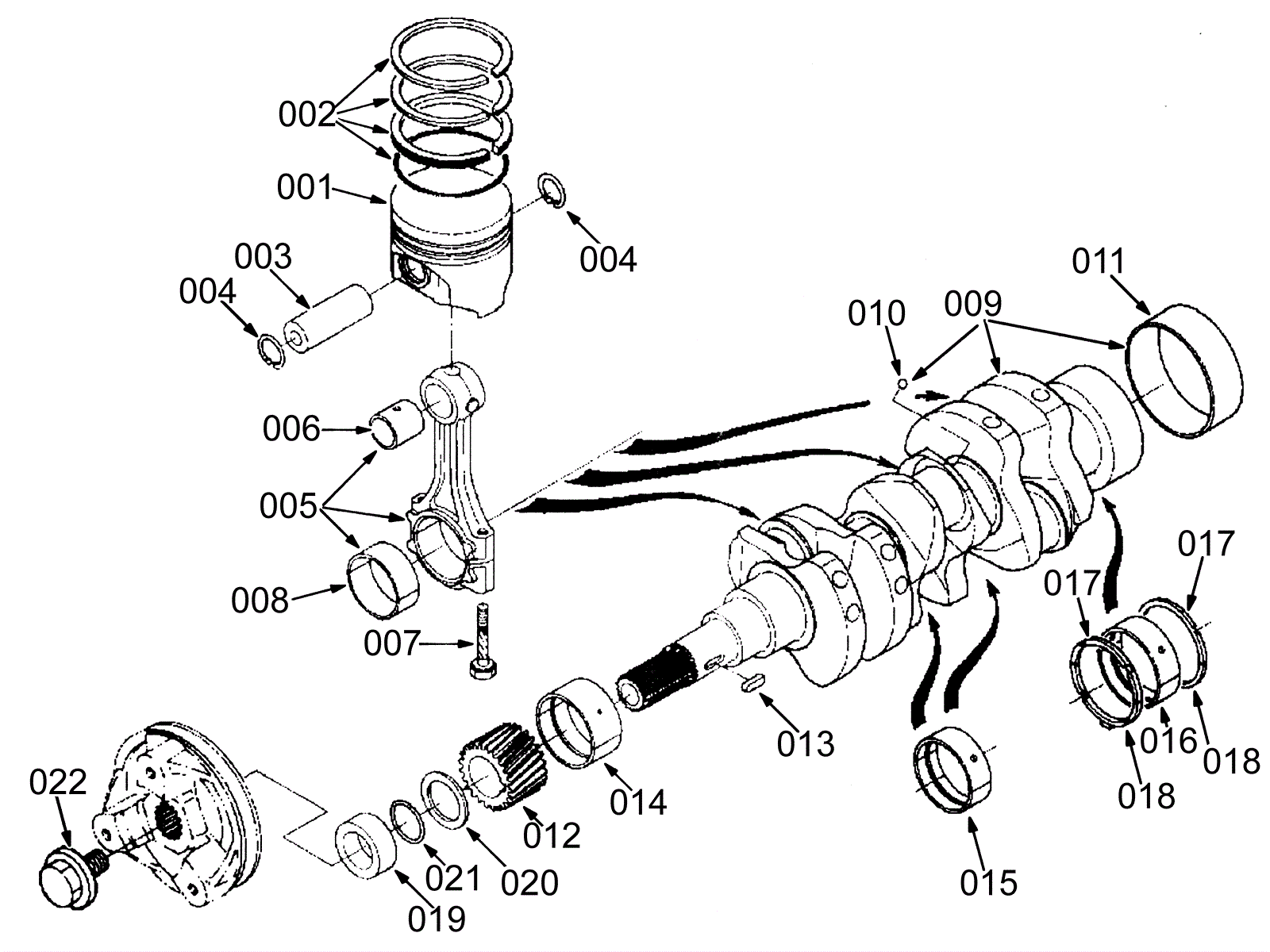

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
175-8381
|
VR, PISTON, STD (Tennant Industrial) |
3 |
|
|
001b |
175-8382
|
VR, PISTON [+0.25MM] (Tennant Industrial) |
3 |
|
|
002a |
175-8383
|
RING SET, PISTON, STD (Tennant Industrial) |
3 |
|
|
002b |
175-8384
|
RING SET, PISTON, .25MM (Tennant Industrial) (OBSOLETE) |
3 |
|
|
003 |
175-8385
|
VR, PIN, PISTON (Tennant Industrial) (OBSOLETE) |
3 |
|
|
004 |
N/A
|
Not available |
6 |
VR, CLIP (Tennant Industrial)
|
|
005 |
175-8387
|
VR, ROD ASSY, CONNECTING (Tennant Industrial) (OBSOLETE) |
3 |
|
|
006 |
175-8388
|
VR, BUSHING, PIN, PISTON (Tennant Industrial) (OBSOLETE) |
1 |
|
|
007 |
175-8389
|
VR, BOLT, ROD, CONNECTING [KU] (Tennant Industrial) |
2 |
|
|
008a |
175-8390
|
VR, BEARING, ROD, CONNECTING [-.2MM, KU] (Tennant Industria |
1 |
|
|
008b |
175-8391
|
Bearing (Tennant Industrial) (OBSOLETE) |
1 |
|
|
008c |
175-8392
|
VR, SHIM KIT, PIN, CRANK, STD (Tennant Industrial) |
1 |
|
|
009 |
175-8393
|
VR, CRANKSHAFT (Tennant Industrial) (OBSOLETE) |
1 |
|
|
010 |
175-8394
|
VR, BALL (Tennant Industrial) (OBSOLETE) |
3 |
|
|
011 |
N/A
|
Not available |
1 |
Sleeve |
|
012 |
175-8396
|
VR, GEAR, CSHFT [KU] (Tennant Industrial) (OBSOLETE) |
1 |
|
|
013 |
175-8397
|
VR, KEY (Tennant Industrial) (OBSOLETE) |
1 |
|
|
014a |
175-8398
|
VR, BEARING, CRANK, STD [KU] (Tennant Industrial) |
1 |
|
|
014b |
175-8399
|
VR, BEARING, CRANK, -.2MM [KU] (Tennant Industrial) |
1 |
|
|
014c |
175-8400
|
Bearing (Tennant Industrial) (OBSOLETE) |
1 |
|
|
015a |
175-8401
|
VR, BEARING, CRANK, -.2MM [KU] (Tennant Industrial) |
1 |
|
|
015b |
175-8402
|
Bearing (Tennant Industrial) (OBSOLETE) |
1 |
|
|
015c |
175-8403
|
VR, SHIM KIT, CSHFT, STD (Tennant Industrial) (OBSOLETE) |
1 |
|
|
016a |
175-8404
|
VR, BEARING, CRANK, -.4MM [KU] (Tennant Industrial) |
2 |
|
|
016b |
175-8405
|
Bearing (Tennant Industrial) (OBSOLETE) |
2 |
|
|
016c |
175-8406
|
VR, SHIM KIT, CSHFT, STD (Tennant Industrial) (OBSOLETE) |
2 |
|
|
017a |
175-8407
|
VR, BEARING, THRUST, STD [KU] (Tennant Industrial) |
2 |
|
|
017b |
175-8408
|
VR, BEARING, THRUST [+.2MM, KU] (Tennant Industrial) |
2 |
|
|
017c |
175-8409
|
Side skim kit 40mm (Tennant Industrial) (OBSOELTE) |
2 |
|
|
018a |
175-8410
|
VR, BEARING, THRUST, STD [KU] (Tennant Industrial) |
2 |
|
|
018b |
N/A
|
Not available |
2 |
Thrust bearing |
|
018c |
N/A
|
Not available |
2 |
Thrust bearing |
|
019a |
175-8413
|
VR, COLLAR, CRANK, FRONT [KU] (Tennant Industrial) |
1 |
|
|
020 |
175-8414
|
VR, SLINGER, OIL, ENG [KU] (Tennant Industrial) |
1 |
|
|
021 |
175-8415
|
VR, SEAL, ORG [KU] (Tennant Industrial) |
1 |
|
|
022 |
175-8416
|
VR, BOLT, HEX, CRANK [KU] (Tennant Industrial) |
1 |
|
|
