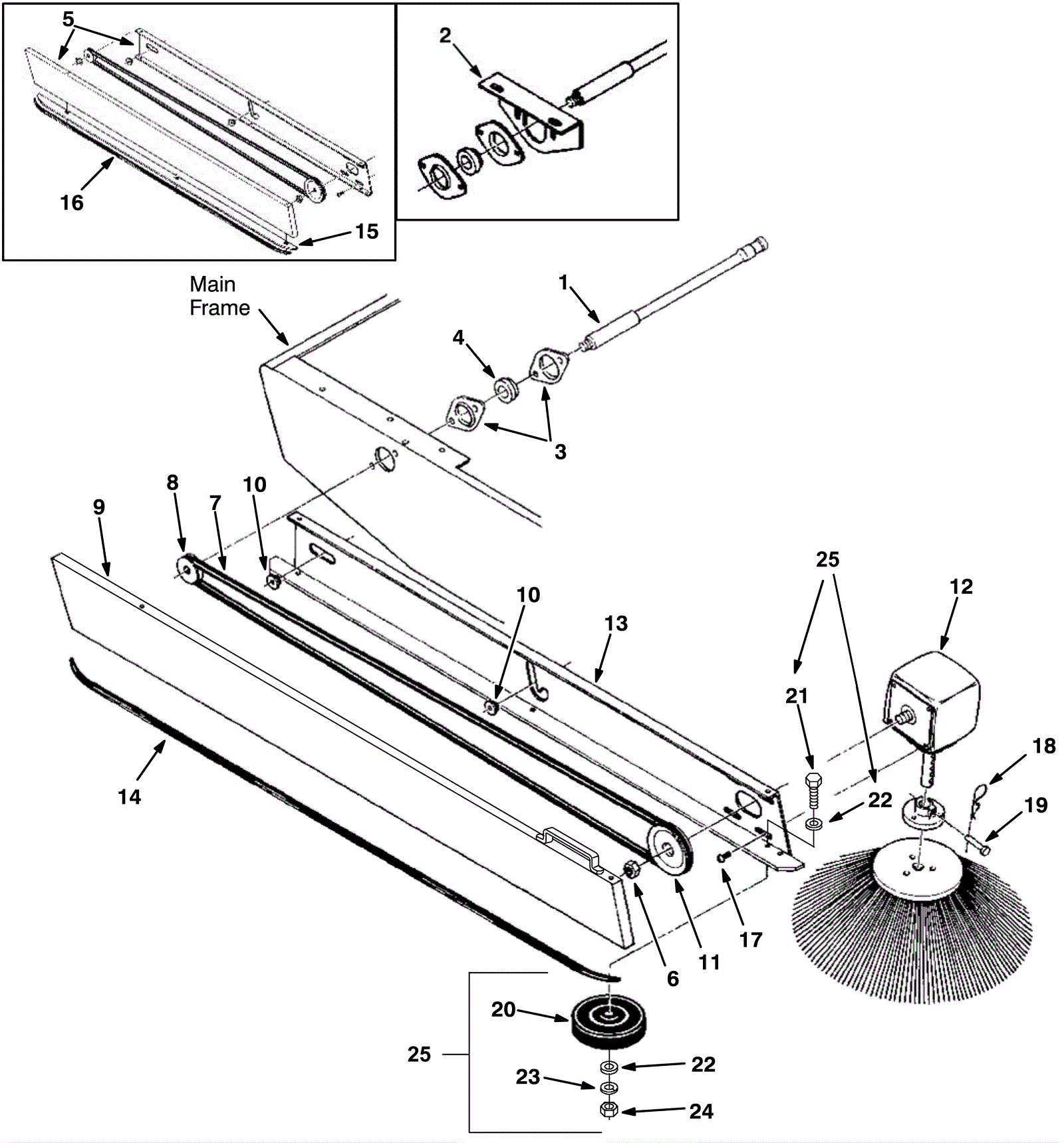

SCOUT 37B Side Brush Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-9160 Side brush drive shaft $311.60 1 usually ships 1-5 days
2 N/A Not available Call for price 1 Mounting bracket plate usually ships 3-26 days
3 175-9079 Bearing flange $11.90 2 usually ships 1-5 days
4 175-9080 Bearing with collar $54.20 1 usually ships 5-16 days
5 175-9162 Side brush arm $142.00 1 usually ships 1-5 days
6 999-0752 Nut 3/4-16 hex jam zinc plated $0.99 1 ships same day
7 175-0190 Belt $31.40 1 usually ships 5-16 days
8 175-9163 Sheave $54.70 1 usually ships 1-5 days
9 175-9164 Brush arm cover weldment $173.90 1 usually ships 1-5 days
10 175-9165 Bushing $8.90 2 usually ships 1-5 days
11 175-9166 Sheave $36.00 1 usually ships 1-5 days
12 175-9167 Side brush gearbox (OBSOLETE) $654.40 1 usually ships 1-5 days
13 175-9168 Side brush arm $66.20 1 usually ships 1-5 days
14 175-9169 Trim molding $38.50 1 usually ships 1-5 days
15 175-9170 Side brush bumper $157.60 1 usually ships 1-5 days
16 175-9171 Trim molding $49.30 1 usually ships 1-5 days
17 999-0395 Screw 1/4-20 x 5/8 button head socket plain finish $0.99 4 ships same day
18 175-7107 Cotter hair pin $2.20 1 usually ships 5-16 days
19 175-9172 PIN, CLEVIS, 0.25D X 1.25L (Tennant Industrial) $5.01 1 usually ships 1-5 days
20 175-9174 WHEEL, 04.0D 0.81W 0.25B (Tennant Industrial) $28.06 1 usually ships 5-16 days
21 999-0258 Bolt 1/4-20 x 2 hex head grade 5 zinc plated $0.99 1 ships same day
22 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
23 999-0238 Washer 1/4 internal star lock zinc plated $0.99 1 ships same day
24 999-0190 Nut 1/4-20 hex plain finish $0.99 1 ships same day
25 175-9173 Wheel assembly $39.30 1 (includes 20-24) usually ships 1-5 days
