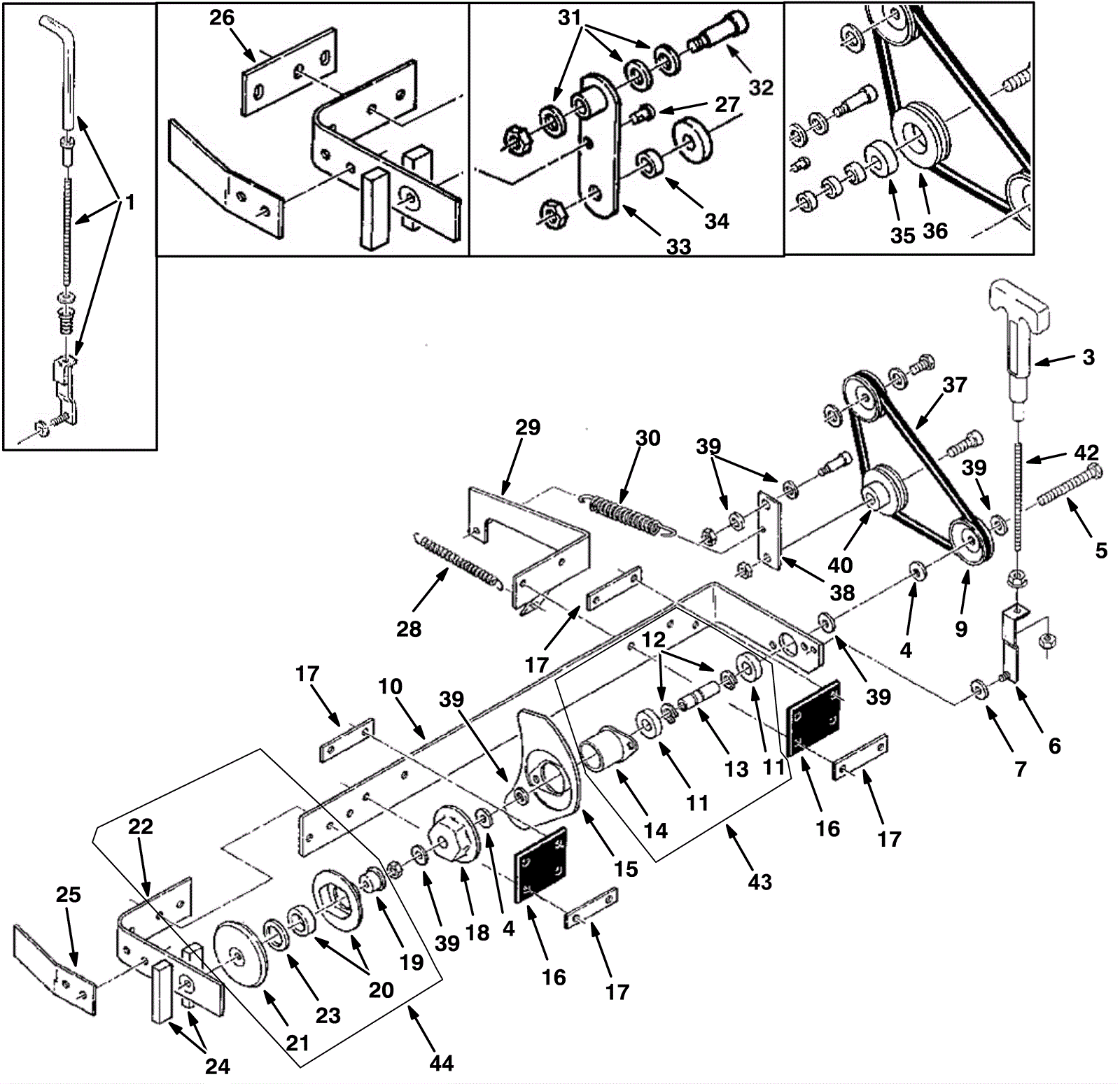

SCOUT 37B Brush Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-8940 Handle/bracket replacement kit $351.60 1 usually ships 1-5 days
2 175-8941 Flange bushing $17.60 1 usually ships 1-5 days
3 175-8942 Brush lift handle $43.20 1 usually ships 5-16 days
4 175-8943 Washer 3/8 lock internal-external $2.90 1 usually ships 5-16 days
5 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
6 175-8944 Brush lift weldment bracket $16.80 1 usually ships 1-5 days
7 175-8945 Washer 9/32 x 5/8 x 1/16 nylon $2.10 1 usually ships 1-5 days
8 175-4364 Compression spring $3.80 1 usually ships 5-16 days
9 175-8946 Sheave $26.50 1 usually ships 1-5 days
10 175-8947 Main drive brush arm $63.80 1 usually ships 1-5 days
11 175-2471 Ball bearing $17.10 2 ships same day
12 175-2472 Retaining ring $2.20 2 usually ships 5-16 days
13 175-8949 Shaft (OBSOLETE) $19.00 1 usually ships 1-5 days
14 175-8950 2 Hole flange bushing assembly $15.20 1 usually ships 1-5 days
15 175-8951 Drive flange cover $26.90 1 usually ships 1-5 days
16 175-8952 Polypropelene hinge $7.70 2 usually ships 1-5 days
17 175-8953 Steel strip $16.70 4 usually ships 1-5 days
18 175-8954 Brush tube drive cup $21.30 1 usually ships 5-16 days
19 175-8956 Sleeve $37.10 1 usually ships 1-5 days
20 175-8957 Brush cup and bearing assembly $69.80 1 usually ships 1-5 days
21 175-8958 Cup guard $11.80 1 usually ships 1-5 days
22 175-8959 Right hand main brush arm $49.30 1 usually ships 1-5 days
23 N/A Not available Call for price 1 Washer usually ships 3-26 days
24 175-8961 Rubber foam seal $24.20 2 usually ships 1-5 days
25 175-8962 Plate $218.90 1 usually ships 1-5 days
26 N/A Not available Call for price 1 (plate) usually ships 3-26 days
27 175-3344 Clevis pin $6.80 1 usually ships 5-16 days
28 175-8963 Extension spring $20.20 1 usually ships 1-5 days
29 175-8964 Spring mounting bracket $22.20 1 usually ships 1-5 days
30 175-6921 Extension spring $10.00 1 usually ships 5-16 days
31 N/A Not available Call for price 3 Washer usually ships 3-26 days
32 N/A Not available Call for price 1 Bolt usually ships 3-26 days
33 175-8967 Idler arm replacement kit $12.80 1 usually ships 1-5 days
34 N/A Not available Call for price 1 Sleeve usually ships 3-26 days
35 175-8969 Ball bearing $36.50 1 usually ships 1-5 days
36 175-8970 Idler replacement kit $89.80 1 usually ships 1-5 days
37 175-8971 V-Belt $29.90 1 usually ships 5-16 days
38 175-8972 IDLER ARM (Tennant Industrial) $22.88 1 usually ships 1-5 days
39 999-0024 Washer 5/16 flat stainless steel $1.34 6 ships same day
40 175-8973 Sheave $59.40 1 usually ships 1-5 days
41 175-8974 Washer flat $3.24 1 usually ships 1-5 days
42 175-8975 Full thread rod $15.00 1 usually ships 1-5 days
43 175-8948 Shaft $114.80 1 (includes 11-14) usually ships 1-5 days
44 175-8955 Main brush arm assembly $322.30 1 (inclues 19-23) usually ships 1-5 days
