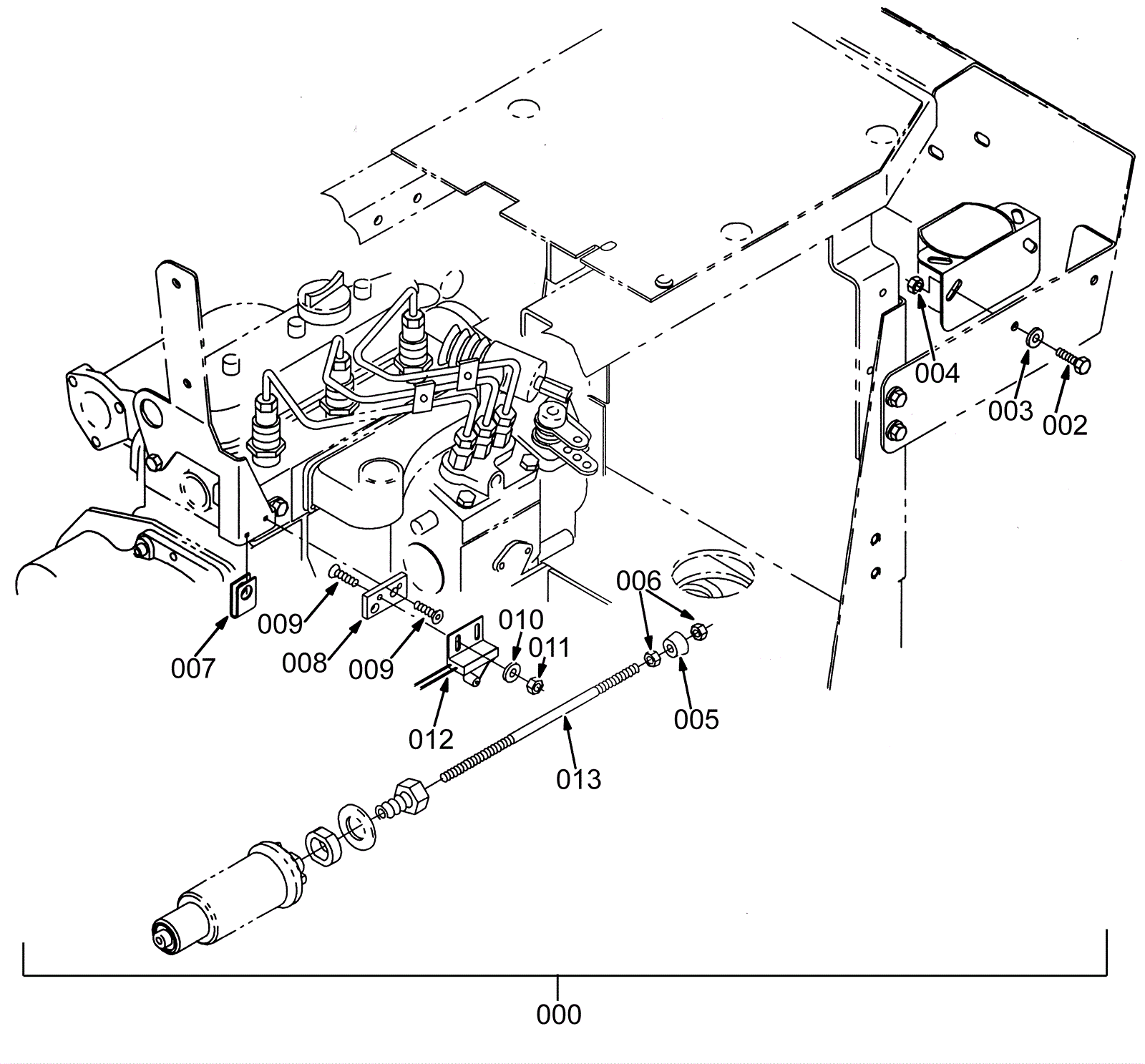

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
175-8128
|
Backup alarm kit (Tennant Industrial) (OBSOLETE) |
1 |
|
|
002 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
2 |
|
|
003 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
004 |
999-0665
|
Nut M8-1.25 flange lock |
2 |
|
|
005 |
175-8130
|
GUIDE (Tennant Industrial) |
1 |
|
|
006 |
175-0718
|
BUMPER, RBR, 1.2D 0.72L (Tennant Industrial) |
2 |
|
|
007 |
175-8131
|
NUT, U, M5 X 0.80 (Tennant Industrial) |
2 |
|
|
008 |
175-8132
|
PLATE, MTG, SWITCH, ALARM (Tennant Industrial) (OBSOLETE) |
1 |
|
|
009 |
175-8133
|
SCREW, FLT, SOC, M5 X 0.80 X 25, 10.9 (Tennant Industrial) |
4 |
|
|
010 |
999-0006
|
Washer 3/16 flat zinc plated |
2 |
|
|
011 |
175-2894
|
Nut M5-.8 hex nylon locking |
2 |
|
|
012 |
175-5910
|
SWITCH, SNAP, 15A NO, RLR (Tennant Industrial) |
1 |
|
|
013 |
175-8134
|
ROD, THRD (Tennant Industrial) |
1 |
|
|
N/S |
275-2542
|
Backup alarm assembly |
1 |
|
|
