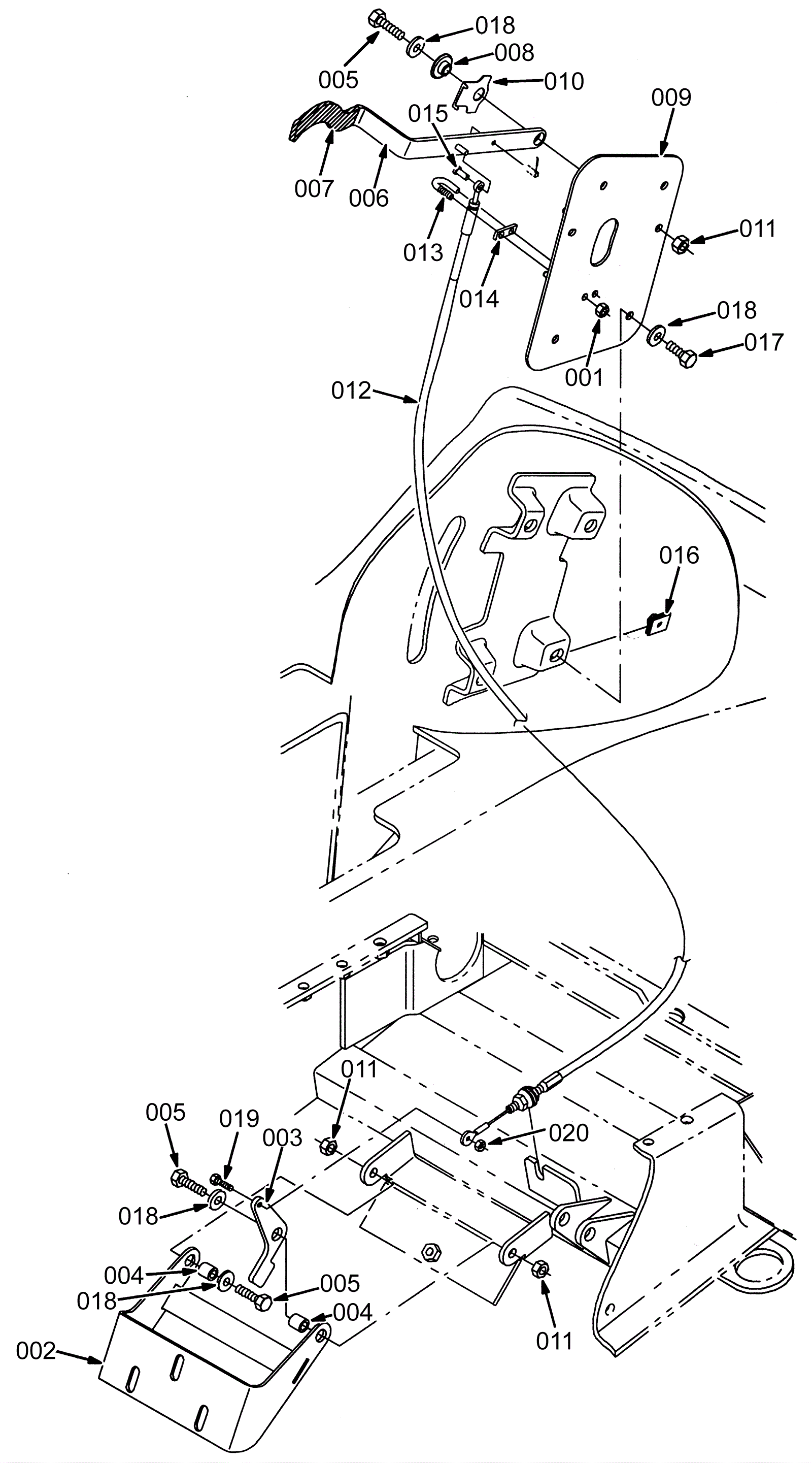

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
1 |
|
|
002 |
175-7111
|
BRACKET, LIFT (Tennant Industrial) |
1 |
|
|
003 |
175-7112
|
BRACKET, LIFT (Tennant Industrial) |
1 |
|
|
004 |
175-2249
|
Sleeve |
2 |
|
|
005 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
3 |
|
|
006 |
175-7113
|
HANDLE, LIFT (Tennant Industrial) |
1 |
|
|
007 |
175-0200
|
Blower attachment kit |
1 |
|
|
008 |
675-9890
|
Flanged bushing |
1 |
|
|
009 |
175-7114
|
PLATE WLDT, MTG (Tennant Industrial) (OBSOLETE) |
1 |
|
|
010 |
175-7115
|
Detent spring |
1 |
|
|
011 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
012 |
175-7116
|
Pull cable |
1 |
|
|
013 |
175-5998
|
Bolt |
1 |
|
|
014 |
175-5999
|
Cable support |
1 |
|
|
015 |
175-7117
|
Clevis pin |
1 |
|
|
016 |
175-5927
|
Nut M08 - 1 1/4 U |
4 |
|
|
017 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
3 |
|
|
018 |
999-0024
|
Washer 5/16 flat stainless steel |
6 |
|
|
019 |
175-0837
|
Bolt M5-.8 x 16mm hex head |
1 |
|
|
020 |
175-2894
|
Nut M5-.8 hex nylon locking |
1 |
|
|
