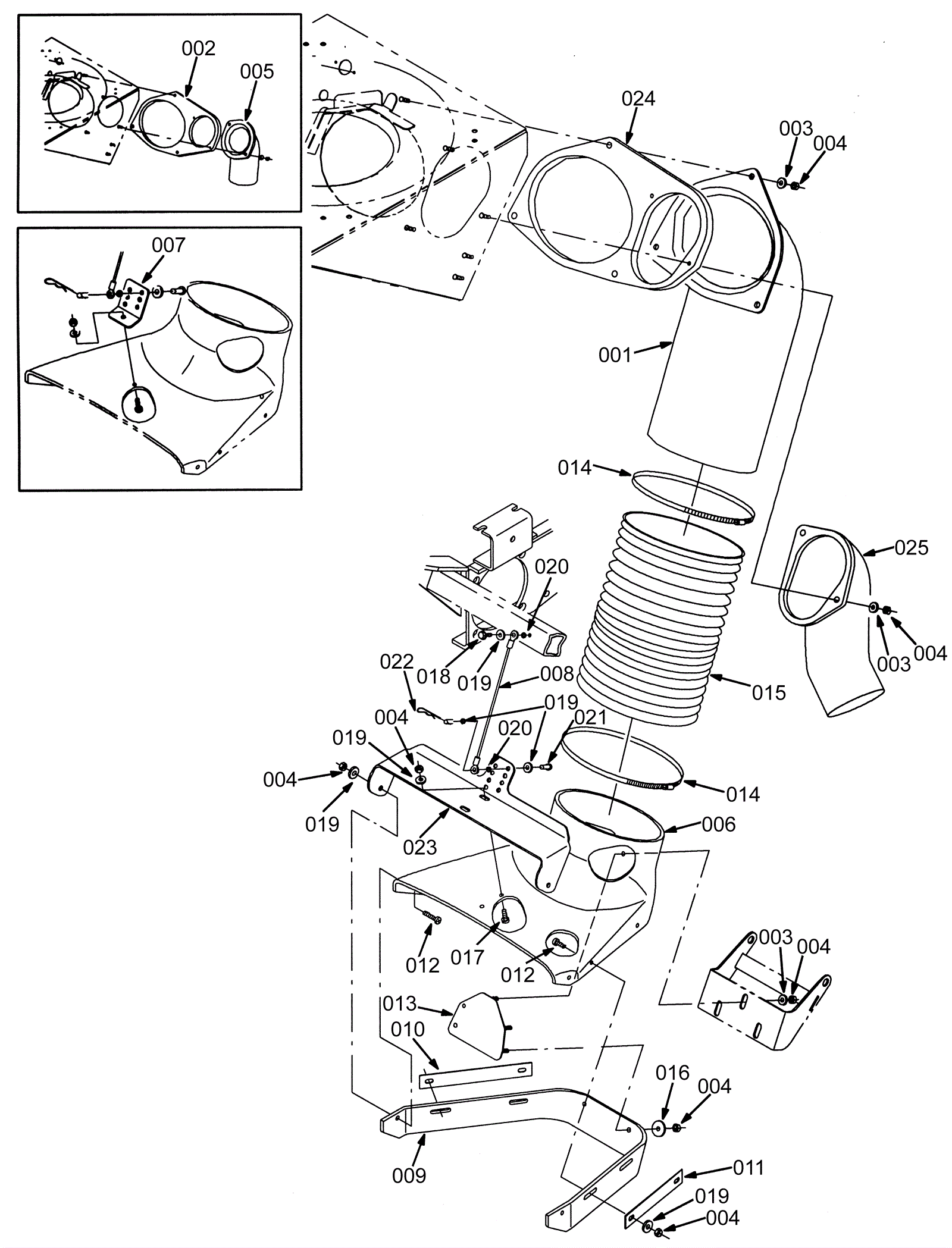

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-7094
|
TUBE, VACUUM, OVAL, 8.6 X 6.0,3HOLE FLNG (Tennant Industria |
1 |
|
|
002 |
175-7095
|
Vacuum inlet gasket (Tennant Industrial) (OBSOLETE) |
1 |
|
|
003 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
8 |
|
|
004 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
21 |
|
|
005 |
175-7096
|
COUPLING, HOSE (Tennant Industrial) (OBSOLETE) |
1 |
|
|
006 |
175-7097
|
SHROUD, INLET, VACUUM, OVAL (Tennant Industrial) (OBSOLETE) |
1 |
|
|
007 |
175-7098
|
BRACKET KIT, SPPT (Tennant Industrial) (OBSOLETE) |
1 |
|
|
008 |
175-7099
|
CABLE, GLV .13D 006.0L .38EYE /.38EYE (Tennant Industrial) |
1 |
|
|
009 |
175-7100
|
SKIRT, SHRD, VACUUM INLET, RBR, 27.6L (Tennant Industrial) |
1 |
|
|
010 |
175-7101
|
RETAINER, SKIRT, .06, 1.0W X 07.3L, NONE (Tennant Industria |
1 |
|
|
011 |
175-7102
|
RETAINER, SKIRT, .06, 1.0W X 06.3L, NONE (Tennant Industria |
1 |
|
|
012 |
999-1168
|
Screw M6-1 x 20mm pan head phillips stainless steel |
6 |
|
|
013 |
175-7103
|
PLATE WLDT, SPPT, INLET (Tennant Industrial) |
1 |
|
|
014 |
175-7104
|
CLAMP, OFFSET, 6.0D (Tennant Industrial) |
2 |
|
|
015 |
175-7105
|
HOSE, FLEX, VACUUM, 06.0 X 08.0, 012.0L (Tennant Industrial |
1 |
|
|
016 |
175-0123
|
Indicator light decal (OBSOLETE) |
2 |
|
|
017 |
175-3219
|
SCREW, PAN, PHL, M6 X 1.00 X 25, 4.8 (Tennant Industrial) |
2 |
|
|
018 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
1 |
|
|
019 |
999-0016
|
Washer 1/4 flat plain finish |
9 |
|
|
020 |
175-0777
|
P/M sleeve |
2 |
|
|
021 |
175-7106
|
PIN, CLEVIS, 0.25D X 0.50L (Tennant Industrial) |
1 |
|
|
022 |
175-7107
|
Cotter hair pin |
1 |
|
|
023 |
175-7108
|
BRACKET, SPPT (Tennant Industrial) |
1 |
|
|
024 |
175-7109
|
GASKET, PLENUM, .38, URE, BLK, ADH (Tennant Industrial) |
1 |
|
|
025 |
175-7110
|
COUPLING, HOSE (Tennant Industrial) |
1 |
|
|
