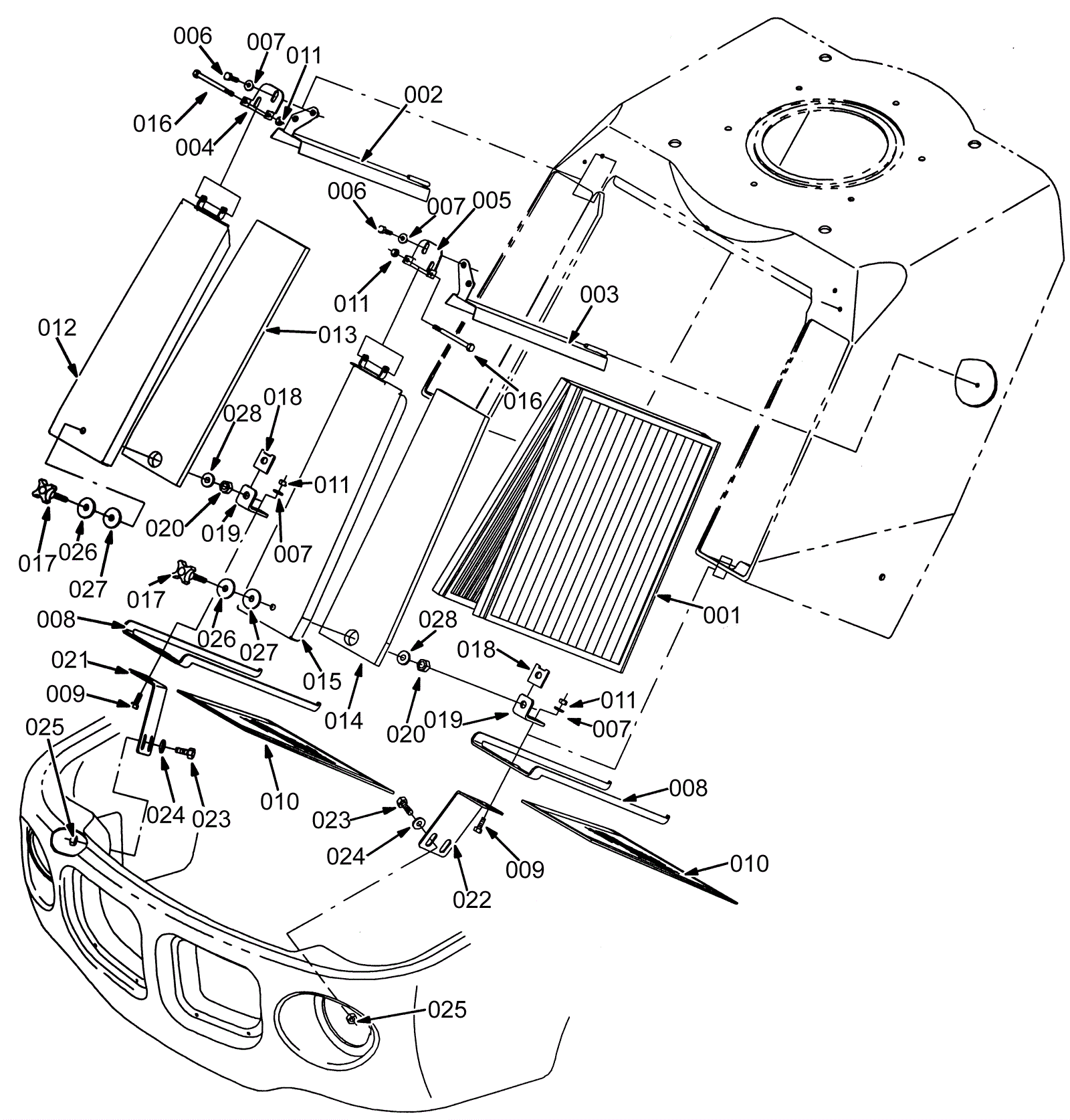

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-6982
|
Panel filter (Tennant Industrial) |
2 |
|
|
002 |
175-6983
|
CHANNEL WLDT, FLTR, RH (Tennant Industrial) |
1 |
|
|
003 |
175-6984
|
CHANNEL WLDT, FLTR, LH (Tennant Industrial) |
1 |
|
|
004 |
175-6985
|
BRACKET, COVER, RH (Tennant Industrial) (OBSOLETE) |
1 |
|
|
005 |
175-6986
|
BRACKET, COVER, LH (Tennant Industrial) |
1 |
|
|
006 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
4 |
|
|
007 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
008 |
175-6987
|
HOOK, DEFLECTOR (Tennant Industrial) |
2 |
|
|
009 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
4 |
|
|
010 |
175-6988
|
SCREEN, DIFFUSER (Tennant Industrial) |
2 |
|
|
011 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
4 |
|
|
012 |
175-6989
|
COVER WLDT, FLTR, RH (Tennant Industrial) |
1 |
|
|
013 |
175-6990
|
SEAL, FOAM, RBR, RH (Tennant Industrial) |
1 |
|
|
014 |
175-6991
|
SEAL, FOAM, RBR, LH (Tennant Industrial) |
1 |
|
|
015 |
175-6992
|
COVER WLDT, FLTR, LH (Tennant Industrial) |
1 |
|
|
016 |
175-6993
|
SCREW, HEX, M6 X 1.00 X 70, 8.8 (Tennant Industrial) |
2 |
|
|
017 |
175-6994
|
Star knob assembly (Tennant Industrial) (OBSOLETE) |
2 |
|
|
018 |
175-6995
|
NUT, SPD, CLIP, .31-18 [.050-.200] (Tennant Industrial) |
2 |
|
|
019 |
175-6996
|
KET, LATCH (Tennant Industrial) |
2 |
|
|
020 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
|
021 |
175-6997
|
BRACKET, SPPT, RH (Tennant Industrial) (OBSOLETE) |
1 |
|
|
022 |
175-6998
|
BRACKET, SPPT, LH (Tennant Industrial) (OBSOLETE) |
1 |
|
|
023 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
4 |
|
|
024 |
999-0024
|
Washer 5/16 flat stainless steel |
12 |
|
|
025 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
4 |
|
|
026 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
|
027 |
175-2309
|
Washer |
2 |
|
|
028 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
