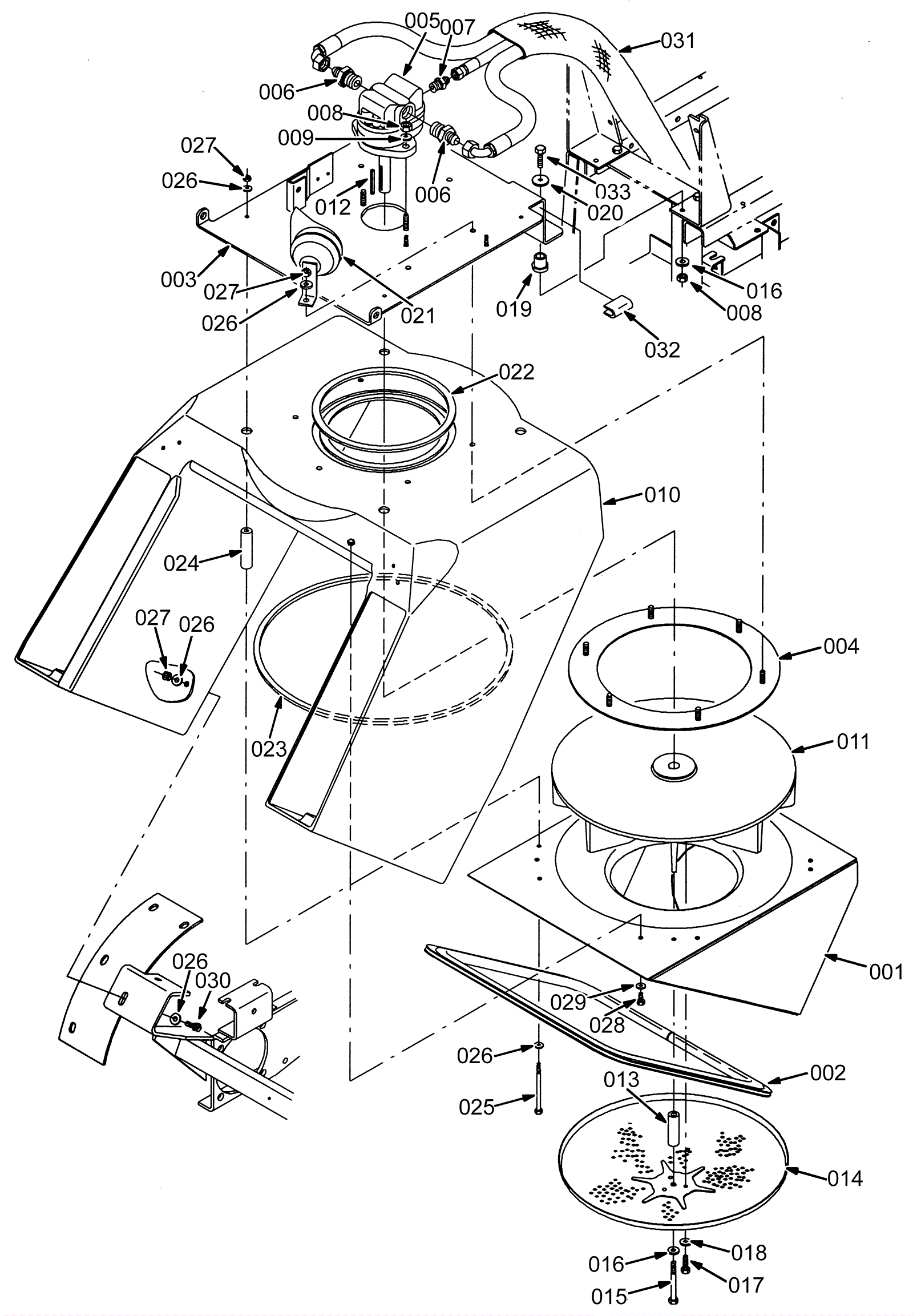

Vacuum Fan and Housing Group

#PartDescription ReqNotesAvailability
001a 175-6960 Plenum box weldment (OBSOLETE) 1
001b 175-6961 BOX WLDT, PLENUM (Tennant Industrial) 1
002 575-9665 SEAL, AFMKT, BULB, 90, 0.50D, 08FT (Tennant Industrial) 1
003a 175-6963 PLATE WLDT, SPPT, W/ LABEL (Tennant Industrial) (OBSOLETE) 1 With lable
003b 175-6964 PLATE WLDT, SPPT (Tennant Industrial) 1 With lable
004 175-6965 PLATE WLDT, SPPT, HSNG (Tennant Industrial) 1
005 175-6966 MOTOR, HYD, GEAR, EXT 0.40 LH 3000 (Tennant Industrial) 1
006 175-6967 Strainer fitting 2
007 175-6968 FITTING, HYD, STR, JM04/OM06 (Tennant Industrial) 1
008 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4
009 999-0032 Washer 3/8 USS flat plain finish 2
010 175-6969 HOUSING, FAN (Tennant Industrial) 1
011 175-6970 IMPELLER (Tennant Industrial) (OBSOLETE) 1
012 175-6971 KEY, SQ, 0.19 X 0.19, 2.00L (Tennant Industrial) 1
013 175-6972 TUBE, 0.44ID 0.75OD 01.9L, SS (Tennant Industrial) 1
014 175-6973 SCREEN, VACFAN [40% OPEN, HAWK] (Tennant Industrial) 1
015 999-0909 Bolt M8-1.25 x 70mm hex head stainless steel 1
016 999-0024 Washer 5/16 flat stainless steel 3
017 999-1224 Screw M6-1 x 20mm flat head phillips stainless steel 3
018 175-6974 WASHER, FLAT, 0.31B 0.5OD .32, NYL (Tennant Industrial) 3
019 175-2429 Vibration isolator 2
020 999-0630 Washer 3/4 SAE flat 2
021 775-0114 12VDC horn 1
022 175-6976 SEAL, URE, 0.38, 0.38W 29.9L ADH (Tennant Industrial) 1
023 175-6977 Seal (Tennant Industrial) (OBSOLETE) 1
024 175-6978 Sleeve (Tennant Industrial) (OBSOLETE) 4
025 175-6979 SCREW, HEX, M8 X 1.25 X 100, 8.8 (Tennant Industrial) 4
026 999-0024 Washer 5/16 flat stainless steel 18
027 999-0471 Nut M8-1.25 nylon insert lock zinc plated 12
028 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 4
029 999-0016 Washer 1/4 flat plain finish 4
030 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish 2
031 175-6980 SLEEVE, NYL, 1.63ID 20.0L (Tennant Industrial) 1
032 275-8203 Molding 2
033 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 2
