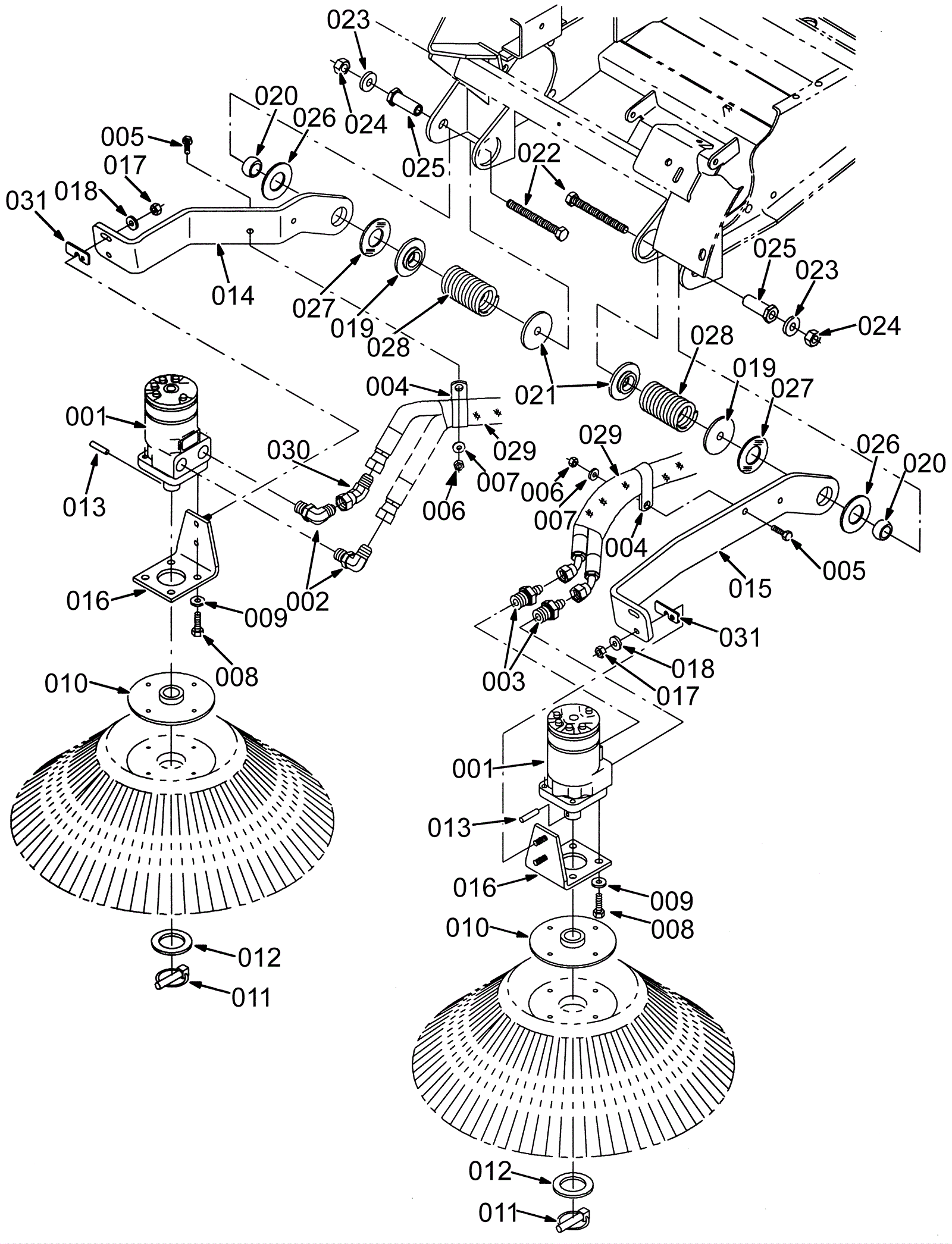

Side Brush Motor Group

#PartDescription ReqNotesAvailability
001 175-6892 MOTOR, HYD, GEAR, INT 17.9 BI-DIR 1500 (Tennant Industrial) 2
002 175-6893 Elbow fitting 2
003 175-6787 FITTING, HYD, STR, JM08/OM10 (Tennant Industrial) 2
004 175-6894 CLAMP, CABLE, STL, 1.0X2.0X0.62W, 1HOLE (Tennant Industrial 2
005 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2
006 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
007 999-0024 Washer 5/16 flat stainless steel 2
008 175-0882 LABEL, TANK [7300] (Tennant Industrial) (OBSOLETE) 8
009 999-0032 Washer 3/8 USS flat plain finish 8
010 175-6895 PLATE WLDT, MTG, SIDE BRUSH (Tennant Industrial) 2
011 175-6896 PIN, RETAINER (Tennant Industrial) 2
012 175-6897 PLATE, SPPT (Tennant Industrial) 2
013 175-6898 PIN, ROLL, .312D X 1.37L, .312/.318 (Tennant Industrial) 2
014 175-6899 Right hand side brush lift arm 1
015 175-6900 Left hand side brush lift arm 1
016 175-6901 Side brush bracket weldment ( Tennant Industrial) 2
017 999-0471 Nut M8-1.25 nylon insert lock zinc plated 6
018 999-0024 Washer 5/16 flat stainless steel 4
019 175-6902 GUIDE, SPRING (Tennant Industrial) 2
020 175-6903 PIVOT, SPHERICAL, 1.25D (Tennant Industrial) 2
021 175-6904 GUIDE, SPRING (Tennant Industrial) 2
022 175-6905 SCREW, HEX, .50-13 X 5.50, FL (Tennant Industrial) 2
023 999-0187 Washer 1/2 flat plain finish 2
024 999-0202 Nut 1/2-13 hex plain finish 2
025 175-6906 NUT, SHLD, .50-13 (Tennant Industrial) 2
026 999-1134 Washer 1 1/4 flat stainless steel 2
027 175-6908 WASHER KIT, SLIDE, BRUSH ARM[LITTERHAWK] (Tennant Industria 2
028 175-6909 SPRING, CMPR, 1.94OD .25WIR 05.0L (Tennant Industrial) 2
029 175-6910 SLEEVE, NYL, 1.63ID 08.0L (Tennant Industrial) 2
030 175-6911 FITTING, HYD, E45, JF08/JM08 (Tennant Industrial) 1
031 175-6912 SPACER (Tennant Industrial) 2
