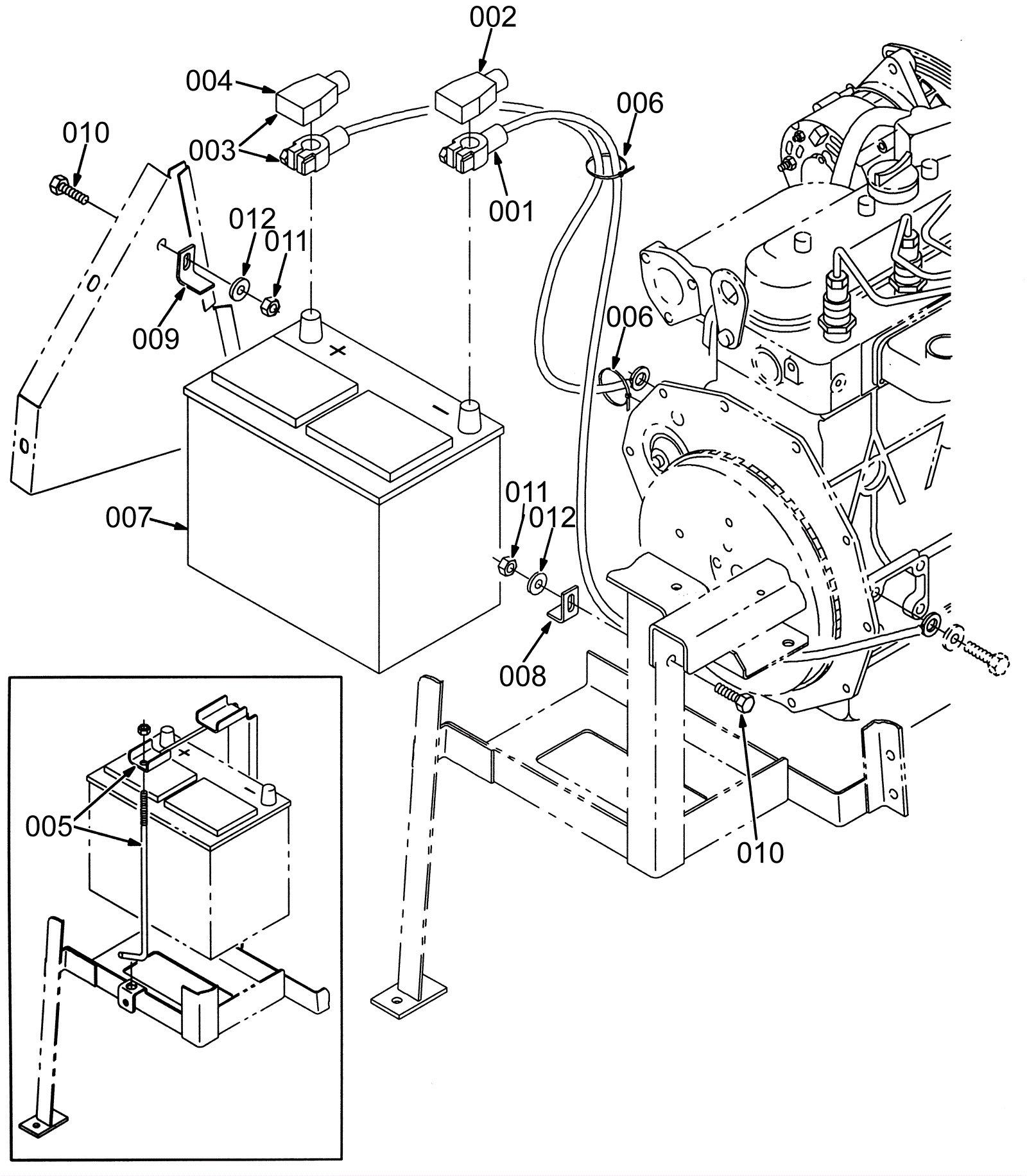

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-6884
|
CABLE, BATTERY, 04GA 44.0L BLK .41RING (Tennant Industrial) |
1 |
|
|
002 |
175-6885
|
Boot (black) |
1 |
|
|
003 |
175-6886
|
SEAL, URE, 0.38, 0.38W 13.5L ADH (Tennant Industrial) |
1 |
|
|
004 |
175-6887
|
Boot (red) |
1 |
|
|
005 |
175-6888
|
RETAINER KIT, BATTERY (Tennant Industrial) |
1 |
|
|
006 |
175-2162
|
Nylon wire tie |
2 |
|
|
007 |
162-0011
|
12V 105Ah wet battery (SNSR) |
1 |
|
|
008 |
175-6890
|
ANGLE, BATTERY, LH (Tennant Industrial) |
1 |
|
|
009 |
175-6891
|
ANGLE, BATTERY, RH (Tennant Industrial) |
1 |
|
|
010 |
999-0518
|
Bolt M6-1 x 25mm hex head full thread zinc |
2 |
|
|
011 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
2 |
|
|
012 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
