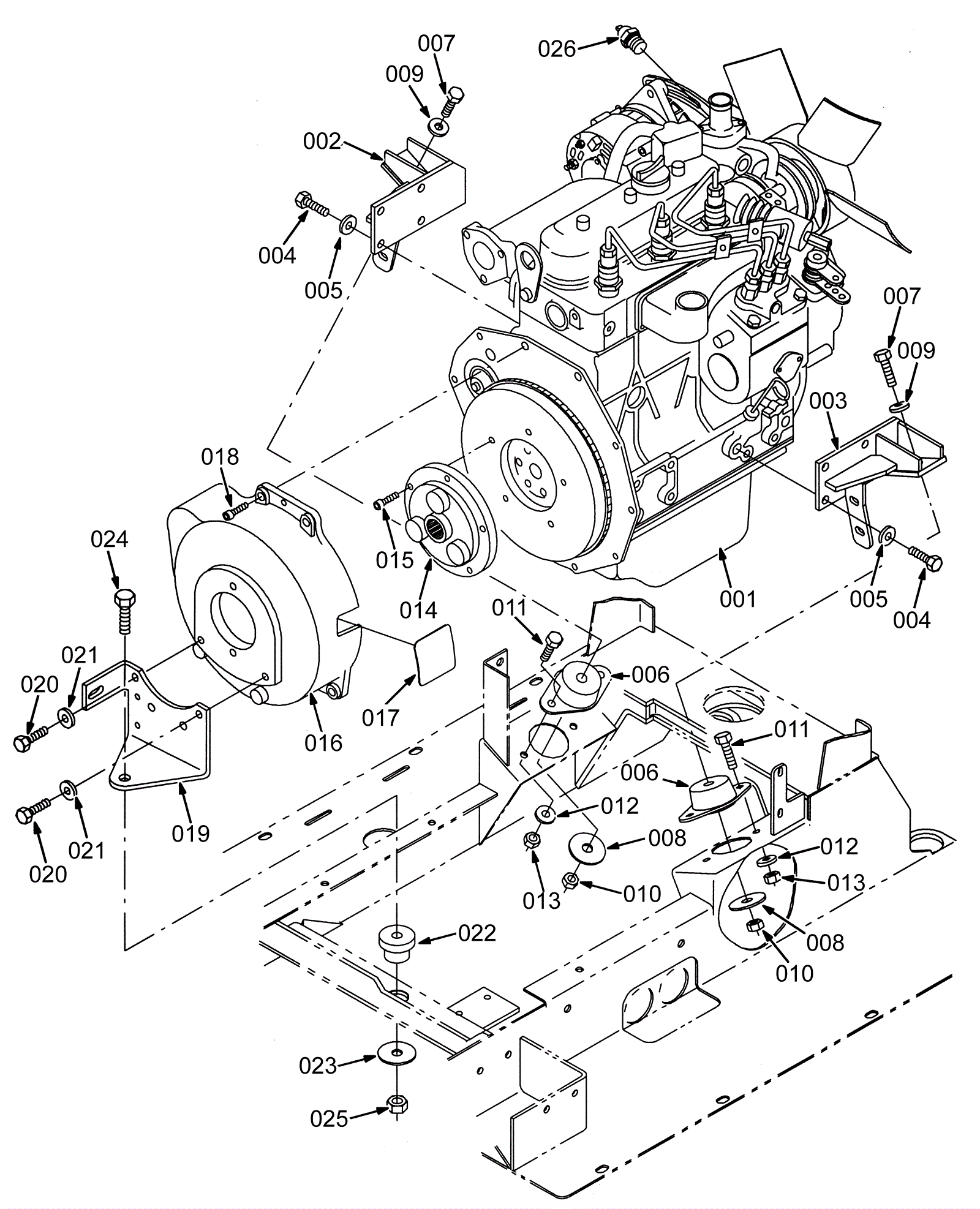

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-6812
|
ENGINE, DSL [KUBO, D722, CALIF] (Tennant Industrial) |
1 |
|
|
002 |
175-6813
|
BRACKET WLDT, MTG, ENG, RH (Tennant Industrial) (OBSOLETE) |
1 |
|
|
003 |
175-6814
|
BRACKET WLDT, MTG, ENG, LH (Tennant Industrial) (OBSOLETE) |
1 |
|
|
004 |
175-6815
|
Screw M10 x 1 1/4 x 20 hex |
8 |
|
|
005 |
999-0032
|
Washer 3/8 USS flat plain finish |
8 |
|
|
006 |
175-6816
|
ISOLATOR, VIB, FLNG, 1.3L .5B 2/.39H (Tennant Industrial) |
2 |
|
|
007 |
175-6817
|
SCREW, HEX, M12 X 1.75 X 70, 8.8 (Tennant Industrial) |
2 |
|
|
008 |
175-3470
|
Washer .53b 1.88d .12 steel plated |
2 |
|
|
009 |
999-0114
|
Washer 1/2 SAE flat |
2 |
|
|
010 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
2 |
|
|
011 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
4 |
|
|
012 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
013 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
4 |
|
|
014 |
175-6818
|
COUPLING, DRIVE, FLEX, 06.0D /13TOOTH (Tennant Industrial) |
1 |
|
|
015 |
175-0602
|
Screw M8-1.25 x 25mm socket |
5 |
|
|
016 |
175-6819
|
HOUSING, FLYWHEEL (Tennant Industrial) |
1 |
|
|
017 |
175-6820
|
STRIP, RBR, 0.06 02.50W 02.5L (Tennant Industrial) |
1 |
|
|
018 |
175-6821
|
SCREW, SOC, M8 X 1.25 X 35, 12.9 (Tennant Industrial) |
4 |
|
|
019 |
175-6822
|
PLATE, MTG, MOTOR (Tennant Industrial) (OBSOLETE) |
1 |
|
|
020 |
999-0038
|
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
2 |
|
|
021 |
999-0032
|
Washer 3/8 USS flat plain finish |
2 |
|
|
022 |
175-6823
|
ISOLATOR, VIB, .50D (Tennant Industrial) |
1 |
|
|
023 |
175-3470
|
Washer .53b 1.88d .12 steel plated |
1 |
|
|
024 |
175-6824
|
Screw M12-1 3/4 x 60mm hex |
1 |
|
|
025 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
1 |
|
|
026 |
N/A
|
Not available |
1 |
Water temp switch |
|
