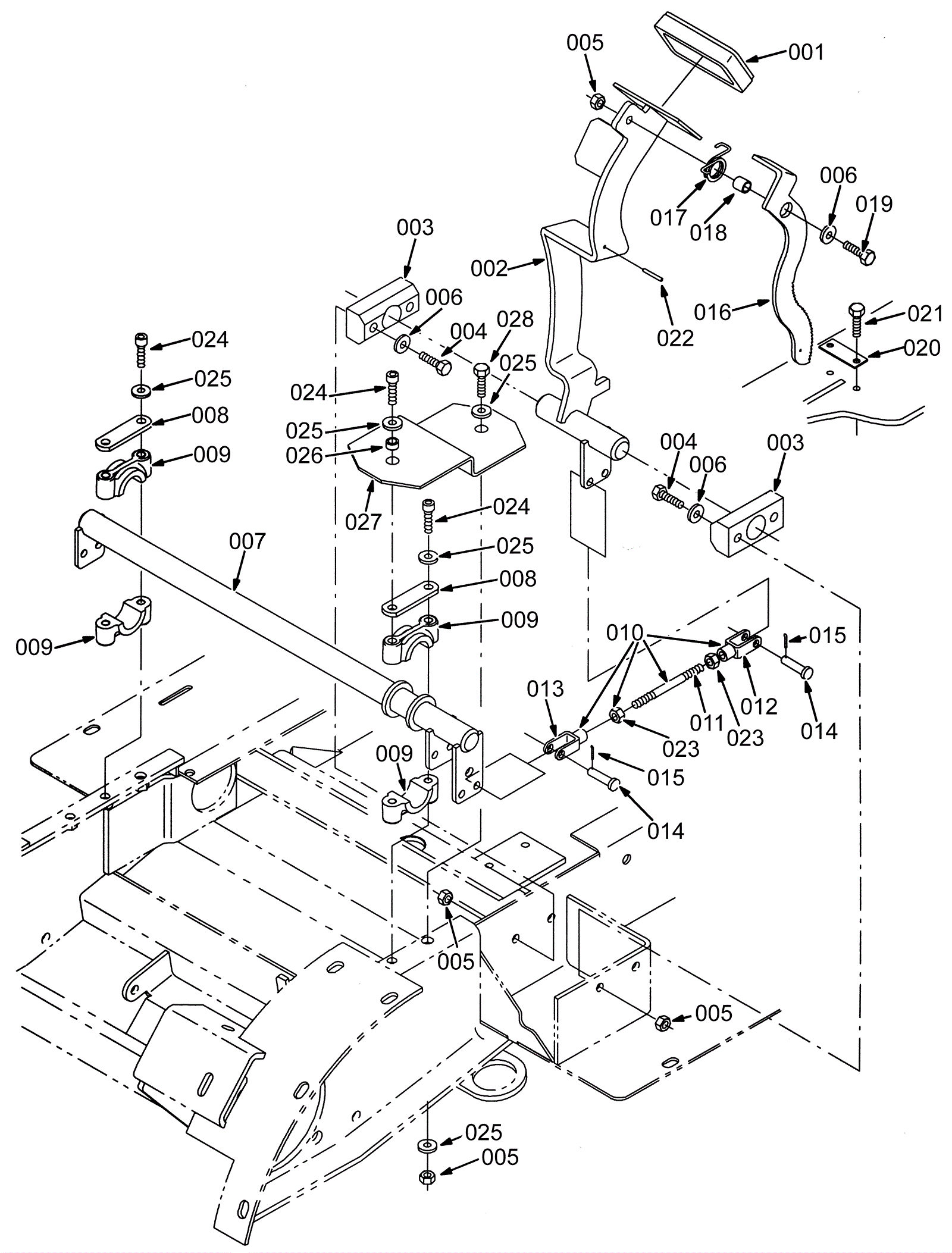

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-3279
|
Pedal pad |
1 |
|
|
002 |
175-6803
|
ARM WLDT, PEDAL, BRAKE (Tennant Industrial) (OBSOLETE) |
1 |
|
|
003 |
175-6804
|
BEARING, FLNG, 2HOLE, 1.02B [SOLID PYE] (Tennant Industrial |
2 |
|
|
004 |
999-0801
|
Screw M8-1.25 x 45mm hex head zinc |
4 |
|
|
005 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
6 |
|
|
006 |
999-0024
|
Washer 5/16 flat stainless steel |
5 |
|
|
007 |
175-6805
|
SHAFT WLDT, BRAKE (Tennant Industrial) (OBSOLETE) |
1 |
|
|
008 |
175-6806
|
PLATE, SPPT (Tennant Industrial) |
2 |
|
|
009 |
175-6807
|
BEARING, SPLIT, 1.00B (Tennant Industrial) |
4 |
|
|
010 |
175-6798
|
LINKAGE ASSY, .31D 7.0L (Tennant Industrial) |
1 |
|
|
011 |
175-6799
|
Linkage rod (Tennant Industrial) (OBSOLETE) |
1 |
|
|
012 |
175-6800
|
CLEVIS, ADJ, 0.31PIN, 0.31-24 (Tennant Industrial) |
1 |
|
|
013 |
175-6801
|
Adjustment clevis 5/16 (Tennant Industrial) (OBSOLETE) |
1 |
|
|
014 |
175-3351
|
Clevis pin |
2 |
|
|
015 |
175-6176
|
Cotter pin |
2 |
|
|
016 |
175-6808
|
PEDAL, STOP (Tennant Industrial) |
1 |
|
|
017 |
175-0633
|
Spring |
1 |
|
|
018 |
175-0755
|
Sleeve |
1 |
|
|
019 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
1 |
|
|
020 |
175-6809
|
SPRING, FLAT, .06, 0.75W X 02.0L, 2/.25H (Tennant Industria |
1 |
|
|
021 |
175-5924
|
Screw 10 x 5/8 hex |
1 |
|
|
022 |
175-2966
|
Screw 10 x 30 socket head cap screw |
1 |
|
|
023 |
175-0849
|
Nut 5/16-24 hex |
2 |
|
|
024 |
175-6810
|
SCREW, SOC, M8 X 1.25 X 70, 12.9 (Tennant Industrial) |
4 |
|
|
025 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
6 |
|
|
026a |
275-4699
|
Paper filter bags (package of 10) |
1 |
|
|
026b |
991-9015
|
Paper vacuum bags (pkg of 10) (OBSOLETE) |
1 |
(NON-OEM) |
|
027 |
175-6811
|
FLAP, GUARD, HOSE (Tennant Industrial) (OBSOLETE) |
1 |
|
|
028 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
1 |
|
|
