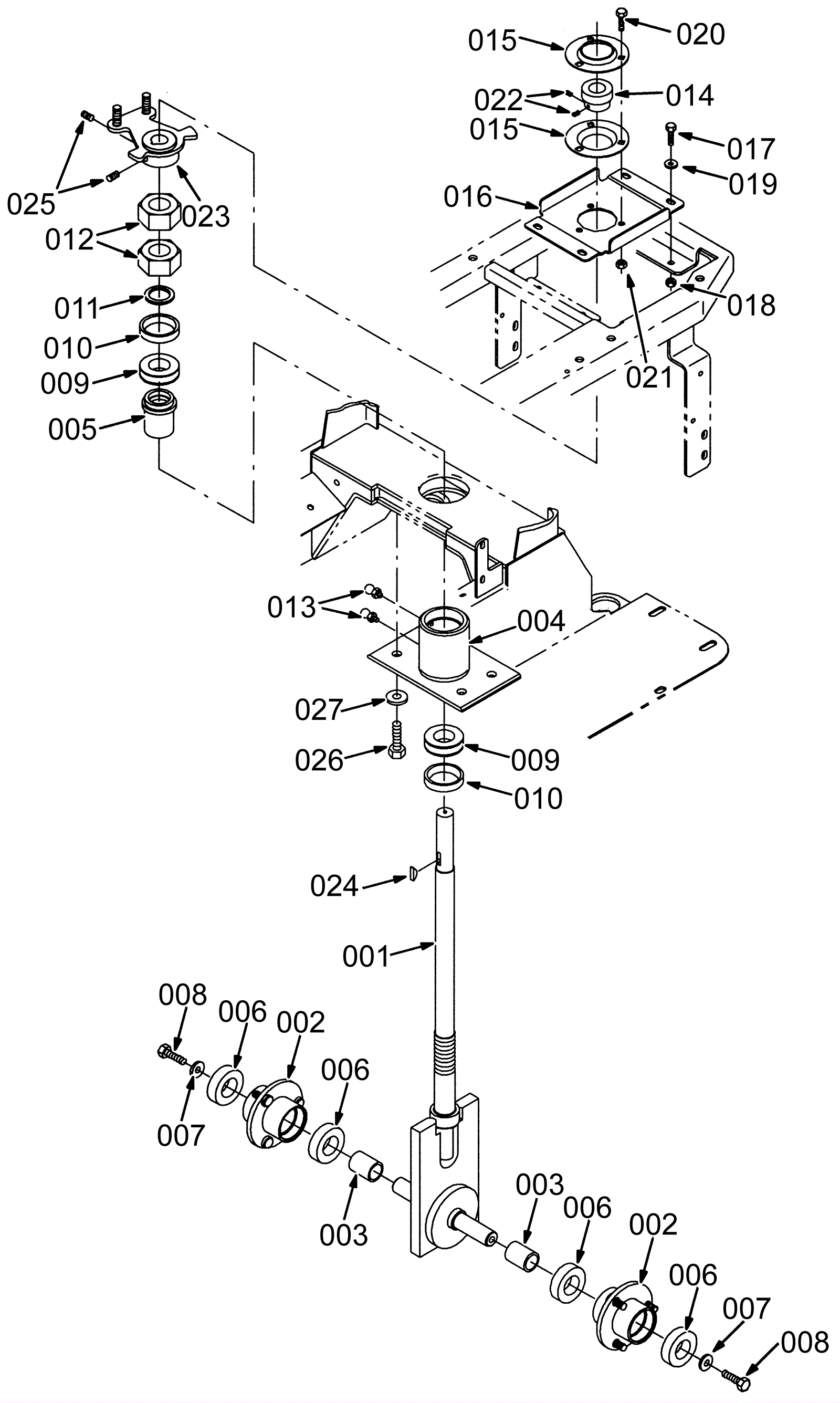

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-6769
|
SUPPORT WLDT, WHEEL, REAR (Tennant Industrial) (OBSOLETE) |
1 |
|
|
002 |
175-6770
|
HUB ASSY, WHEEL, 3 BOLT 3.50BC (Tennant Industrial) |
2 |
|
|
003 |
175-6771
|
SPACER (Tennant Industrial) |
2 |
|
|
004 |
175-6772
|
MOUNT, BRG, REAR (Tennant Industrial) (OBSOLETE) |
1 |
|
|
005 |
175-6773
|
SEAL, GREASE (Tennant Industrial) (OBSOLETE) |
1 |
|
|
006 |
175-3293
|
Ball bearing |
4 |
|
|
007 |
175-2367
|
Steel plated washer |
2 |
|
|
008 |
175-6774
|
Screw M10-1 1/2 x 20 hex |
2 |
|
|
009 |
175-6775
|
Cone bearing |
2 |
|
|
010 |
175-4947
|
Cup bearing |
2 |
|
|
011 |
175-6776
|
WASHER, FLAT, 1.26B 1.88D .13, STL (Tennant Industrial) |
1 |
|
|
012 |
175-6777
|
NUT, HEX, JAM, 1.25-12 (Tennant Industrial) |
2 |
|
|
013 |
175-6778
|
FITTING, GREASE, STR PM04 .63L (Tennant Industrial) |
2 |
|
|
014 |
175-6779
|
BEARING, W/ COLLAR, 1.00B 2.05D 1.21W (Tennant Industrial) |
1 |
|
|
015 |
175-6780
|
FLANGE, BRG, 2.0ID 3H (Tennant Industrial) |
2 |
|
|
016 |
175-6781
|
BRACKET WLDT, MTG, BRG (Tennant Industrial) (OBSOLETE) |
1 |
|
|
017 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
4 |
|
|
018 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
4 |
|
|
019 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
020 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
3 |
|
|
021 |
999-0665
|
Nut M8-1.25 flange lock |
3 |
|
|
022 |
999-0061
|
Screw 1/4-20 x 5/16 cup point socket set alloy plain finish |
2 |
|
|
023 |
175-6782
|
ARM WLDT, STEERING (Tennant Industrial) |
1 |
|
|
024 |
175-6746
|
Woodruff key |
1 |
|
|
025 |
175-6783
|
SCREW, SET, SOC, M8 X 1.25 X 12, PL[45H] (Tennant Industria |
2 |
|
|
026 |
175-6784
|
Screw M12- 1.75 x 30mm hexhead |
4 |
|
|
027 |
999-0187
|
Washer 1/2 flat plain finish |
4 |
|
|
