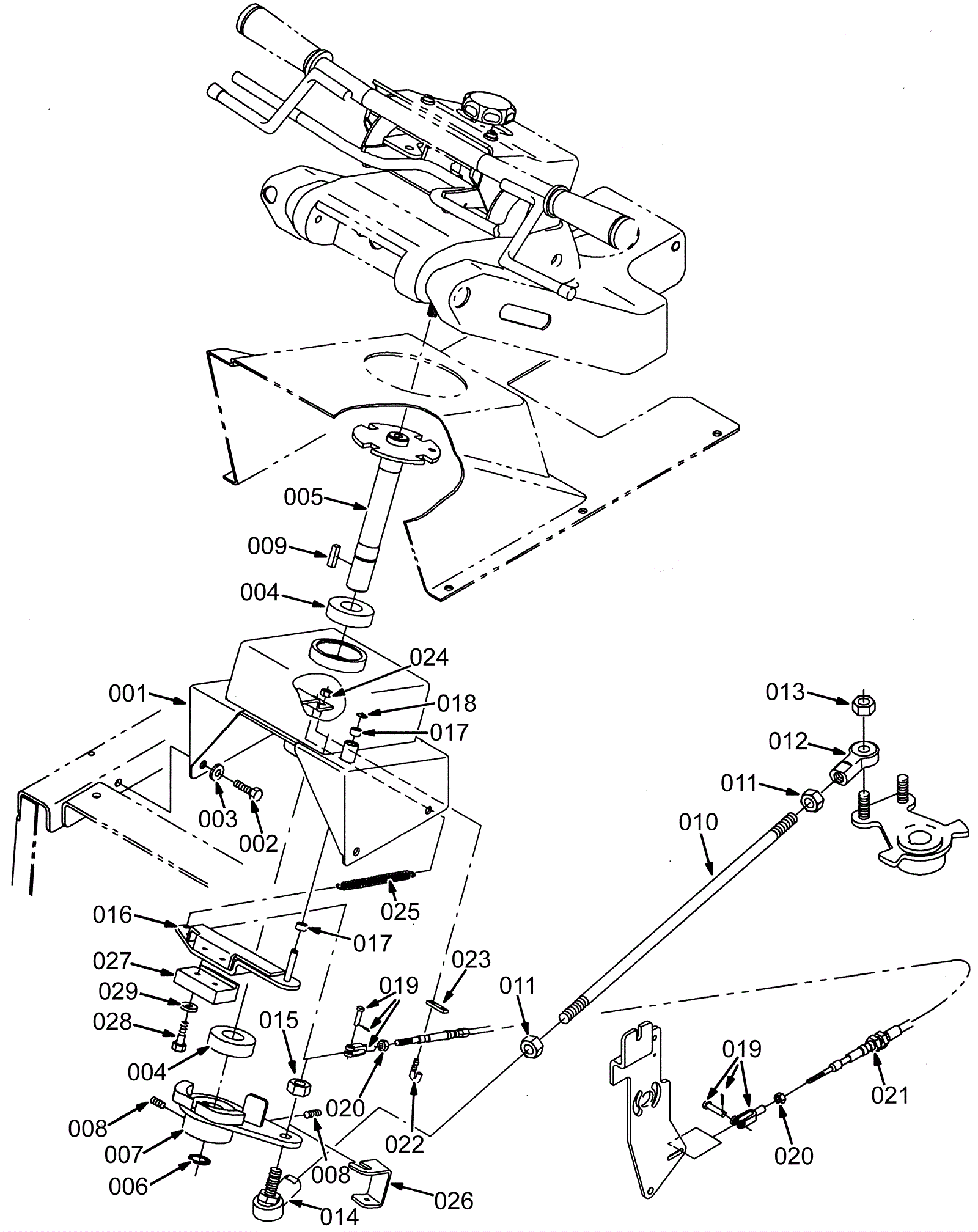

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-6742
|
HOUSING WLDT [HAWK] (Tennant Industrial) (OBSOLETE) |
1 |
|
|
002 |
175-0591
|
Bolt M8-1.25 x 12mm hex head |
4 |
|
|
003 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
004 |
175-3293
|
Ball bearing |
2 |
|
|
005 |
175-6743
|
SHAFT WLDT, STEERING, FRONT (Tennant Industrial) (OBSOLETE) |
1 |
|
|
006 |
175-6744
|
RING, RETAINING, EXT, 0.98D, BASIC (Tennant Industrial) |
1 |
|
|
007 |
175-6745
|
Steering lever (OBSOLETE) |
1 |
|
|
008 |
999-1088
|
Screw M8-1.25 x 12mm pan head phillips zinc plated |
2 |
|
|
009 |
175-6746
|
Woodruff key |
1 |
|
|
010 |
175-6747
|
Steering rod (Tennant Industrial) (OBSOLETE) |
1 |
|
|
011 |
999-0134
|
Nut 1/2-20 hex jam plain finish |
2 |
|
|
012 |
175-6748
|
ROD-END, 0.50-20RH FEM 0.50B (Tennant Industrial) |
1 |
|
|
013 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
1 |
|
|
014 |
175-6749
|
ROD-END, 0.50-20LH FEM 0.50-20STUD (Tennant Industrial) |
1 |
|
|
015 |
175-6750
|
NUT, HEX, LOCK, .50-20, NL, THIN (Tennant Industrial) |
1 |
|
|
016 |
175-6751
|
ARM WLDT, STEERING (Tennant Industrial) (OBSOLETE) |
1 |
|
|
017 |
275-4549
|
Tank coupling |
2 |
|
|
018 |
175-6752
|
RING, RETAINING, EXT, 0.38D, [SELFLOCK] (Tennant Industrial |
1 |
|
|
019 |
175-3424
|
Clevis 10-32 adjustment |
2 |
|
|
020 |
999-0460
|
Nut 10-32 hex |
2 |
|
|
021 |
175-6754
|
CABLE, PUSH / PULL, 054.6L 10-32/10-32 (Tennant Industrial) |
1 |
|
|
022 |
175-5998
|
Bolt |
1 |
|
|
023 |
175-5999
|
Cable support |
1 |
|
|
024 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
1 |
|
|
025 |
175-6755
|
Extension spring (Tennant Industrial) (OBSOLETE) |
1 |
|
|
026 |
175-6756
|
BRACKET, KEEPER, STEERING (Tennant Industrial) (OBSOLETE) |
1 |
|
|
027 |
175-6757
|
BAR, CENTERING, STEERING (Tennant Industrial) (OBSOLETE) |
1 |
|
|
028 |
175-6758
|
Screw M6-1 x 30mm hex head |
2 |
|
|
029 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
