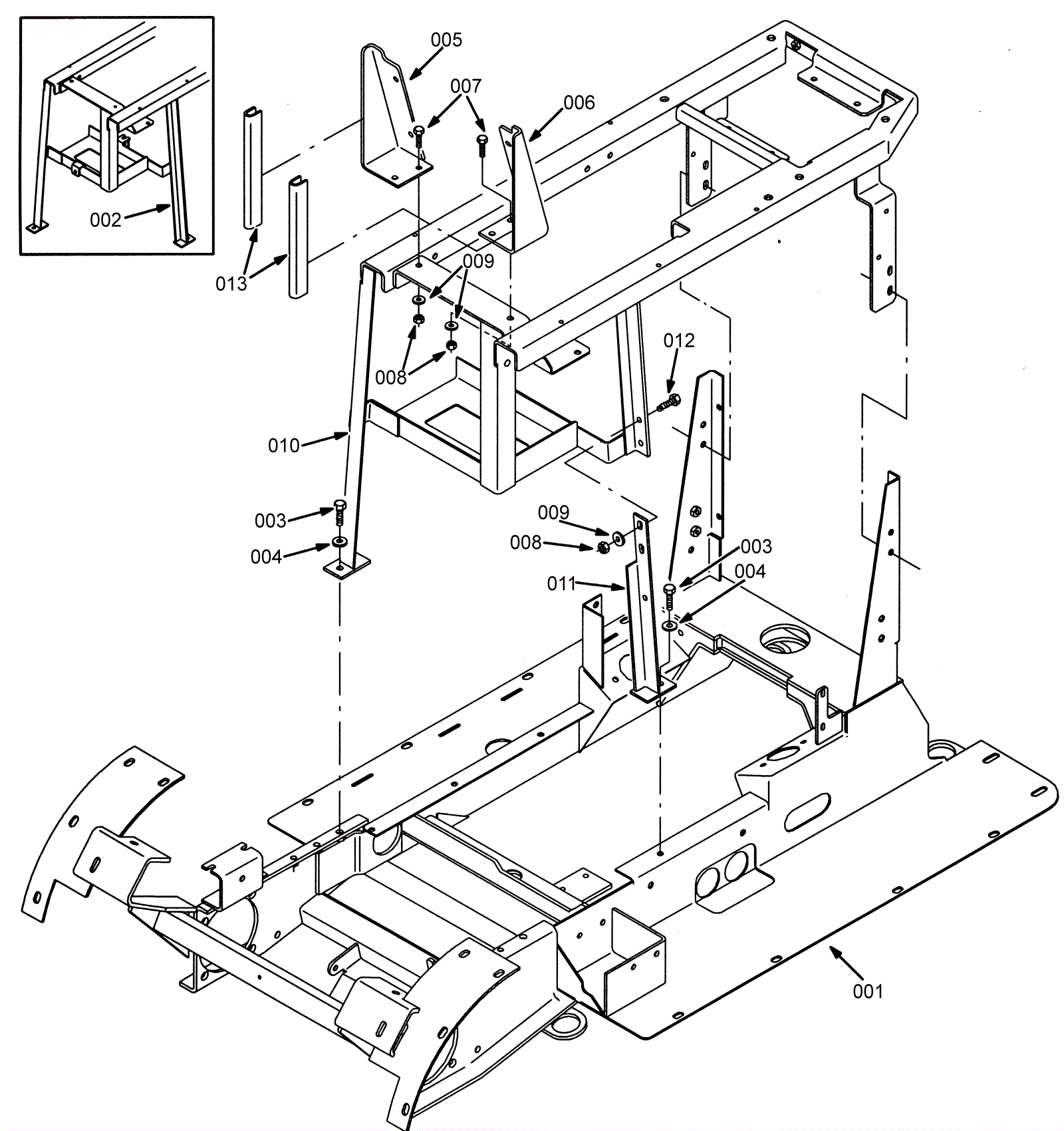

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-6705
|
FRAME, MAIN [HAWK] (Tennant Industrial) (OBSOLETE) |
1 |
|
|
002 |
175-6706
|
SUPPORT KIT, SEAT (Tennant Industrial) (OBSOLETE) |
1 |
|
|
003 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
2 |
|
|
004 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
005 |
175-6707
|
BRACKET, SPPT, RH (Tennant Industrial) (OBSOLETE) |
1 |
|
|
006 |
175-6708
|
BRACKET, SPPT, LH (Tennant Industrial) (OBSOLETE) |
1 |
|
|
007 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
2 |
|
|
008 |
999-0579
|
Nut M8-1.25 hex coarse thread zinc |
4 |
|
|
009 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
010 |
175-6709
|
SUPPORT WLDT, SEAT (Tennant Industrial) (OBSOLETE) |
1 |
|
|
011 |
175-6710
|
ANGLE WLDT (Tennant Industrial) (OBSOLETE) |
1 |
|
|
012 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
2 |
|
|
013 |
275-8203
|
Molding |
2 |
|
|
