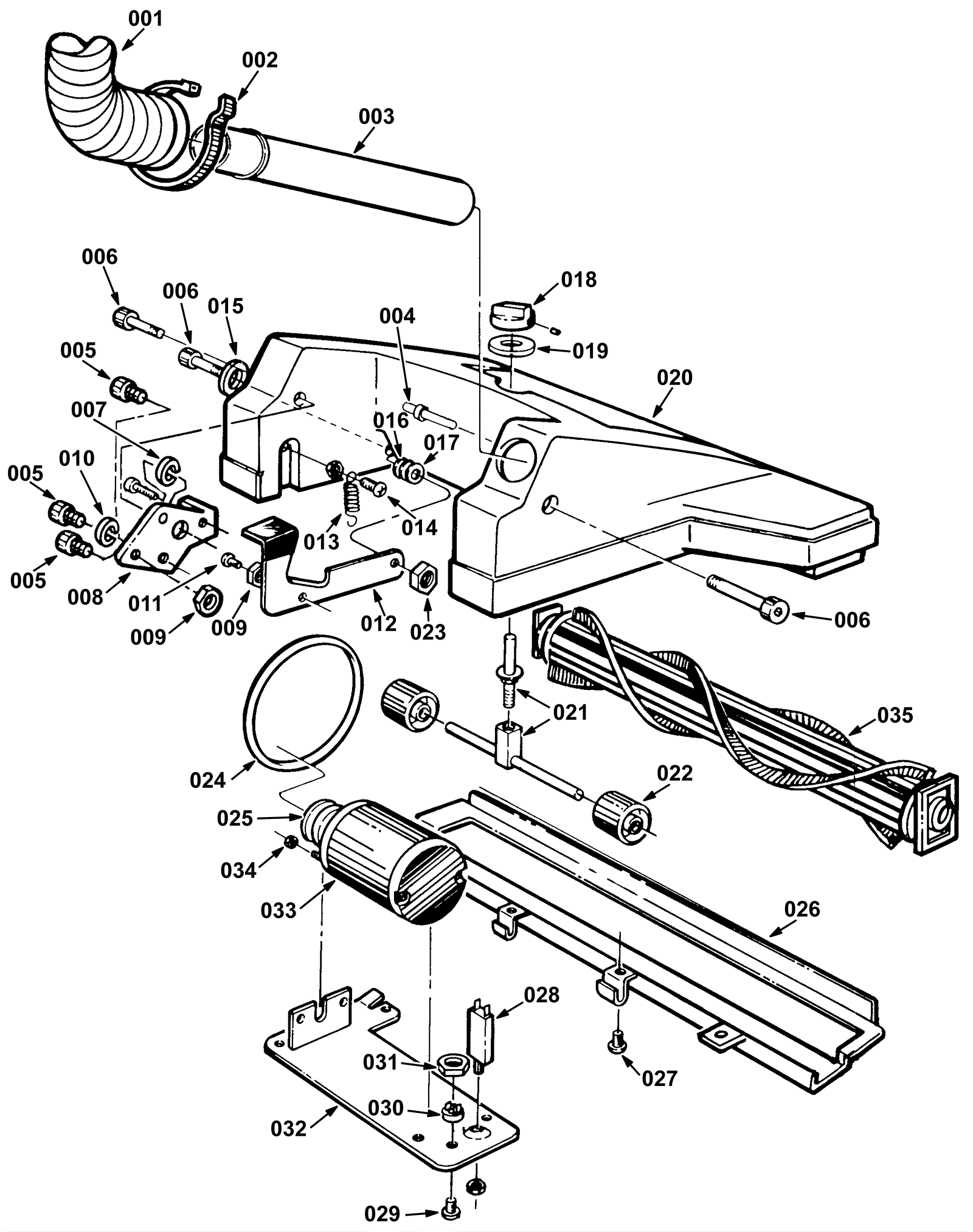

3240 Power Head Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-1714 Hose with cuff 2 inches $119.01 1 usually ships 5-16 days
002 997-2003 Hose clamp $2.66 1 ships same day
003 175-1716 Base tube $19.69 1 usually ships 5-16 days
004 997-1004 Pop rivet $1.87 1 usually ships 11-24 days
005 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 3 ships same day
006 175-1719 Shoulder bolt $4.95 3 usually ships 5-16 days
007 175-1776 High collar washer $2.64 3 usually ships 5-16 days
008 175-1777 Latch plate $91.19 1 usually ships 5-16 days
009 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 2 ships same day
010 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
011 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 1 ships same day
012 175-1741 Foot pedal latch plate $37.29 1 usually ships 5-16 days
013 175-1742 Latch spring $5.39 1 usually ships 5-16 days
014 999-1077 Screw 1/4-20 x 1/2 truss head phillips stainless steel $2.24 1 ships same day
015 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
016 175-1512 Spacer $8.58 2 ships same day
017 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
018 175-1720 Height adjusting knob $22.88 1 usually ships 5-16 days
019 175-1721 Washer 1/2 x 3/8 x 1/8 felt $4.84 1 usually ships 5-16 days
020a 275-5218 3240 base (teal) $320.54 1 (3240) usually ships 1-5 days
020b 175-7462 3260 base (teal) $359.37 1 (3260) usually ships 1-5 days
021a 175-1733 Height adjustment assembly $76.56 1 (3240) usually ships 5-16 days
021b 175-1734 Height adjustment assembly $112.86 1 (3260) usually ships 1-5 days
022 175-0061 Roller wheel $9.35 4 usually ships 5-16 days
023 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 1 ships same day
024 175-1736 Brush drive belt $11.88 1 ships same day
025 175-1735 Motor pulley $44.44 1 usually ships 5-16 days
026a 175-1730 22 inch shoe plate $1,056.00 1 (3240) usually ships 1-5 days
026b 175-1731 26 inch shoe plate (OBSOLETE) $330.11 1 (3260) usually ships 5-16 days
027 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated $0.99 3 ships same day
028 175-0030 1.5amp circuit breaker $24.64 1 usually ships 5-16 days
029 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 1 ships same day
030 175-6052 15amp rectifier $24.09 1 ships same day
031 999-0195 Nut 6-32 hex plain $0.99 1 ships same day
032 175-1740 Brush motor mounting plate $84.04 1 usually ships 5-16 days
033a 175-6131 120V brush motor $289.52 1 ships same day
033b 175-1266 Carbon brush (sold individually) $115.72 1 usually ships 1-5 days
034 999-0239 Nut 10-32 k-lock zinc plated $0.99 2 ships same day
035a 175-1268 17 inch brush assembly (OBSOLETE) $184.80 1 (3240) usually ships 1-5 days
035b 175-1269 20 inch brush assembly (OBSOLETE) $138.60 1 (3260) usually ships 5-16 days
