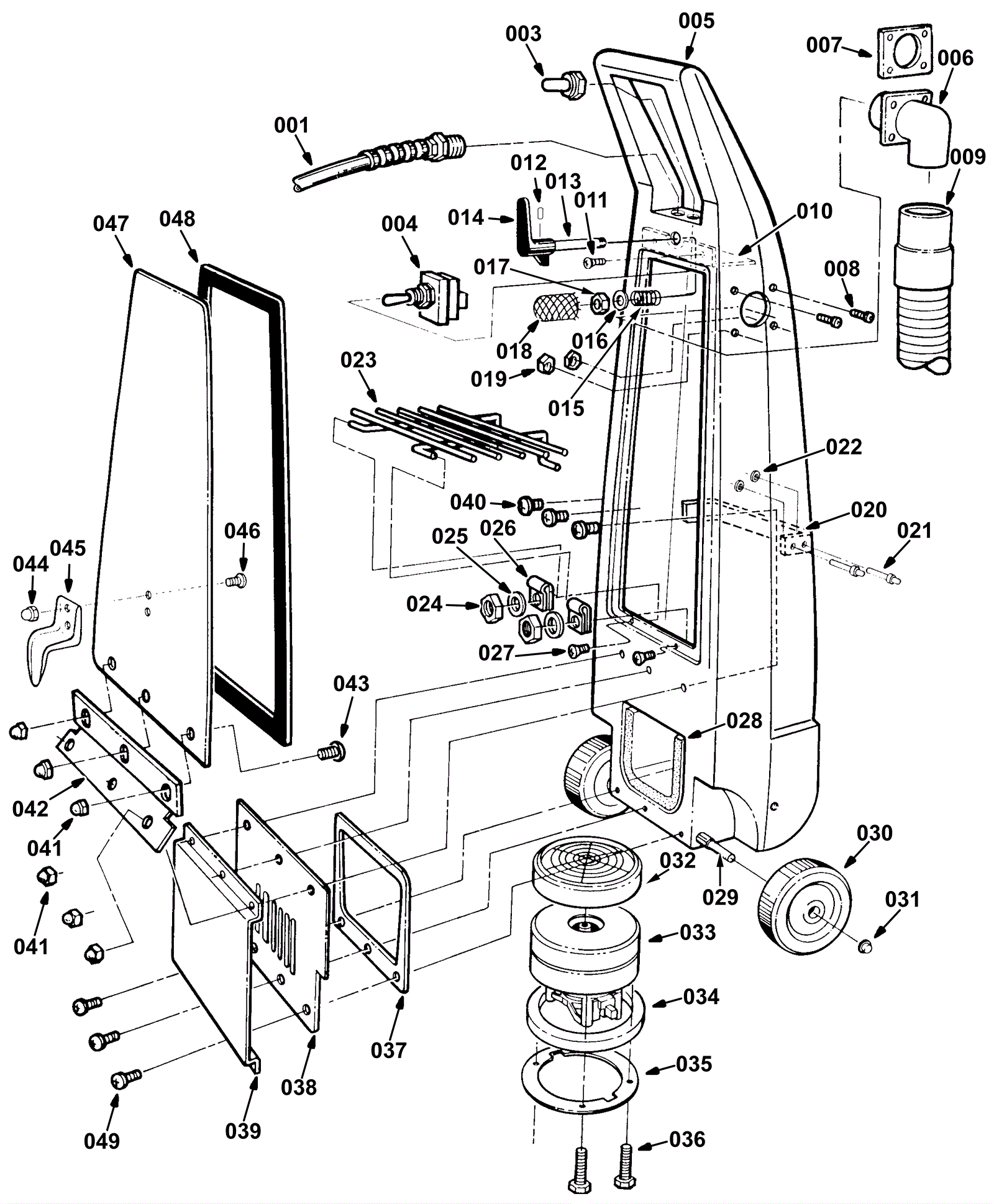

3240 Upper Unit Assembly

#PartDescriptionPriceReqNotesAvailability
001a 175-0046 16/3 power cord 50 feet $105.60 1 (OEM) ships same day
001b 991-5006 16/3 replacement power cord 50 foot (yellow) $37.50 1 (NON-OEM) ships same day
001c 991-5002 16/3 extension cord 50 foot (yellow) $48.73 1 (NON-OEM) ships same day
003 175-0329 Rubber boot for switch $15.84 1 ships same day
004 164-0290 Toggle switch $14.63 1 ships same day
005 275-5788 Handle $362.56 1 usually ships 1-5 days
006 175-1745 Inlet elbow (black) $959.09 1 usually ships 1-5 days
007 275-0626 Elbow gasket $5.61 1 usually ships 1-5 days
008 999-1077 Screw 1/4-20 x 1/2 truss head phillips stainless steel $2.24 4 ships same day
009 175-1714 Hose with cuff 2 inches $119.01 1 usually ships 5-16 days
010 175-1761 Plate $56.65 1 usually ships 1-5 days
011 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 2 ships same day
012 175-1750 Roll pin $3.96 1 usually ships 5-16 days
013 175-1749 Latch shaft $20.90 1 usually ships 5-16 days
014 175-1751 Handle latch $26.51 1 usually ships 5-16 days
015 175-1748 Spring $6.82 1 usually ships 5-16 days
016 999-0032 Washer 3/8 USS flat plain finish $2.42 1 ships same day
017 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 1 ships same day
018 175-1747 Spring guard $14.19 1 usually ships 5-16 days
019 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
020 175-1769 Handle brace $11.55 1 usually ships 1-5 days
021 N/A Not available Call for price 4 Pop rivet usually ships 3-26 days
022 999-0412 Washer #8 SAE flat $0.99 4 ships same day
023 175-1765 Wire bag support $22.66 1 usually ships 1-5 days
024 999-0408 Nut 4-40 plain machine screw $0.99 2 ships same day
025 999-0533 Washer M4 split lock plain finish $0.99 2 ships same day
026 175-0255 Clamp $2.20 2 usually ships 1-5 days
027 999-0455 Screw 4-40 x 5/8 pan head phillips zinc plated $0.99 2 ships same day
028 175-1766 Embossed gasket $6.60 1 usually ships 1-5 days
029 175-1773 Wheel axle $57.42 1 usually ships 5-16 days
030 275-5209 Wheel (gray) $23.98 2 ships same day
031 175-1775 Retaining ring $4.95 2 usually ships 5-16 days
032 991-5119 Vacuum motor filter $1.35 1 ships same day
033a 175-0252 120V vacuum motor $373.45 1 (OEM) ships same day
033b 991-1208 120V 2 stage vacuum motor peripheral $146.52 1 (NON-OEM) ships same day
033c 275-5835 Carbon brush (pkg of 2) $31.35 2 usually ships 5-16 days
034 175-0249 Vacuum motor gasket $9.68 1 usually ships 5-16 days
035 175-1767 Mount ring $15.18 1 usually ships 1-5 days
036 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated $0.99 3 ships same day
037 175-1759 Exhaust gasket $6.16 1 usually ships 1-5 days
038 175-1758 Exhaust plate (black) $39.82 1 usually ships 1-5 days
039 175-1757 Exhaust cover (black) $31.35 1 usually ships 1-5 days
040 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel $1.69 3 ships same day
041 175-1075 Nut acorn $3.63 6 usually ships 1-5 days
042 175-1755 Hinge $15.95 1 usually ships 1-5 days
043 999-0994 Screw 3/8-24 x 2 1/4 hex head stainless steel $5.15 3 ships same day
044 175-1075 Nut acorn $3.63 2 usually ships 1-5 days
045 175-1756 Cord hook $23.21 1 ships same day
046 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 2 ships same day
047 275-9787 Door assembly with decals $110.11 1 usually ships 1-5 days
048 175-1753 Rear cover gasket $28.71 1 usually ships 5-16 days
049 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 3 ships same day
N/S 175-1725 Brush height adjustment decal $13.75 1 usually ships 1-5 days
N/S 175-1754 Important decal $5.06 1 usually ships 1-5 days
N/S 275-5217 Tennant decal (OBSOLETE) $6.71 1 usually ships 1-5 days
N/S 175-4379 3260 decal (OBSOLETE) $3.04 1 usually ships 1-5 days
N/S 175-8593 Wet rug warning decal (OBSOLETE) $0.99 1 usually ships 1-5 days
N/S 175-8592 Warning decal (OBSOLETE) $0.99 1 usually ships 1-5 days
N/S 175-4378 3240 decal (OBSOLETE) $7.70 1 usually ships 1-5 days
N/S 175-1760 On/off switch decal $4.51 1 usually ships 5-16 days
N/S 175-1641 Clean air exhaust filter assembly $187.33 1 usually ships 1-5 days
N/S 175-1589 Cloth bag $72.82 1 ships same day
N/S 175-1744 Tool kit assembly $156.53 1 usually ships 1-5 days
N/S 175-1588 Paper filter bags (case of 100) $215.93 10 (OEM) usually ships 5-16 days
N/S 991-8519 Paper vacuum bags (pkg of 10) $16.96 1 (NON-OEM) ships same day
