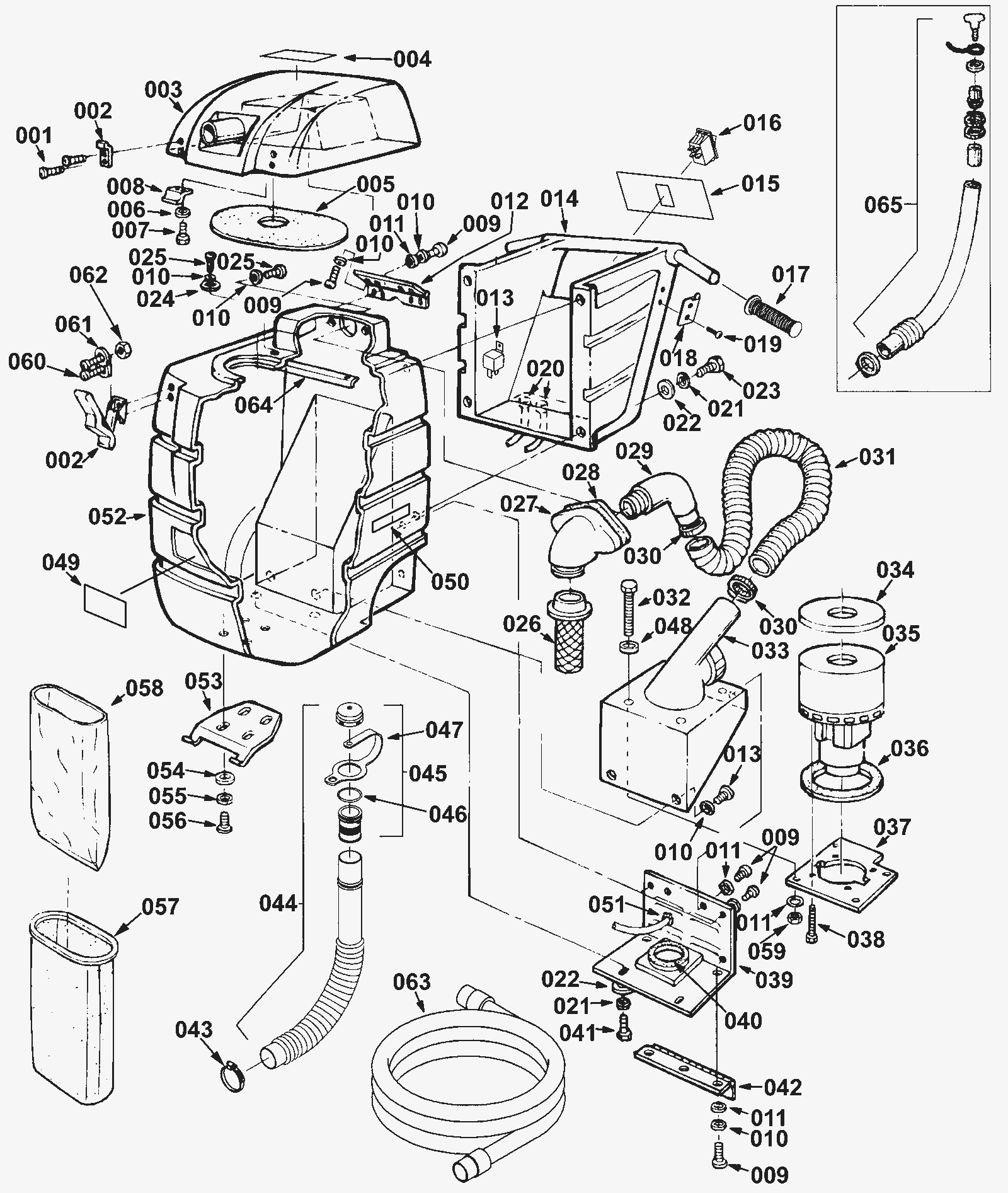

Tank Assembly

#PartDescription ReqNotesAvailability
001 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel 4
002a 175-3369 Hood latch 2
002b 991-8561 Rubber draw latch with keeper 2
003 175-7763 Cover assembly (teal) 1
004 375-0031 Warning decal 1
005 175-0282 Tank lid gasket 1
006 999-0311 Washer #10 external star lock zinc plated 2
007 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel 2
008 175-1528 Air deflector bracket 1
009 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc 20
010 999-1117 Washer M6 split lock stainless steel 20
011 999-0016 Washer 1/4 flat plain finish 20
012 175-1550 Hinge 1
013a 175-7764 24V Relay kit 1
013b 175-6588 24V 70amp elevated relay 1
014 175-7324 Teal handle housing 1
015 175-6590 Dash decal 1
016 175-1008 Rocker switch 1
017a 675-9894 Handle grip 2
017b 991-8571 Handle grip 2 (NON-OEM)
019 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 2
020 175-6591 Strain relief bushing 2
021 999-0034 Washer 3/8 split lock plain finish 6
022 999-0617 Washer 3/8 x 1 flat stainless steel 6
023 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated 4
024 999-1119 Washer 1/4 x 1 fender zinc plated 2
025 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel 6
026a 675-9887 Shut-off float 1 (OEM)
026b 991-5136 Shut-off float 1 (NON-OEM)
027 175-1574 Vacuum tube elbow 1
028 175-1575 Elbow gasket 1
029 175-1577 Elbow assembly (OBSOLETE) 1
030 175-2057 Hose clamp 2
031 175-1578 Vacuum hose 2 x 13 inch 1
032 999-0428 Screw 6-32 x 1 1/4 round head slotted zinc plated 4
033 175-1583 Vacuum motor hose mount 1
034 175-6085 Gasket 1
035a 991-1235 24V 3 stage vacuum motor peripheral 1
035v 175-2658 Carbon brush (pkg of 2) 1
036 175-0053 Gasket 1
037 175-1569 Motor mounting bracket 1
038 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 4
039 175-6593 Motor cover plate (OBSOLETE) 1
040 175-6594 Vacuum motor end gasket (OBSOLETE) 1
041 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
042 175-6595 Hinge (OBSOLETE) 1
043 997-2007 Hose clamp 1
044a 175-1535 Drain hose assembly 1
044b 991-1907 22 inch molded hose with drain cap 1 (NON-OEM)
045a 175-4214 Drain plug assembly 1
045b 991-3028 Drain plug assembly 1
046 175-5804 O-ring 1
047 175-4214 Drain plug assembly 1
048 999-1119 Washer 1/4 x 1 fender zinc plated 4
049 175-7326 Tennant decal 1
050 175-7325 Model name decal 2
051 175-6158 Nut 1/2 conduit 1
052 175-7327 Recovery tank (teal) 1
053 175-6597 Latch plate 1
054 999-0024 Washer 5/16 flat stainless steel 4
055 999-0553 Washer 5/16 medium split lock stainless steel 4
056 999-0330 Nut 1/2-13 acorn brass 4
057 175-5753 Cloth filter bag (OBSOLETE) 1
058 175-1531 Paper bag (pkg of 10) 1
059 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
060 999-9113 Screw M4-.7 x 16mm pan head phillips stainless steel 4
061 999-0393 Washer 3/16 flat aluminum 4
062 999-0954 Nut M4-.7 nylon insert lock stainless steel 4
063 175-2635 Vacuum hose 1 1/2 x 10 foot 1
064 175-5749 Support bracket 1
065 N/A Not available 1 Drain hose and Cap Assembly. Use 175-1535
