| # | Part | Description |
Req | Notes | Availability |
|---|

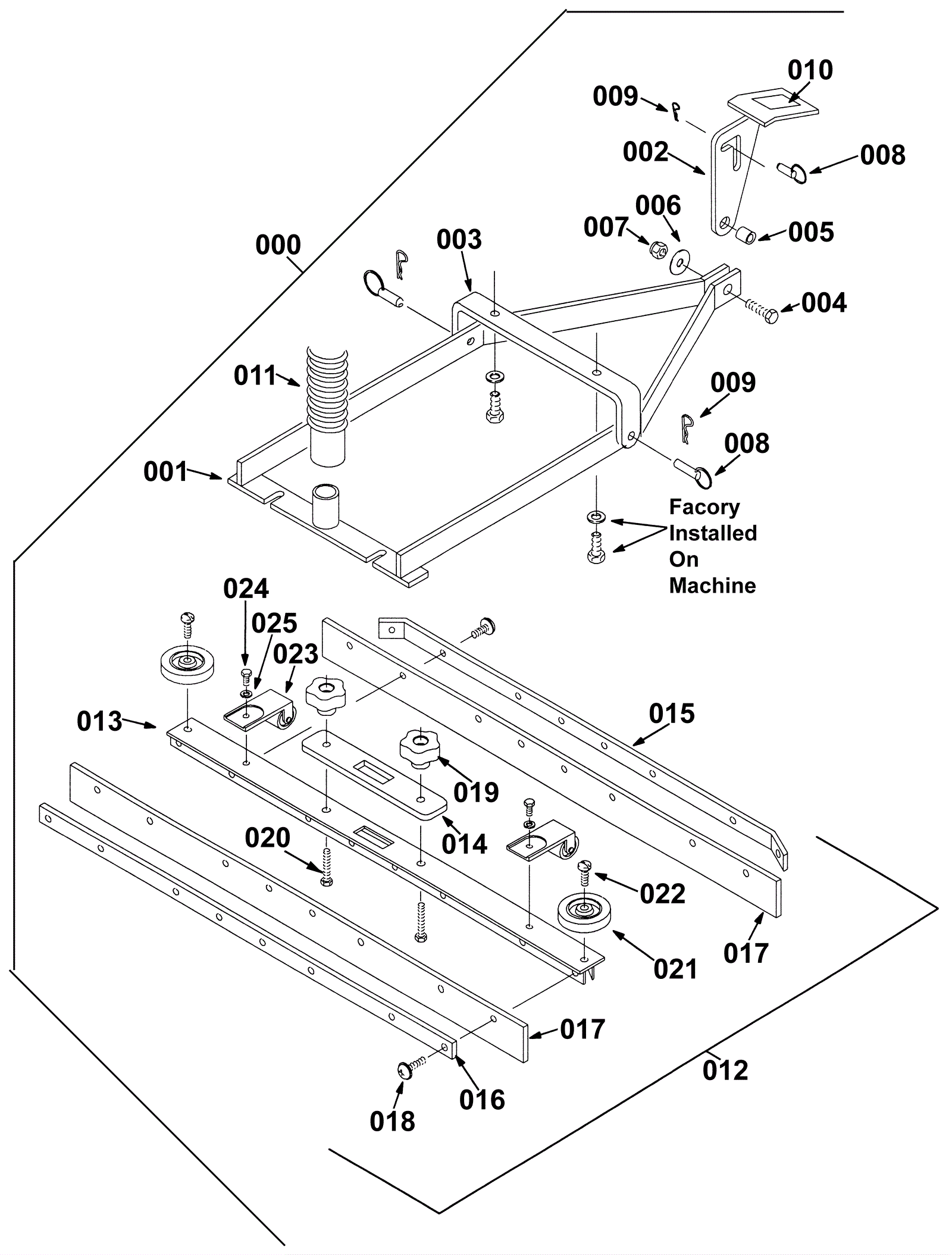

000a |
175-9020
|
27 inch (680mm) squeegee and mount assembly |
1 |
Includes 001-025 |
|
000b |
175-1500
|
34 inch (860mm) squeegee and mount assembly (OBSOLETE) |
1 |
Includes 001-025 |
|
000c |
175-9004
|
40 inch (1010mm) squeegee and mount assembly (OBSOLETE) |
1 |
Includes 001-025 |
|
001 |
175-1509
|
Squeegee lift weldment |
1 |
|
|
002 |
175-1510
|
Lifting pedal |
1 |
|
|
003 |
175-1511
|
Squeegee mounting bracket |
1 |
|
|
004 |
999-0649
|
Bolt 3/8-16 x 1 1/4 hex head stainless steel |
1 |
|
|
005 |
175-1512
|
Spacer |
1 |
|
|
006 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
1 |
|
|
007 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
1 |
|
|
008 |
175-0513
|
DRIVER ASSY, PAD, 20.0D (Tennant Industrial) |
3 |
|
|
009 |
175-1514
|
Cotter hair pin |
3 |
|
|
010 |
175-2745
|
Non-slip pad |
1 |
|
|
011 |
175-0887
|
Vacuum hose 1 1/2 x 33 inch |
1 |
|
|
012a |
175-0886
|
27 inch squeegee assembly |
1 |
Included in 000a |
|
012b |
175-1515
|
34 inch (860mm) squeegee assembly |
1 |
Included in 000b |
|
012c |
175-1516
|
40 inch (1010mm) squeegee assembly |
1 |
Included in 000c |
|
013a |
175-1067
|
27 inch squeegee weldment |
1 |
Included in 000a |
|
013b |
175-1517
|
34 inch (860mm) squeegee weldment |
1 |
Included in 000b |
|
013c |
175-1070
|
40 inch squeegee weldment |
1 |
Included in 000c |
|
014 |
175-1055
|
Gasket |
1 |
|
|
015a |
175-1069
|
27 inch rear squeegee plate |
1 |
Included in 000a |
|
015b |
175-1518
|
34 inch (860mm) rear squeegee plate |
1 |
Included in 000b |
|
015c |
175-1519
|
40 inch (1010mm) rear squeegee plate |
1 |
Included in 000c |
|
016a |
175-1059
|
27 inch (680mm) front squeegee plate |
1 |
Included in 000a |
|
016b |
175-1520
|
34 inch (860mm) front squeegee plate |
1 |
Included in 000b |
|
016c |
175-1521
|
40 inch (1010mm) front squeegee plate |
1 |
Included in 000c |
|
017a |
175-2036
|
Squeegee blade 27 inch (680mm) urethane |
2 |
Included in 000a |
|
017b |
175-2980
|
Squeegee blade 33 inch (840 mm) urethane |
2 |
Included in 000b |
|
017c |
175-2026
|
Squeegee blade 40 inch (1010mm) urethane |
2 |
Included in 000c |
|
018 |
999-0454
|
Screw 10-24 x 1/2 truss head phillips zinc plated |
18-28 |
|
|
019 |
175-2812
|
Knob |
2 |
|
|
020 |
999-0688
|
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
2 |
|
|
021 |
175-0117
|
Guide wheel with bushing |
2 |
|
|
022 |
999-1039
|
Screw 5/16-18 x 1 1/2 truss head phillips stainless steel |
2 |
|
|
023 |
175-3091
|
Squeegee roller assembly |
2 |
|
|
025 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
