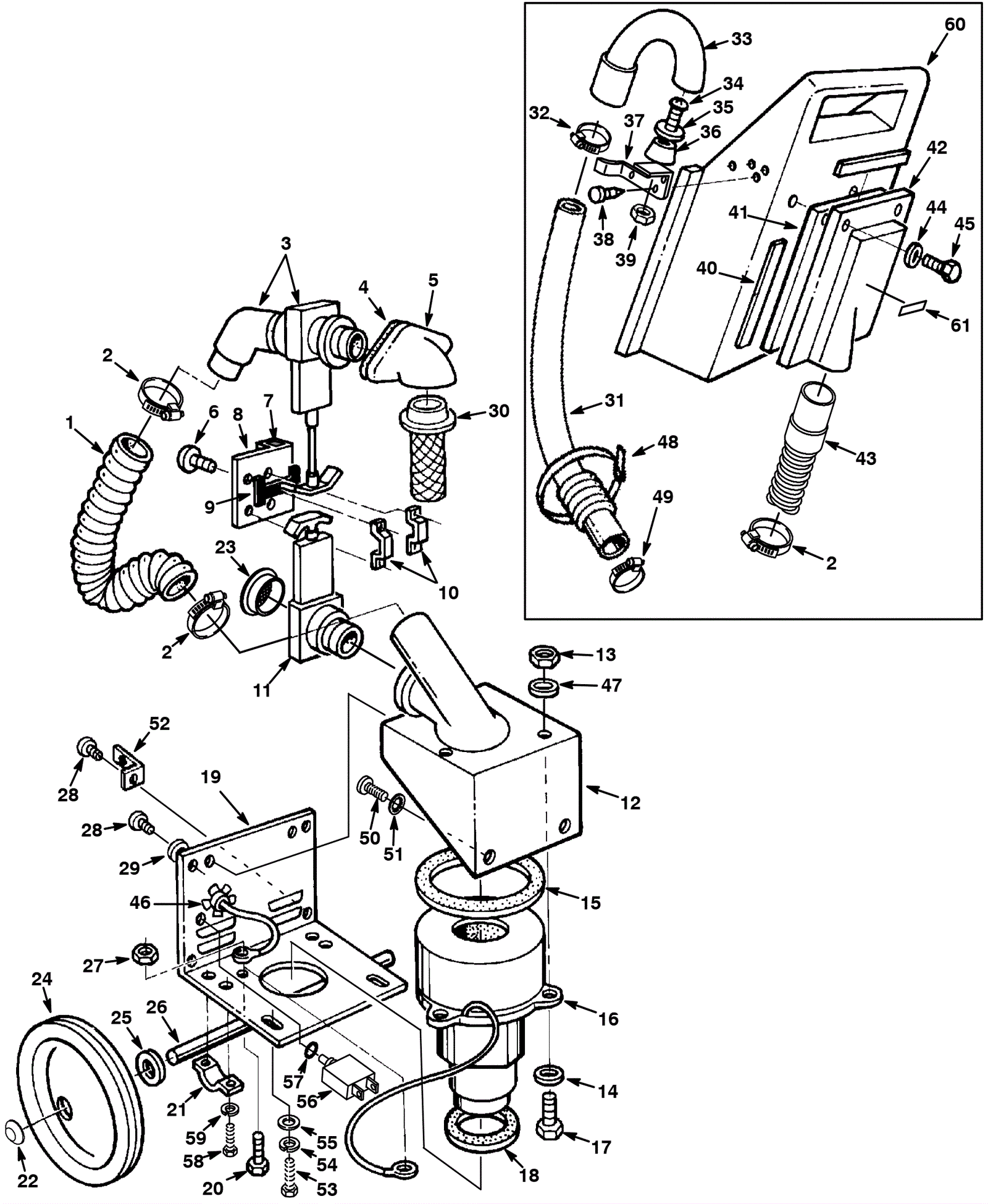

Base and Handle Assembly - Pump-Out Model

#PartDescription ReqNotesAvailability
1 175-1578 Vacuum hose 2 x 13 inch 1
2 175-2057 Hose clamp 3
3 175-1584 Gate valve (OBSOLETE) 1
4 175-1575 Elbow gasket 1
5 175-1574 Vacuum tube elbow 1
6 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel 4
7 175-5756 Pump-out instruction decal 1
8 175-1586 Air valve handle 1
9 175-1587 Spacer 1
10 175-5735 Air valve bracket 2
11 175-1594 Drain valve 1
12 175-5734 Vacuum motor mounting housing 1
13 999-0152 Nut 1/4-20 nylon insert lock zinc plated 3
14 999-0016 Washer 1/4 flat plain finish 3
15 175-6085 Gasket 1
16a 175-1570 120V 2 stage vacuum motor tangential 1 (OEM) (includes 16c)
16b 991-9278 120V 2 stage vacuum motor dual ball tangential 1 (NON-OEM)
16c 275-5835 Carbon brush (pkg of 2) 1
17 999-0682 Bolt 1/4-20 x 3 1/2 hex head grade 5 zinc plated 3
18 175-1566 Vacuum motor gasket (OBSOLETE) 1
19 175-1565 Pump out cover plate (OBSOLETE) 1
20 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel 1
21 175-6098 Axle bracket 2
22 175-6097 Hub cap 2
23 175-5743 Valve gate screen 1
24 175-6096 Wheel 2
25 999-0187 Washer 1/2 flat plain finish 2
26 175-1561 Axle .5D X 19.17L [C-NOTE] 1
27 999-0356 Nut 10-24 lock stainless steel 3
28 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc 6
29 999-0016 Washer 1/4 flat plain finish 6
30a 675-9887 Shut-off float 1 (OEM)
30b 991-5136 Shut-off float 1 (NON-OEM)
31a 175-7204 Drain hose assembly (OBSOLETE) 1 (includes 31b-33 and 36)
31b 175-5736 Drain hose 1
32 997-2000 Hose clamp 1
33 175-5737 1 1/2 inch PVC downspout (OBSOLETE) 1
34 999-1195 Screw 10-24 x 1 1/4 round head phillips zinc plated 1
35 999-0393 Washer 3/16 flat aluminum 1
36 375-4020 Plug (OBSOLETE) 1
37 175-5739 Drain hose bracket 1
38 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated 4
39 999-0442 Nut 10-24 nylon insert lock stainless steel 1
40 175-5741 Bumper tape (TENNANT INDUSTRIAL) 1
41 175-5740 Foam filter 1
42a 275-5224 Filter housing (teal) 1 (teal)
42b 275-6162 Filter housing 1 (gray)
43a 175-5742 Vacuum hose with cuff 1 1/2 x 16 inch (OBSOLETE) 1
43b 175-2017 Inlet tube 1
44 999-0006 Washer 3/16 flat zinc plated 4
45 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 4
46 175-6158 Nut 1/2 conduit 1
47 999-1119 Washer 1/4 x 1 fender zinc plated 3
48 175-0921 Wire tie 1
49 997-2000 Hose clamp 1
50 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel 2
51 175-4544 Washer M6 locking 2
52 175-1567 Drain hose support 1
53 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
54 999-0034 Washer 3/8 split lock plain finish 2
55 999-0617 Washer 3/8 x 1 flat stainless steel 2
56 175-6061 12amp circuit breaker 1
57 175-4494 Washer M10 1
58 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel 4
59 999-0632 Washer 1/4 split lock stainless steel 4
60a 275-5219 Handle (teal) 1
60b 275-6082 Handle (gray) 1
61 N/A Not available (decal)
