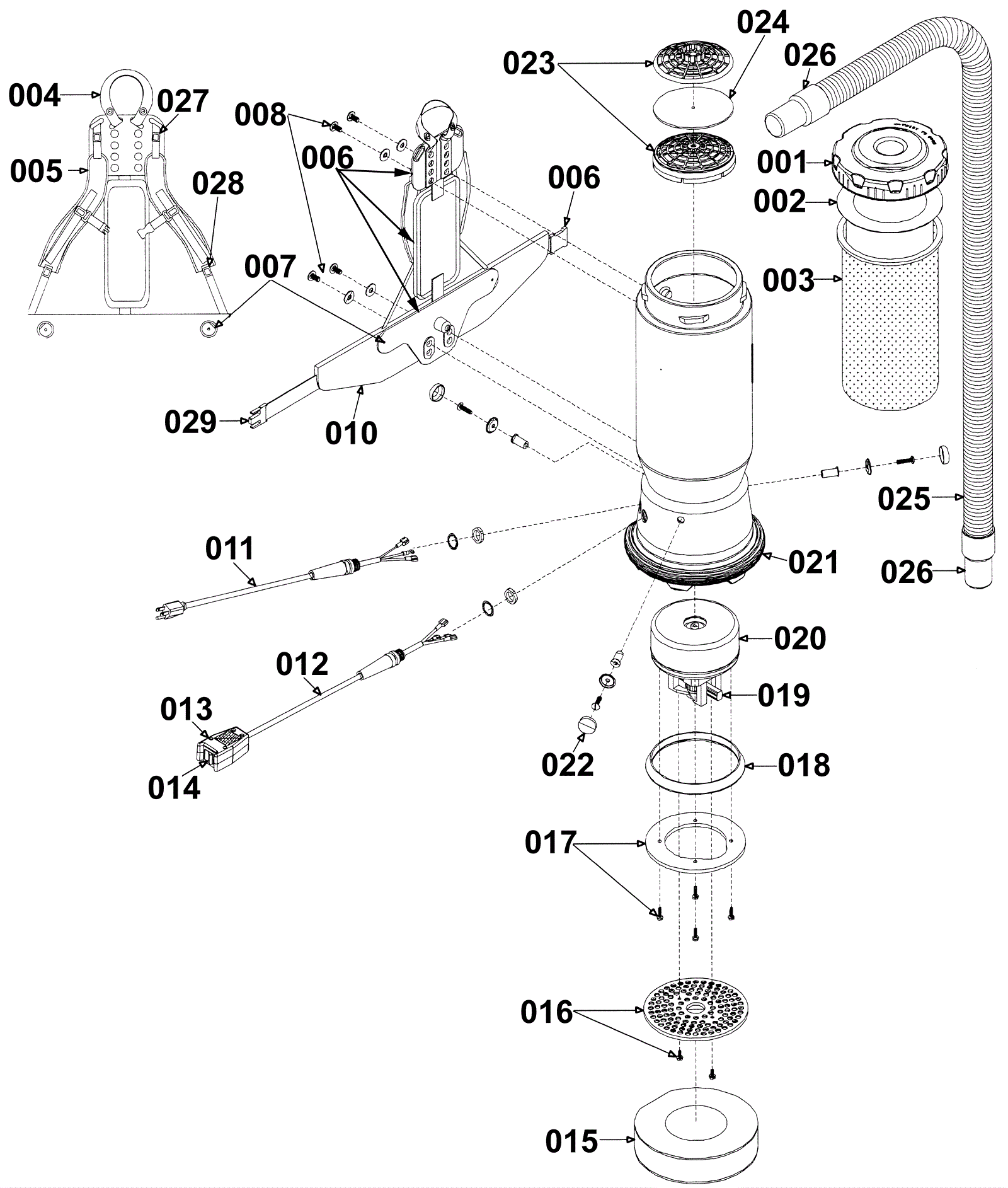

TRAILBLAZER Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-1886 Green twist cap $84.48 1 usually ships 1-5 days
002a 175-3601 Filter bags (10 pack) $27.56 1 OEM usually ships 1-5 days
002b 991-6013 6 quart paper bag (pkg of 10) $12.83 2 (NON-OEM) ships same day
002c 991-9146 6qt paper vacuum bags (pkg of 10) $10.76 1 (NON-OEM) usually ships 5-16 days
003 175-1873 6 quart microcloth filter $51.70 1 usually ships 1-5 days
004 175-1781 Carry handle with rivet and washer set $17.36 1 usually ships 1-5 days
005a 175-1791 Shoulder strap assembly with sternum strap $50.80 1 ships same day
005b N/A Not available Call for price 1 Strap and two buckles usually ships 3-26 days
006 175-1800 Two piece backplate assembly with center pad $69.85 1 usually ships 1-5 days
007 175-1801 Nut barrel set kit $15.07 1 usually ships 1-5 days
008 175-1811 Backplate connection plate $43.34 1 usually ships 1-5 days
009 175-1862 Waist belt keeper $12.65 1 usually ships 1-5 days
010a 175-1821 Waist belt $156.09 1 usually ships 1-5 days
010b 175-1822 Two-piece system complete backplate $172.70 1 usually ships 1-5 days
011 175-1887 Power cord assembly 16/3 x 18 inches $40.04 1 usually ships 5-16 days
012a 175-1831 Cord switch assembly kit with box $86.24 1 usually ships 1-5 days
012b 175-1844 Cord switch with crimps $38.28 1 usually ships 1-5 days
014 N/A Not available Call for price 1 (on/off switch) usually ships 3-26 days
015 175-1888 Sound muffler $50.71 1 usually ships 1-5 days
016 175-1890 Plastic air diffuser with screws $34.54 1 usually ships 1-5 days
017a 175-1907 Motor compression ring with scews $35.42 1 usually ships 1-5 days
017b 175-1828 Compression ring kit $11.66 1 usually ships 1-5 days
018 175-1908 Tetraseal $27.28 1 usually ships 1-5 days
019 175-1909 Carbon brush set $37.95 1 usually ships 1-5 days
020a 175-1910 Vacuum motor with crimps (OBSOLETE) $191.51 1 usually ships 1-5 days
020b 175-1911 Vacuum motor with rectifier and crimps (OBSOLETE) $243.32 1 usually ships 1-5 days
020c 175-1894 Fan motor with rectifer $65.12 1 usually ships 1-5 days
020d 175-1916 Motor ground connections and wire clamp kit $16.17 1 usually ships 1-5 days
021 175-1922 Bottom bumper $21.23 1 usually ships 1-5 days
022 175-1931 Motor mounting system set $29.15 1 usually ships 1-5 days
023 175-1534 Filter dome with foam media $31.24 1 usually ships 1-5 days
024a 175-1537 Foam media for dome filter $4.73 1 usually ships 1-5 days
024b 175-1554 2-pack high filtration disk $28.60 1 Optional usually ships 1-5 days
025 175-1923 Static dissipating vacuum hose with cuffs $88.88 1 usually ships 1-5 days
026 175-1860 Swivel replacement hose cuff 1-1/2 inches $23.54 1 usually ships 5-16 days
027 175-1793 Shoulder strap adjustment buckle top $8.47 1 usually ships 5-16 days
028 175-1799 Shoulder strap adjustment buckle bottom $8.47 1 usually ships 5-16 days
029 175-1814 Waist belt latch $12.65 1 usually ships 1-5 days
N/S 175-1861 Extension cord with cord wrap 50 feet $84.37 1 usually ships 5-16 days
N/S 175-1921 Motor crimp kit $25.19 1 Kit not shown usually ships 1-5 days
