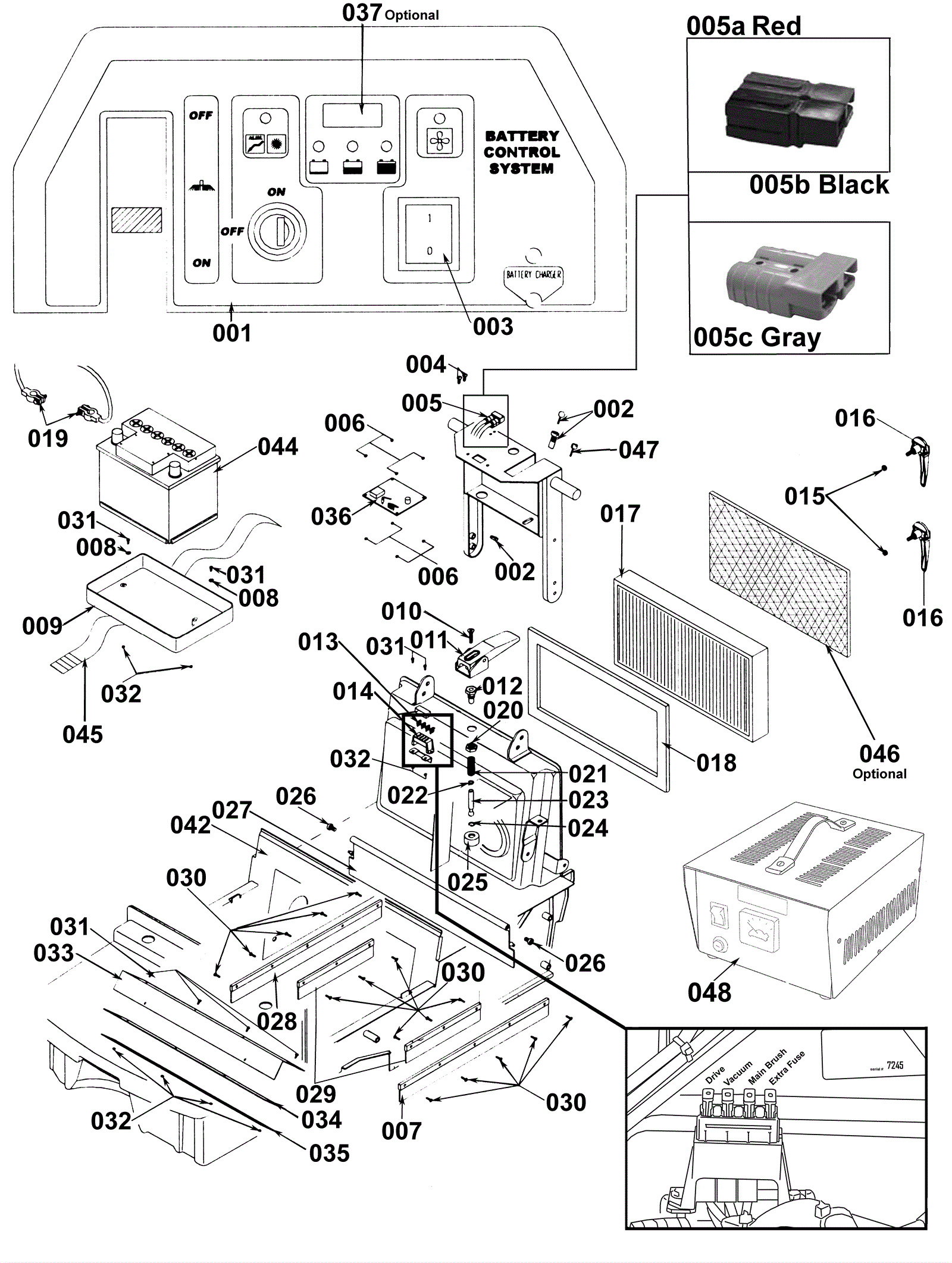

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
203-3124
|
Dashboard plate |
1 |
|
|
002 |
203-3125
|
Key switch |
1 |
|
|
003 |
203-3126
|
Bipolar switch |
1 |
|
|
004 |
999-0172
|
Screw 6-32 x 1 1/8 round head slotted zinc plated |
2 |
(use with 999-0195) |
|
005a |
991-2117
|
Battery charger connector (red) |
1 |
|
|
005b |
991-2118
|
Battery charger connector (black) |
1 |
|
|
005c |
991-2104
|
50amp charger plug SB50 only (gray) |
1 |
|
|
006 |
203-2041
|
Nut M5 |
8 |
|
|
007 |
203-3154
|
Left side flap |
1 |
|
|
008 |
203-3130
|
Washer 5 x 10 (OBSOLETE) |
2 |
|
|
009 |
203-3155
|
Battery container |
1 |
|
|
010 |
203-2893
|
Screw |
1 |
|
|
011 |
203-3131
|
Complete filtershakers lever |
1 |
|
|
012 |
203-3132
|
Filtershakers rail |
1 |
|
|
013a |
203-3133
|
30amp fuse |
4 |
(OEM) |
|
013b |
991-5160
|
30amp fuse |
4 |
(NON-OEM) |
|
014 |
203-3134
|
Fuse box and cover |
1 |
|
|
015 |
999-0579
|
Nut M8-1.25 hex coarse thread zinc |
2 |
|
|
016 |
203-3135
|
Filter fixing bracket |
1 |
|
|
017a |
203-3136
|
Hospital grade filter, washable |
1 |
(OEM) |
|
017b |
203-1258
|
Standard paper filter |
1 |
(OEM) |
|
017c |
991-9077
|
Polyester panel filter (OBSOLETE) |
1 |
(NON-OEM) |
|
018 |
203-3137
|
Filter gaskets kit |
1 |
|
|
019 |
203-3138
|
Electrical installation |
1 |
|
|
021 |
203-3139
|
Filtershakers spring |
1 |
|
|
022 |
175-3779
|
Gasket |
1 |
|
|
024 |
203-5087
|
Seeger ring |
1 |
|
|
025 |
203-3142
|
Bearing |
1 |
|
|
026 |
203-3143
|
Screw 10 x 16 |
2 |
|
|
027 |
203-3144
|
Backside flap |
1 |
|
|
028 |
203-3145
|
Right side flap |
1 |
|
|
029 |
203-3146
|
Inner flap |
2 |
|
|
030 |
203-1166
|
Screw M4 x 16 |
16 |
|
|
031 |
203-3260
|
Screw 4 x 16 |
8 |
|
|
032 |
203-3202
|
Nut M4 |
8 |
|
|
033 |
203-3015
|
Fixer flap |
1 |
|
|
034 |
203-3016
|
Front drawer rubber |
1 |
|
|
035 |
203-3150
|
Front drawer flaps kit |
|
|
|
036 |
203-3148
|
Circuit board |
1 |
|
|
037 |
203-3147
|
Hourmeter |
1 |
|
|
042 |
203-3129
|
Adhesive kit for front drawer |
1 |
|
|
044a |
162-0042
|
12V 115Ah AGM battery (Group 31) (SNSR) |
1 |
|
|
044b |
998-0060
|
DT Battery cable kit |
1 |
|
|
045 |
203-4240
|
Belt |
1 |
|
|
046 |
203-1259
|
Pre-filter |
1 |
|
|
047 |
991-1634
|
Key (pkg of 2) |
1 |
|
|
048a |
162-9014
|
Gel battery charger with red and black plugs |
1 |
|
|
048b |
998-0059
|
DC cord with red/black plug for gel charger |
1 |
|
|
048c |
162-9015
|
Gel battery charger |
1 |
|
|
048d |
162-1006
|
Control board fuse |
|
|
|
N/S |
203-3017
|
Front drawer |
1 |
|
|
N/S |
991-1310
|
3.0 amp AGC glass fuse |
1 |
fuse for battery charger |
|
N/S |
189-2038
|
1.6A fuse |
1 |
|
|
