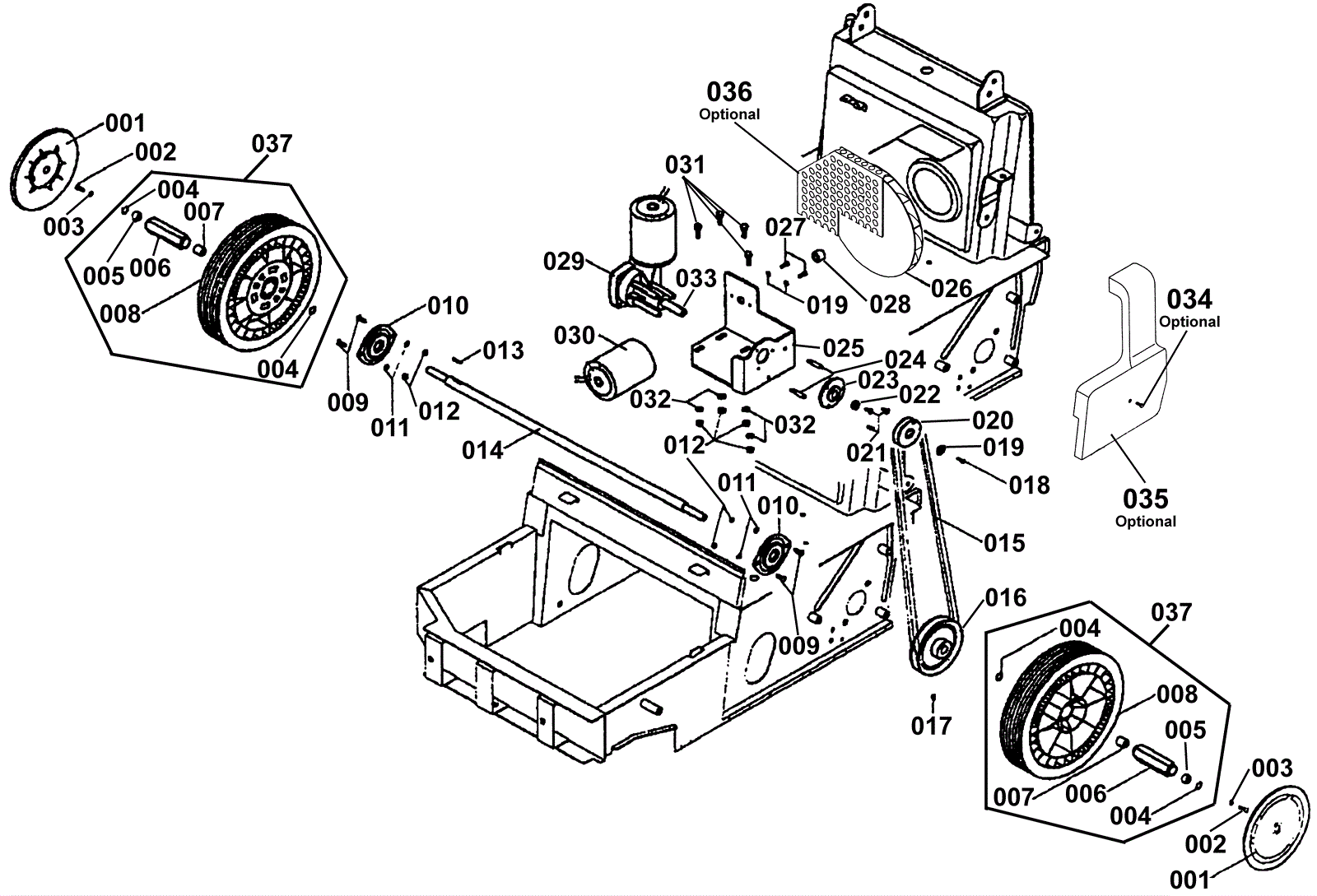

SCOUT28CTX Drive Assembly

#PartDescriptionPriceReqNotesAvailability
001 203-3292 Wheel cover, blue $8.62 2 usually ships 1-5 days
002 203-2109 Screw 6 x 10 $2.91 2 ships same day
003 203-1171 Washer 6 x 24 $2.29 2 ships same day
004 203-3023 Outer snap ring $3.60 4 usually ships 6-17 days
005 203-3024 Bearing $208.41 2 usually ships 6-17 days
006 203-3116 Hexagonal bushing $45.55 2 usually ships 1-5 days
007 203-3115 Bearing $67.13 2 usually ships 6-17 days
008 203-3025 Wheel $104.65 2 usually ships 6-17 days
009 203-3026 Screw M6 x 16 $4.34 4 usually ships 6-17 days
010 203-3027 Bearing and flange $12.94 2 ships same day
011 203-1291 Washer $4.22 4 usually ships 6-17 days
012 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 8 ships same day
013 203-2079 Key 5x5x25 $5.22 1 usually ships 6-17 days
014 203-3028 Drive shaft $159.98 1 usually ships 6-17 days
015 203-3029 Main belt $33.50 1 usually ships 6-17 days
016 203-3030 Pulley $140.89 1 usually ships 1-5 days
017 203-3031 Dowel 6 x 10 $4.34 1 usually ships 1-5 days
018 203-3197 Screw M4 x 16 $4.34 1 usually ships 1-5 days
019 203-2168 Washer 5 x 20 $2.45 3 usually ships 1-5 days
020 203-3032 Pulley $50.56 1 usually ships 1-5 days
021 203-4478 Screw $3.20 3 usually ships 6-17 days
022 203-2067 Bearing $27.03 1 usually ships 1-5 days
023 203-3033 Bearing support $69.63 1 usually ships 1-5 days
024 203-1170 Belt support pin $6.94 2 usually ships 1-5 days
025 203-3034 Motor support $76.47 1 usually ships 1-5 days
026 203-3035 Fan $99.18 1 usually ships 6-17 days
027 203-3206 Screw M5 x 16 $1.97 2 ships same day
028 203-3037 Fan bushing (OBSOLETE) $10.85 1 usually ships 6-17 days
029 203-2844 Motor with gearbox $348.86 1 usually ships 1-5 days
030a 203-3118 Motor with smooth shaft $306.98 1 usually ships 6-17 days
030b 203-3042 Carbon brush $23.46 1 usually ships 1-5 days
031 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
032 189-1665 Washer $0.90 4 usually ships 1-5 days
033 203-3279 Key $15.27 1 usually ships 6-17 days
034 175-3899 Screw M6 x 10 (OBSOLETE) $3.00 1 optional usually ships 1-5 days
035 175-3900 Air conveyor $65.70 1 optional usually ships 1-5 days
036 175-3898 Fan guard $131.90 1 optional usually ships 1-5 days
037a 203-3040 Left wheel complete $354.34 1 Includes 004 thru 008 usually ships 6-17 days
037b 203-3039 Right wheel complete $340.42 1 Includes 004 thru 008 usually ships 1-5 days
N/S 203-3340 Retrofit motor kit $1,080.83 usually ships 1-5 days
