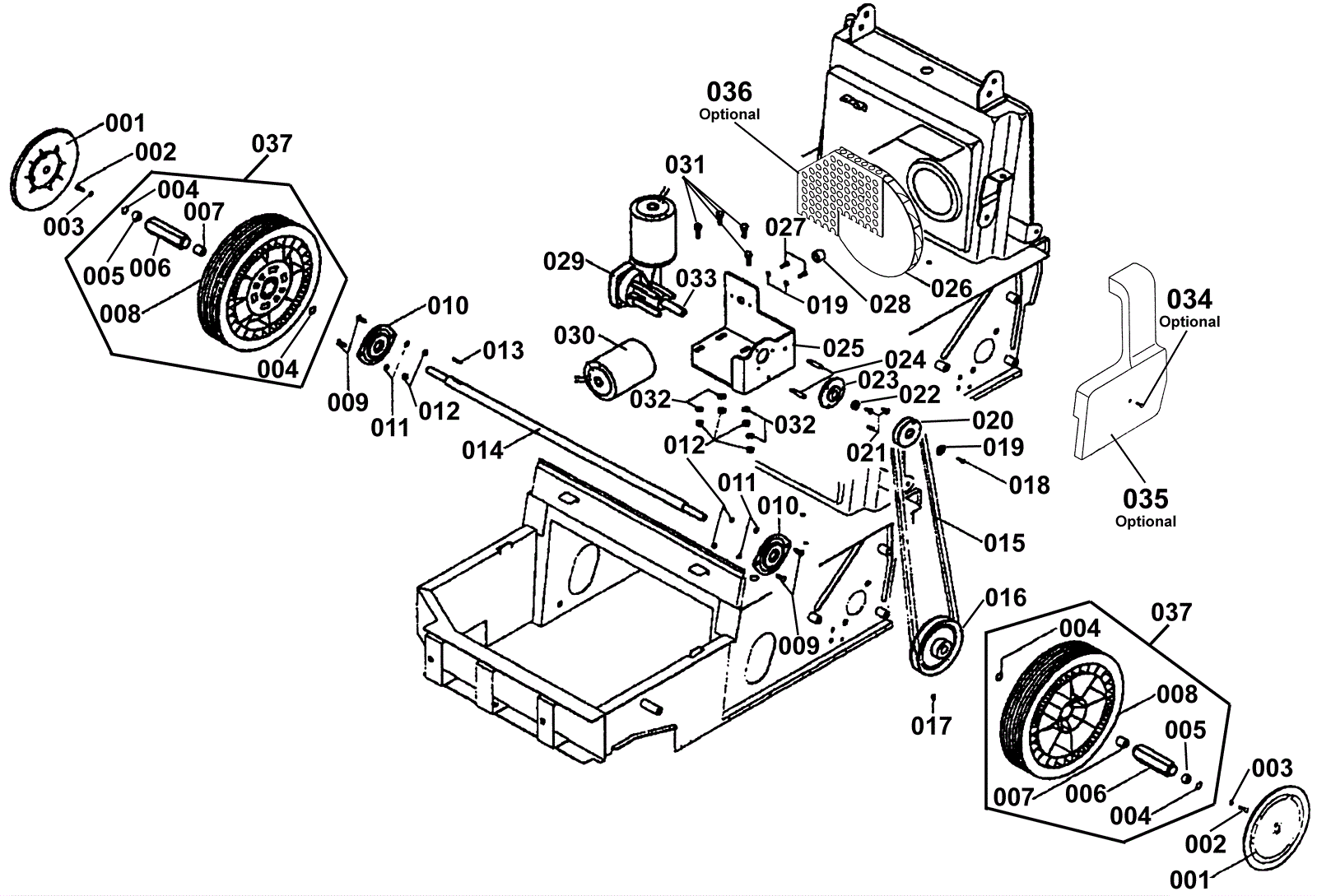

3620 Drive Group

#PartDescriptionPriceReqNotesAvailability
001a 175-4036 Wheel cover, blue $22.20 2 usually ships 1-5 days
001b 175-3870 Wheel cover gray $33.40 2 usually ships 5-16 days
002 999-1514 Screw M6-1 x 10mm button head socket stainless steel $0.99 2 ships same day
004 203-1171 Washer 6 x 24 $2.08 4 usually ships 5-15 days
005 175-3873 Bearing $233.20 2 usually ships 1-5 days
006 175-3610 Hexagonal bushing $96.80 2 usually ships 1-5 days
007 175-3866 Bearing $25.70 2 usually ships 3-28 days
008 175-3612 Drive wheel (OBSOLETE) $92.10 2 usually ships 1-5 days
009 175-3875 Screw M6-1 x 16mm $20.04 4 usually ships 5-16 days
010 175-3876 Axle support $268.60 2 usually ships 5-16 days
011 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
013 175-4038 Key $5.70 1 usually ships 1-5 days
014 175-3880 Drive shaft $194.87 1 usually ships 5-16 days
015a 175-3609 Drive belt $80.50 1 ships same day
015b 991-9214 BELT, DRIVE, BRUSH, RND $51.81 1 (NON-OEM) usually ships 5-16 days
016 175-3881 Pulley $173.20 1 usually ships 5-16 days
017 175-3882 Screw M6-1 x 10mm set $3.60 1 usually ships 5-16 days
018 175-4089 Screw M4-.7 x 12 mm hex head $3.60 1 usually ships 5-16 days
019 999-9100 Washer M5 flat stainless steel $5.83 3 ships same day
020 175-3885 Pulley $59.60 1 usually ships 5-16 days
021 175-3886 Screw 6 x 20 (OBSOLETE) $2.76 3 usually ships 1-5 days
022 175-3887 Bearing $41.90 1 usually ships 1-5 days
023 175-3888 Bearing support $102.60 1 usually ships 5-16 days
024 175-3889 Support pin $8.30 1 usually ships 1-5 days
025 175-3890 Motor support bracket $110.30 1 usually ships 1-5 days
026 175-3891 Fan $366.70 1 usually ships 1-5 days
027 175-3892 Screw 5 x 16 $3.30 2 usually ships 1-5 days
028 203-3037 Fan bushing (OBSOLETE) $10.85 1 usually ships 5-15 days
029 175-3894 Drive motor $821.80 1 usually ships 5-16 days
030a 175-3895 Drive motor $1,200.00 1 usually ships 1-5 days
030b 203-3042 Carbon brush $23.46 1 usually ships 1-5 days
031 175-4179 Screw M6 x 16mm $4.30 4 usually ships 5-16 days
032 999-1261 Washer M6 flat stainless steel $0.99 4 ships same day
033 175-4176 Square keyway $6.80 1 ships same day
034 175-3899 Screw M6 x 10 (OBSOLETE) $3.00 1 optional usually ships 1-5 days
035 175-3900 Air conveyor $65.70 1 optional usually ships 1-5 days
036 175-3898 Fan guard $131.90 1 optional usually ships 1-5 days
037 N/A Not available Call for price 2 (Complete wheel assembly) usually ships 3-26 days
