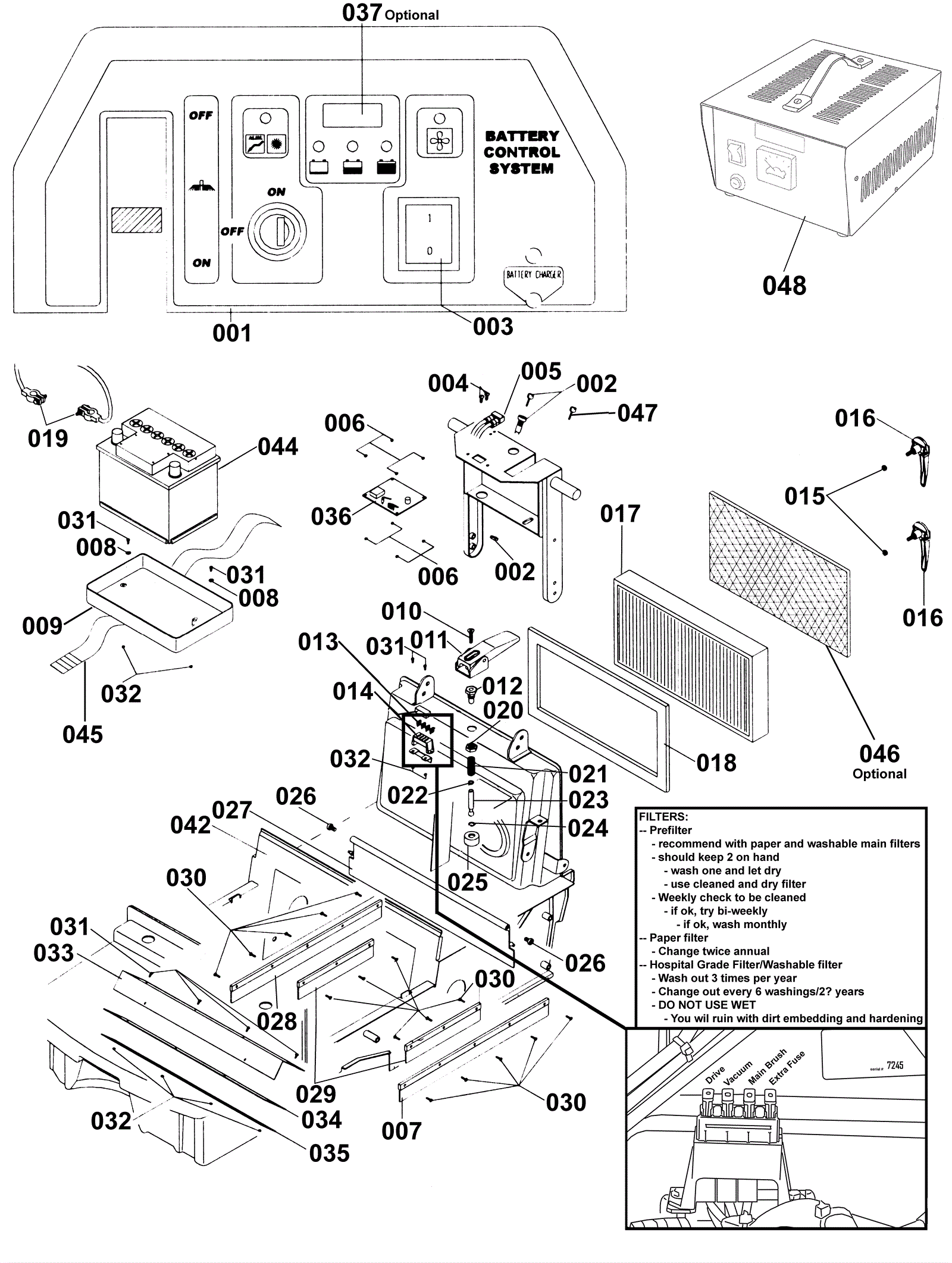

3620 Electrical/Filter Group

#PartDescriptionPriceReqNotesAvailability
001 175-3759 Dashboard plate $80.52 1 usually ships 1-5 days
002 175-3760 Key with ignition $273.90 1 usually ships 1-5 days
003 175-3762 Bipolar switch $46.31 1 usually ships 10-16 days
004 175-2895 Screw M5-0.8 x 20mm pan head $4.09 2 usually ships 10-16 days
005 991-2117 Battery charger connector (red) $11.59 1 ships same day
006 175-3765 Nut M5 $3.70 8 usually ships 1-5 days
007 175-3766 Left hand flap (gray) $90.20 1 usually ships 10-16 days
008 999-1515 Screw M4-.7 x 16mm flat head socket stainless steel $0.99 2 usually ships 1-5 days
009 175-3768 Battery container $163.79 1 usually ships 1-5 days
010 999-1422 Screw M6-1 x 16mm flat head zinc plated $2.26 1 ships same day
011 175-3770 Filtershaker lever $62.37 1 usually ships 1-5 days
012 175-3771 Filtershaker rail $77.55 1 usually ships 1-5 days
013 175-3772 30amp fuse $8.47 4 usually ships 1-5 days
013b 175-3772 30amp fuse $8.47 4 usually ships 1-5 days
014 175-3773 Fuse box and cover $168.08 1 usually ships 1-5 days
015 175-3774 Nut M8 $3.83 2 usually ships 1-5 days
016 175-3775 Handle (OBSOLETE) $64.70 2 usually ships 10-16 days
017a 203-3136 Hospital grade filter, washable $287.73 1 usually ships 1-5 days
017b 203-1258 Standard paper filter $231.02 1 usually ships 10-12 days
017c 991-9077 Polyester panel filter (OBSOLETE) $166.93 1 usually ships 14-32 days
018 175-3615 Filter gasket $116.49 1 ships same day
019 175-3776 Electrical insulation $1,135.64 1 usually ships 1-5 days
020 175-3777 Nut M18 hex $5.50 1 usually ships 1-5 days
021 175-3778 Spring $25.85 1 usually ships 1-5 days
022 175-3779 Gasket $9.57 1 usually ships 10-16 days
023 175-3780 Pin $28.27 1 usually ships 1-5 days
024 175-3781 Retaining ring $5.50 1 usually ships 1-5 days
025 175-3782 Filtershaker bar $55.33 1 usually ships 1-5 days
026 999-1516 Screw M10-1.5 x 16mm button head socket plain finish $1.20 2 usually ships 1-5 days
027 175-3784 Rear flap $89.10 1 usually ships 10-16 days
028 275-5807 Right hand flap $89.10 1 usually ships 10-16 days
029 175-3786 Inner flap skirt (gray) $60.28 2 ships same day
030 175-3787 Screw M3.5 x 9.5 flat head phillips $4.88 16 ships same day
032 175-3789 Nut M4 x .7 $4.88 8 usually ships 1-5 days
033 175-3790 Front guard clamp $45.43 1 usually ships 10-16 days
034 175-3624 Front rubber guard $37.51 1 usually ships 10-16 days
035 175-3625 Hopper skirt $27.83 1 usually ships 10-16 days
036 175-3791 Main circuit board $1,633.94 1 usually ships 10-16 days
037 175-3792 Hour meter $457.27 1 usually ships 1-5 days
042 375-9230 Front container gasket kit (TENNANT INDSUTRIAL) $30.14 1 usually ships 10-16 days
044a 162-0011 12V 105Ah wet battery (SNSR) $291.50 1 ships same day
044b 162-0042 12V 115Ah AGM battery (Group 31) $500.50 1 ships same day
044c 998-0060 DT Battery cable kit $24.57 1 usually ships 3-26 days
045 175-3793 Battery strap $19.95 1 usually ships 10-16 days
046 203-1259 Pre-filter $23.10 1 (Optional) ships same day
047 991-1634 Key (pkg of 2) $14.21 1 ships same day
