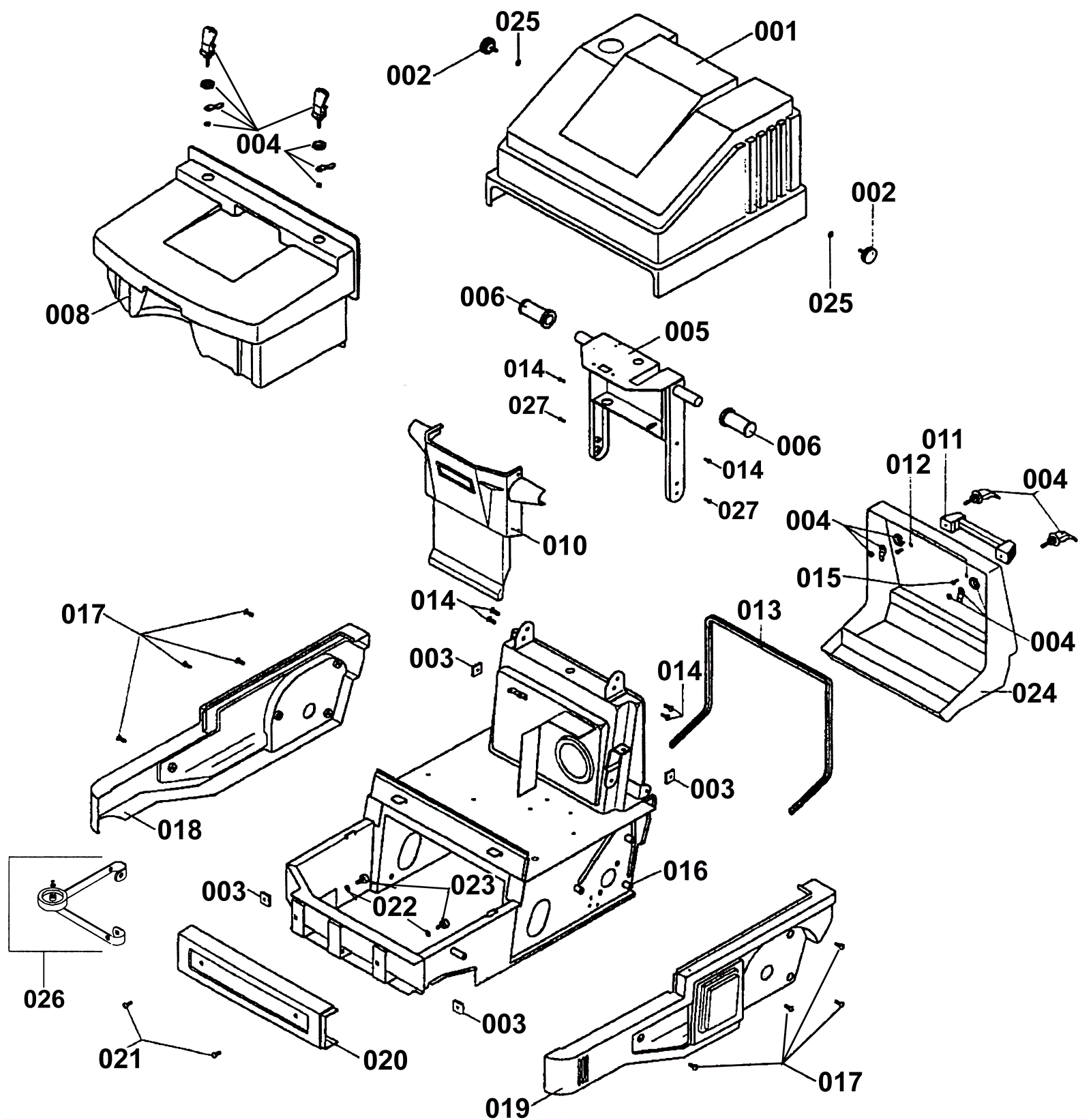

| # | Part | Description |
Req | Notes | Availability |
|---|
001a |
175-4024
|
Upper cover, blue |
1 |
|
|
001b |
175-4025
|
Upper cover, teal |
1 |
|
|
002 |
175-4026
|
Thumb screw |
2 |
|
|
003 |
175-3751
|
Nut M8 |
4 |
|
|
004 |
175-0186
|
Locking latch |
4 |
|
|
005 |
175-3750
|
Handle weldment |
1 |
|
|
006 |
175-3623
|
Handle grip |
2 |
|
|
007 |
175-4035
|
Tennant logo decal |
1 |
|
|
008a |
175-4027
|
Hopper assembly (blue) |
1 |
|
|
008b |
175-4028
|
Hopper assembly (teal) |
1 |
|
|
010 |
175-4029
|
Handle with gray cable casing |
1 |
|
|
011 |
175-4045
|
Handle |
1 |
|
|
012 |
999-0377
|
Washer 6 SAE flat plain finish |
1 |
|
|
013 |
175-3743
|
Gasket |
1 |
|
|
014 |
999-1257
|
Screw M6-1 x 16mm pan head Phillips |
8 |
|
|
015 |
999-0773
|
Screw M6-1 x 16mm flat socket head stainless steel |
2 |
|
|
016 |
175-4031
|
Frame (OBSOLETE) |
1 |
|
|
017 |
175-3746
|
Screw 8 x 10 |
8 |
|
|
018 |
175-4032
|
Cover, right side |
1 |
|
|
019 |
175-4033
|
Cover, left side |
1 |
|
|
020 |
175-4034
|
Front cover |
1 |
|
|
021 |
999-1512
|
Screw M8-1.25 x 16mm button head socket plain finish |
2 |
|
|
023 |
175-3742
|
Foot |
2 |
|
|
024 |
175-3741
|
Back drawer |
1 |
|
|
025 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
2 |
|
|
026 |
175-4030
|
Complete wallbumpers, right side (OBSOLETE) |
1 |
|
|
027 |
999-0910
|
Screw M8-1.25 x 25mm button head socket |
2 |
|
|
