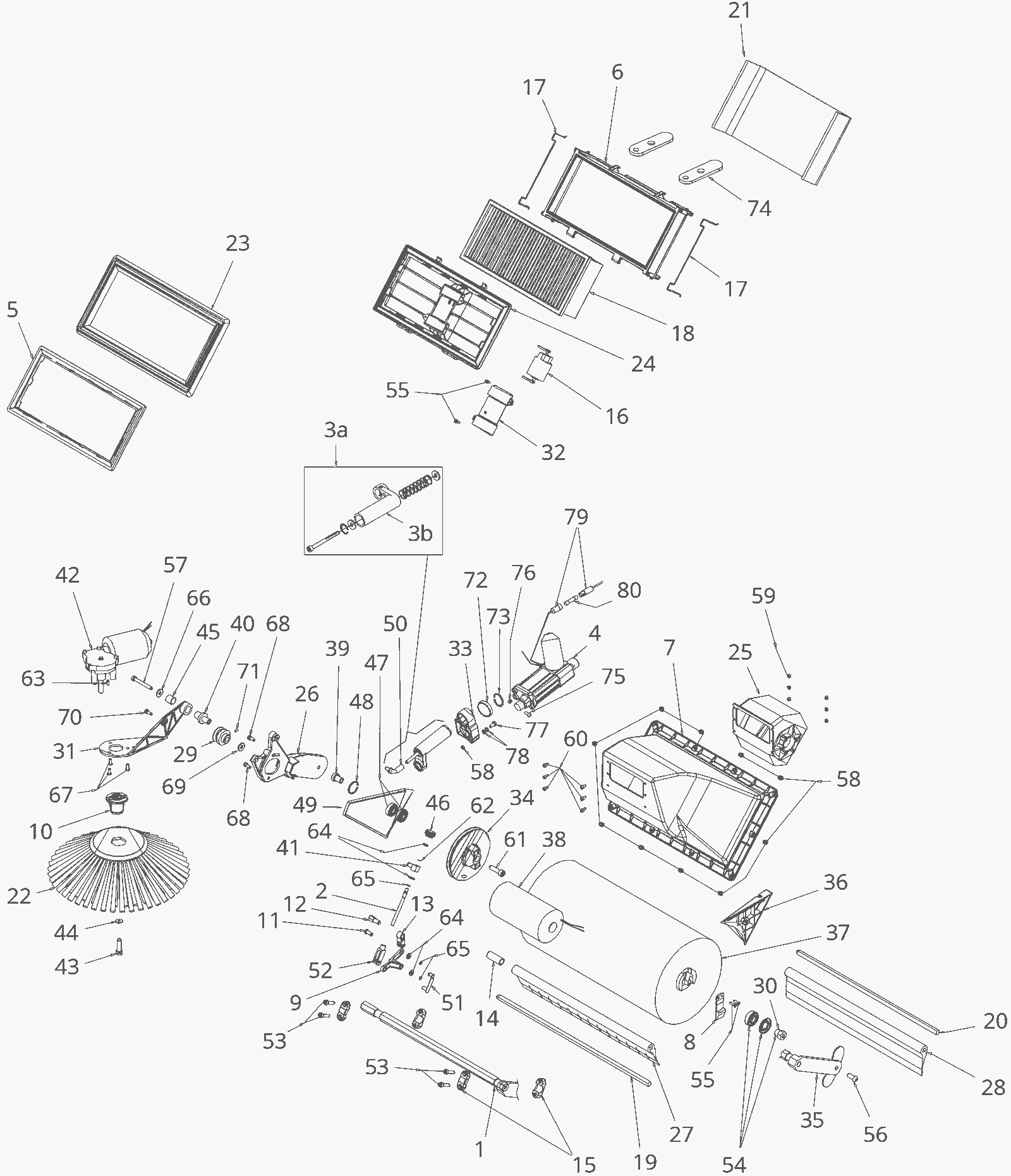

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-4114
|
Main brush drive shaft |
1 |
|
|
2 |
175-4115
|
Adjusting rod |
1 |
|
|
3a |
275-6276
|
Actuator guide assembly |
1 |
(includes 3b) |
|
3b |
175-4116
|
Actuator guide |
1 |
|
|
4 |
175-4117
|
Actuator |
1 |
|
|
5 |
175-4118
|
Filter frame plate |
1 |
|
|
6 |
203-3223
|
Filter frame |
1 |
|
|
7 |
175-4120
|
Blower housing |
1 |
|
|
8 |
175-4121
|
Locking retainer |
1 |
|
|
9 |
175-4122
|
Side brush driving arm |
1 |
|
|
10 |
175-4123
|
Side brush drive hub |
1 |
|
|
11 |
175-4124
|
Pin |
1 |
|
|
12 |
175-4125
|
Driving arm pin |
1 |
|
|
13 |
175-4126
|
Connecting rod |
1 |
|
|
14 |
175-4127
|
Skirt spacer |
1 |
|
|
15 |
175-4128
|
Main brush drive shaft support |
2 |
|
|
16 |
175-4129
|
Shaker motor |
1 |
|
|
17 |
175-4130
|
Filter frame retainer |
2 |
|
|
18a |
175-4131
|
Fluted paper filter |
1 |
(OEM) |
|
19 |
175-4132
|
Front skirt holder pin |
1 |
|
|
20 |
175-4133
|
Rear skirt holder pin |
1 |
|
|
21a |
175-4134
|
Pre-filter |
1 |
(OEM) |
|
21b |
991-9072
|
Pre-filter (OBSOLETE) |
1 |
(NON-OEM) |
|
22a |
203-3239
|
Side brush |
1 |
(OEM) |
|
22b |
991-7008
|
Side brush |
1 |
(NON-OEM) |
|
23 |
175-4136
|
Filter gasket |
1 |
|
|
24 |
175-4137
|
Shaker frame |
1 |
|
|
25 |
175-4138
|
Blower motor |
1 |
|
|
26 |
175-4139
|
Main brush arm |
1 |
|
|
27 |
175-4140
|
Front skirt |
1 |
|
|
28 |
175-4141
|
Rear skirt |
1 |
|
|
29 |
175-4142
|
Pulley |
1 |
|
|
30 |
175-4143
|
Main brush nut |
1 |
|
|
31 |
175-4144
|
Side brush arm |
1 |
|
|
32 |
175-4145
|
Shaker motor cover |
1 |
|
|
33 |
175-4146
|
Spring guide |
1 |
|
|
34 |
175-4147
|
Pulley |
1 |
|
|
35 |
175-4148
|
Main brush arm |
1 |
|
|
36 |
175-4149
|
Conveyor |
1 |
|
|
37a |
175-4150
|
Main brush with locking retainer |
1 |
(OEM) |
|
37b |
991-7009
|
Main brush with locking retainer |
1 |
(NON-OEM) |
|
38 |
175-4151
|
Main brush motor |
1 |
|
|
39 |
175-4152
|
Pulley pin |
1 |
|
|
40 |
175-4153
|
Rotation pin |
1 |
|
|
41 |
175-4154
|
Adjusting rod joint |
1 |
|
|
42a |
175-4155
|
Side brush motor |
1 |
|
|
42b |
189-0093
|
Snap Ring |
1 |
(for the shaft) |
|
43 |
175-4156
|
Screw M4 x 16mm |
1 |
|
|
44 |
175-4157
|
Washer M4 x 16mm |
1 |
|
|
45 |
175-4158
|
Bushing |
1 |
|
|
46 |
175-4159
|
Knob |
1 |
|
|
47 |
175-4160
|
Bearing |
2 |
|
|
48 |
175-4161
|
Snap ring |
1 |
|
|
49 |
175-4162
|
Brush belt |
1 |
|
|
50 |
175-4163
|
Ball joint |
1 |
|
|
51 |
175-4164
|
Arm |
1 |
|
|
52 |
175-4165
|
Linkage |
1 |
|
|
53 |
175-4166
|
Screw M6 x 20mm |
4 |
|
|
54 |
275-5837
|
Bearing with flange and nut |
1 |
|
|
55 |
175-4168
|
Screw M3.9 x 13mm |
4 |
|
|
56 |
999-1512
|
Screw M8-1.25 x 16mm button head socket plain finish |
1 |
|
|
57 |
175-4170
|
Screw M6 x 50mm |
1 |
|
|
58 |
999-0953
|
Nut M5-.8 hex nylon insert lock stainless steel |
12 |
|
|
59 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
6 |
|
|
60 |
175-4089
|
Screw M4-.7 x 12 mm hex head |
6 |
|
|
61 |
175-4174
|
Screw M8 x 35mm |
1 |
|
|
62 |
175-4175
|
O-ring |
1 |
|
|
63 |
203-3279
|
Key |
1 |
|
|
64 |
999-1261
|
Washer M6 flat stainless steel |
4 |
|
|
65 |
175-4087
|
Retaining ring |
3 |
|
|
66 |
203-1171
|
Washer 6 x 24 |
1 |
|
|
67 |
175-4179
|
Screw M6 x 16mm |
1 |
|
|
68 |
175-4180
|
Screw M5 x 12mm |
3 |
|
|
69 |
175-4181
|
Washer |
1 |
|
|
70 |
175-4180
|
Screw M5 x 12mm |
1 |
|
|
71 |
175-4182
|
Screw M4 x 8mm |
1 |
|
|
72 |
175-4183
|
Spacer |
1 |
|
|
73 |
175-4184
|
Retaining ring |
1 |
|
|
74 |
175-4185
|
Rubber filter latch |
2 |
|
|
75 |
275-6277
|
Screw M6 x 30 |
1 |
|
|
76 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
1 |
|
|
77 |
475-0369
|
SCREW, M5 X 30 |
2 |
|
|
78 |
999-0803
|
Washer M5 flat plain finish |
2 |
|
|
79 |
375-4015
|
Fuse Box |
1 |
|
|
80 |
175-4104
|
2.5amp charger and actuator fuse |
1 |
|
|
