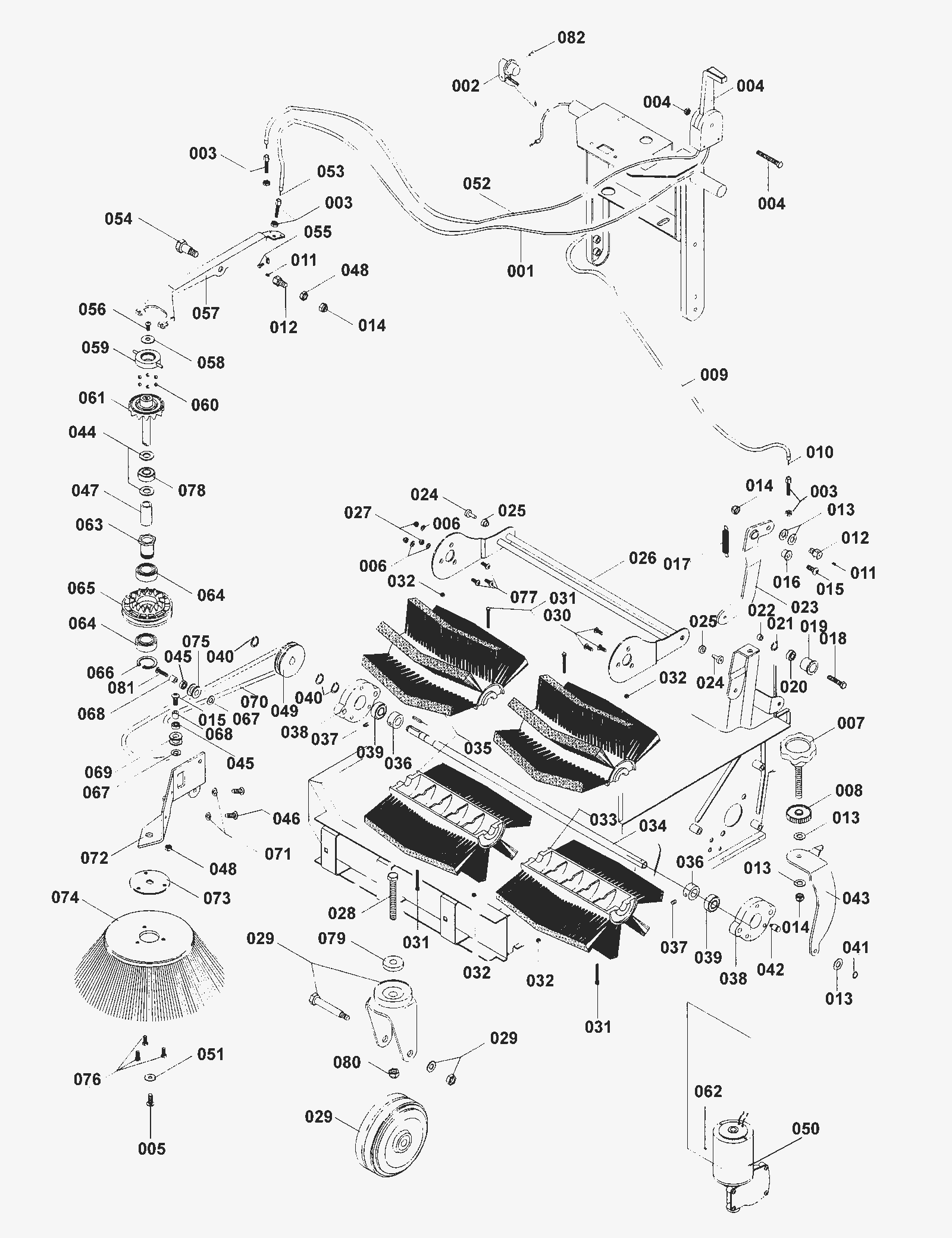

Brush Assembly

#PartDescription ReqNotesAvailability
001 175-3800 Side brush sheath 1
002 175-3801 Drive handle 1
003 175-3802 Cable adjuster(OBSOLETE) 3
004 175-3803 Side brush drive lever and cable assembly 1
005 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 1
006 175-3804 Washer 6 x 12 6
007 175-3805 Handwheel 1
008 175-3806 Nut M12 ring 1
009 175-3807 Drive cable sheath 1
010 175-3808 Drive cable (OBSOLETE) 1
011 175-3809 Screw M5-.8 x 6mm set 2
012 175-3810 Wire fixing screw 2
013 999-9097 Washer M8 flat stainless steel 7
014 175-3812 Nut M8 block 3
015 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 3
016 175-3814 Bushing 1
017 175-3627 Traction spring 1
018 175-3815 Screw 1
019 175-3816 Roller 1
020 175-3817 Bearing 1
021 175-3818 Retaining ring 1
022 175-3819 Spacer 1
023 175-2045 Bracket 1
024 175-3820 Screw M8 button head 2
025 175-3821 Rocker bushing 2
026 175-3822 Rocker (OBSOLETE) 1
027 175-3738 Nut M6 block 6
028 175-3823 Screw 12 x 60 1
029 175-3511 Caster wheel (gray) 1
030 175-3824 Screw M6 x 16mm 3
031 999-1226 Screw M5-.8 x 70mm socket head stainless steel 4
032 999-0740 Nut M5-.8 hex stainless steel 4
033a 175-3827 Center brush - CYLINDRICAL 1
033b 175-2055 white stiff main brush 1
033c 175-3829 Main brush set (brass) 1
034 175-3830 Brush shaft 1
035 175-2058 Square keyway 1
036 175-3831 Spacer 2
037 175-3832 Screw M6-1 x 5mm set 2
038 175-3833 Bearing support 2
039 375-9317 Main brush bearing 2
040 175-2063 Retaining ring 3
041 175-3834 Retaining ring 1
042 175-3835 Brush pin pivot 1
043 175-3836 Brush adjustment bracket 1
044 175-3837 Washer felt 2
045 175-2968 Bearing 2
046 175-3838 Screw M8-1.25 x 10mm hex head 2
047 175-3839 Spacer 1
048 175-3774 Nut M8 2
049 175-3840 Pulley 1
050 175-3841 Brush drive motor 1
051 999-1261 Washer M6 flat stainless steel 1
052 175-3843 Side brush cable casing 1
053 189-1891 Drive cable 1
054 175-2077 Bolt M17 x 34mm shoulder 1
055 175-3845 Clamp 1
056 175-3846 Screw M8-1.25 x 22mm hex head 1
057 175-3847 Brush lifting lever 1
058 175-3848 Washer 8 x 32 flat 1
059 175-3849 Bearing ring (OBSOLETE) 1
060 175-3608 Bearing ball (OBSOLETE) 6
061 175-3850 Brush tooth ring 1
062 175-3851 Key 3 x 3,7 1
063 175-3611 Bushing 1
064 175-3852 Ball bearing 2
065 175-3853 Idle toothed ring 1
066 175-3854 Retaining ring 1
067 175-3855 Washer nylon 2
068 175-3856 Spacer 2
069 175-3857 Pulley 1
070a 175-3617 Belt (clear) 1
070b 275-6067 Belt 1
071 999-9097 Washer M8 flat stainless steel 2
072 175-3859 Brush support 1
073 175-3860 Brush flange 1
074a 175-3861 Standard side brush 1
074b 175-3862 Abrasive side brush 1
075 175-3863 Pulley 1
076 175-3864 Screw M6-1 x 10mm hex head flange 3
077 175-3865 Screw 6 x 20 3
078 175-3866 Bearing 1
079 175-3867 16mm spacer 1
080 175-4081 Nut M12 1
081 175-3869 Screw 8 x 35 1
