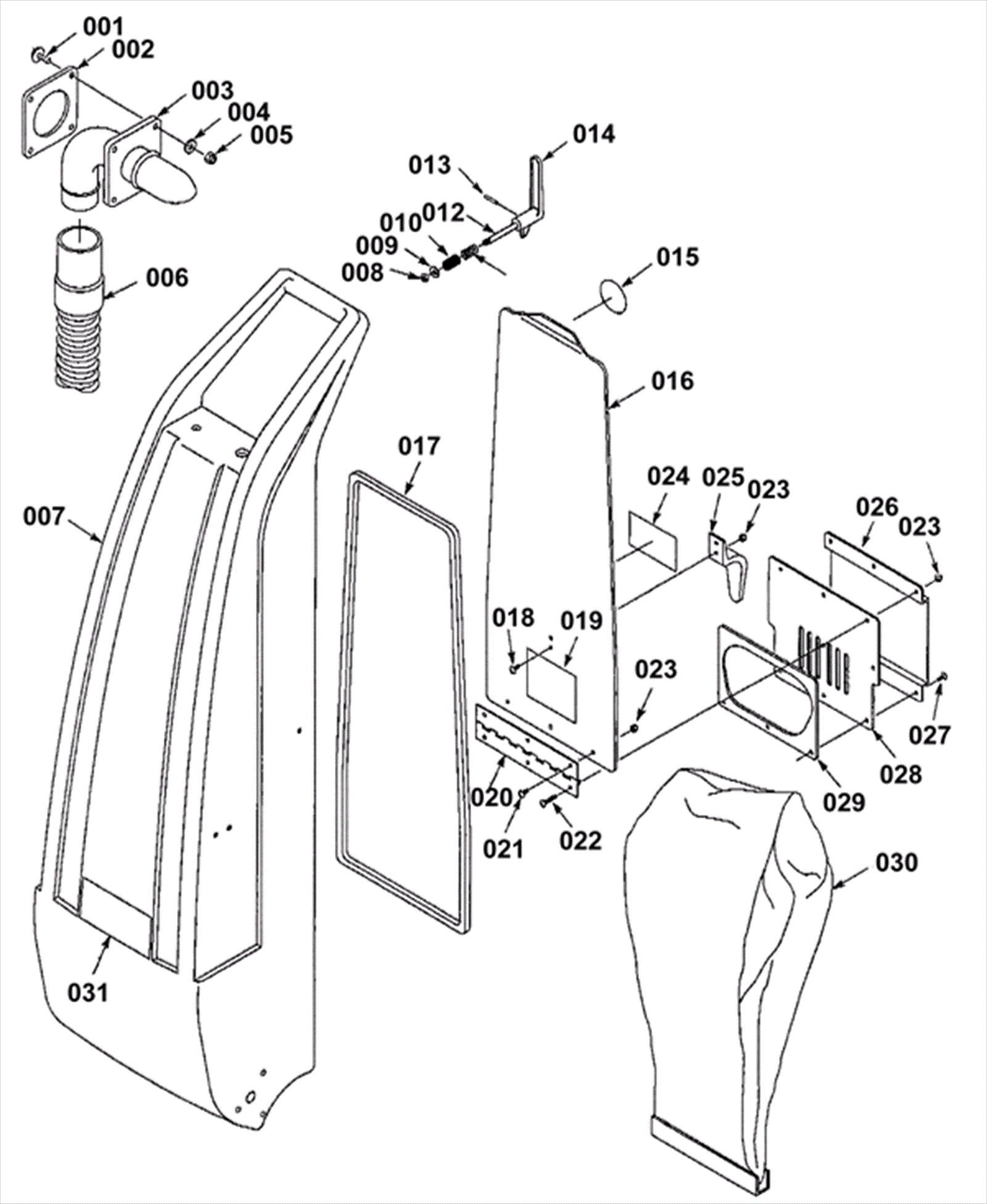

MAGNATWIN2600 608231 Upper Unit Diagram

#PartDescriptionPriceReqNotesAvailability
001 999-1077 Screw 1/4-20 x 1/2 truss head phillips stainless steel $2.24 4 ships same day
002 175-1021 Tube mounting bracket $85.30 1 usually ships 5-16 days
003 175-1745 Inlet elbow (black) $871.90 1 usually ships 1-5 days
004 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
005 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
006a 175-1713 Hose with cuff 1 1/2 inches $39.50 1 usually ships 1-5 days
006b 175-1714 Hose with cuff 2 inches $108.19 1 usually ships 5-16 days
007 175-1746 Housing handle (green) $323.90 1 usually ships 1-5 days
008 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 1 ships same day
009 175-3515 Battery cover $1,038.90 1 usually ships 1-5 days
010 175-1747 Spring guard $12.90 1 usually ships 5-16 days
011 175-1748 Spring $6.20 1 usually ships 5-16 days
012 175-1749 Latch shaft $19.00 1 usually ships 5-16 days
013 175-1750 Roll pin $3.60 1 usually ships 5-16 days
014 175-1751 Handle latch $24.10 1 usually ships 5-16 days
015 N/A Not available Call for price 1 usually ships 3-26 days
016 275-9787 Door assembly with decals $100.10 1 usually ships 1-5 days
017 175-1753 Rear cover gasket $26.10 1 usually ships 5-16 days
018 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 2 ships same day
019 175-1754 Important decal $4.60 1 usually ships 1-5 days
020 175-1755 Hinge $14.50 1 usually ships 1-5 days
021 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 3 ships same day
022 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 3 ships same day
023 175-1075 Nut acorn $3.30 8 usually ships 1-5 days
024 175-0040 Warning decal (OBSOLETE) $4.60 1 usually ships 1-5 days
025 175-1756 Cord hook $21.10 1 ships same day
026 175-1757 Exhaust cover (black) $28.50 1 usually ships 1-5 days
027 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 3 ships same day
028 175-1758 Exhaust plate (black) $36.20 1 usually ships 1-5 days
029 175-1759 Exhaust gasket $5.60 1 usually ships 1-5 days
030a 275-6324 Paper vacuum bags (pkg of 10) $43.90 1 OEM usually ships 5-16 days
030b 991-8519 Paper vacuum bags (pkg of 10) $13.57 1 (NON-OEM) ships same day
030c 175-1589 Cloth bag $66.20 1 ships same day
031 275-5867 Front decal $9.00 1 ships same day
