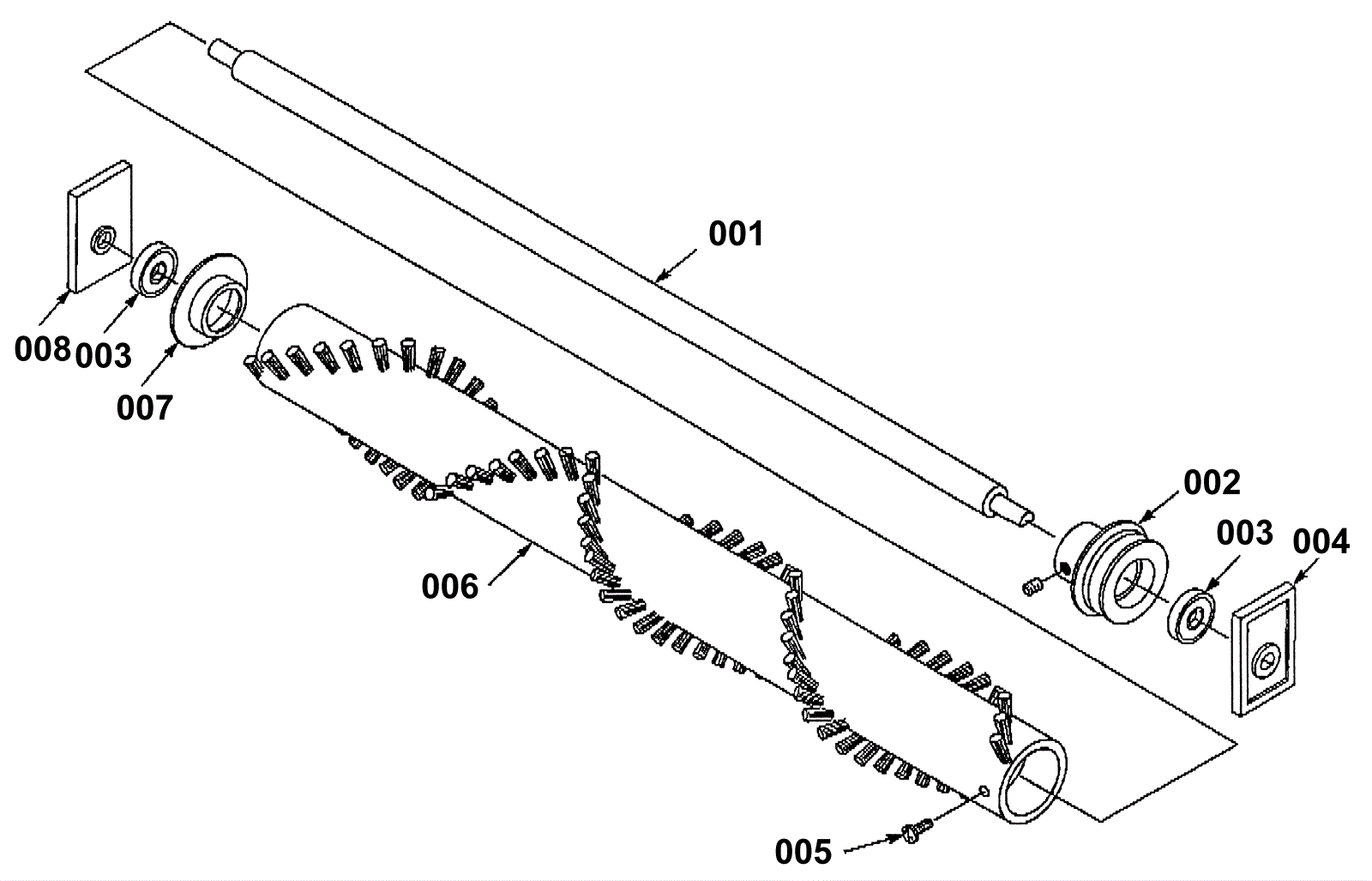

MAGNATWIN2600 608231 Brush Diagram

#PartDescriptionPriceReqNotesAvailability
000a 175-1627 16 inch brush assembly $300.00 1 usually ships 1-5 days
000b 175-1628 22 inch brush assembly $303.90 1 usually ships 5-16 days
000c 175-1629 26 inch brush assembly $438.30 1 usually ships 5-16 days
001a 175-1630 16 inch brush shaft $79.90 1 usually ships 1-5 days
001b 175-1631 22 inch brush shaft $105.60 1 usually ships 1-5 days
001c 175-1632 26 inch brush shaft $60.10 1 usually ships 5-16 days
002 175-1633 Brush pulley $38.20 1 usually ships 5-16 days
003a 175-0069 Brush bearing $16.60 2 (OEM) ships same day
003b 991-5125 Brush bearing $2.20 2 (NON-OEM) usually ships 5-16 days
004 175-1634 Brush shaft block with slot $11.90 3 usually ships 5-16 days
005 999-0477 Screw 10-24 x 5/16 truss head phillips zinc $1.54 2 ships same day
006a 175-1635 16 inch cylinder brush assembly $472.60 1 usually ships 1-5 days
006b 175-1636 22 inch brush assembly $201.70 1 usually ships 5-16 days
006c 175-1637 26 inch brush $161.20 1 usually ships 5-16 days
006d 175-1638 26 inch sleeve $26.90 1 usually ships 5-16 days
007 175-1639 Bearing cup $16.00 1 usually ships 5-16 days
008 175-1640 Brush shaft block without slot $14.20 1 usually ships 5-16 days
