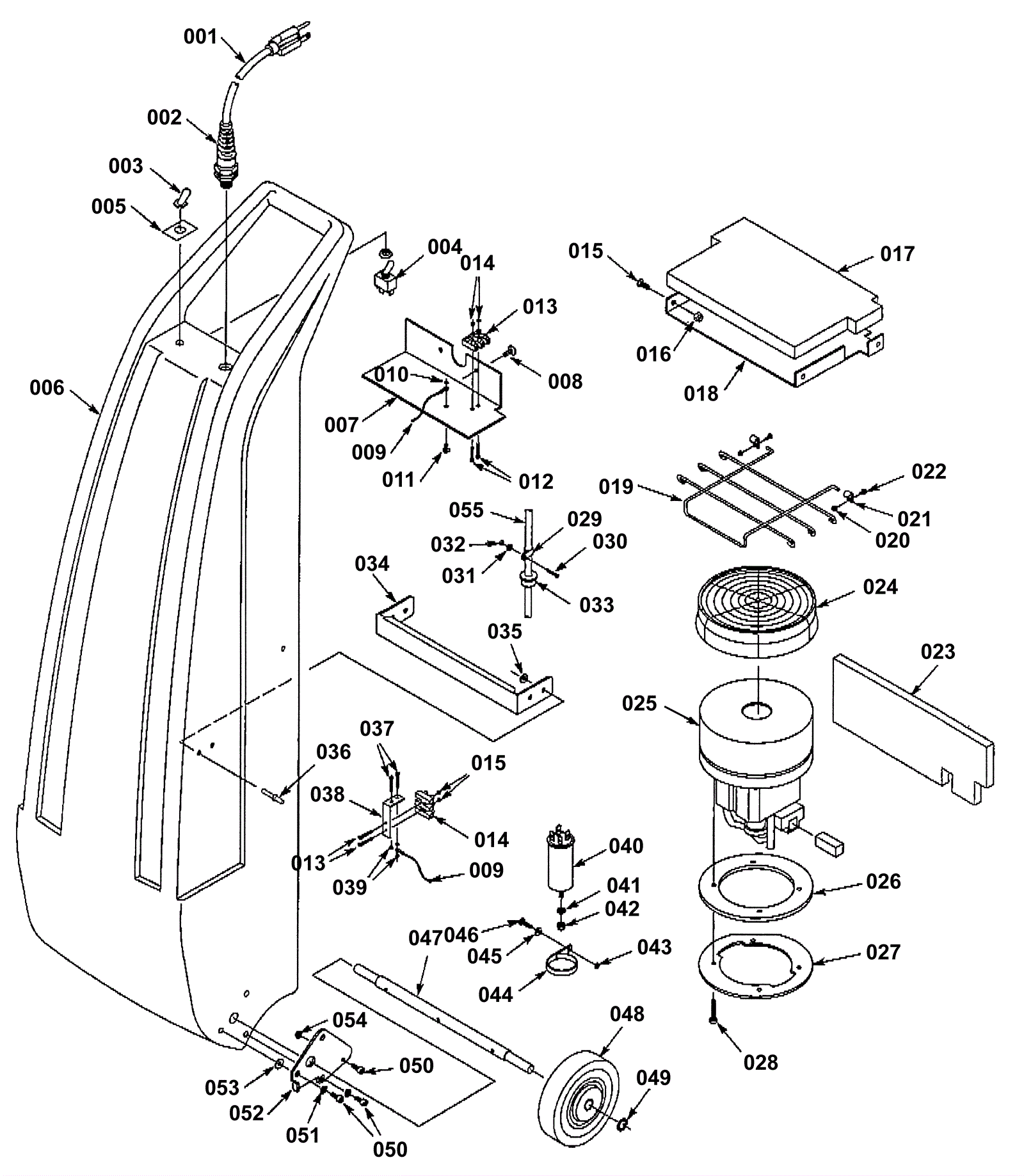

MAGNATWIN2600 608231 Upper Unit Diagram Cont.

#PartDescriptionPriceReqNotesAvailability
001a 175-0046 16/3 power cord 50 feet $96.00 1 ships same day
001b 175-0341 Cord 3 x 1-1/2mm x 15 M 220 volt $106.80 1 usually ships 1-5 days
002 175-0001 Strain relief $11.20 1 ships same day
003 175-0329 Rubber boot for switch $14.40 1 ships same day
004 164-0290 Toggle switch $13.30 1 ships same day
005 175-1760 On/off switch decal $4.10 1 usually ships 5-16 days
006 175-1746 Housing handle (green) $323.90 1 usually ships 1-5 days
007a 175-1761 Plate $51.50 1 usually ships 1-5 days
007b 175-8621 Plastic edging $10.00 1 usually ships 1-5 days
008 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 2 ships same day
009 175-1762 Strain relief cable $11.70 2 usually ships 1-5 days
010 999-0356 Nut 10-24 lock stainless steel $0.99 1 ships same day
011 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 1 ships same day
012 999-0475 Screw 6-32 x 3/4 pan head slotted zinc plated $0.99 4 ships same day
013 175-0027 25amp terminal strip $5.30 2 usually ships 5-16 days
014 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 4 ships same day
015 999-0434 Screw 6 x 3/8 pan head phillips $0.99 4 ships same day
016 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 4 ships same day
017 175-1763 Support filter $8.80 1 usually ships 1-5 days
018 175-1764 Screen support $75.50 1 usually ships 1-5 days
019 175-1765 Wire bag support $20.60 1 usually ships 1-5 days
020 999-0408 Nut 4-40 plain machine screw $0.99 2 ships same day
021 175-0255 Clamp $2.00 2 usually ships 1-5 days
022 999-0455 Screw 4-40 x 5/8 pan head phillips zinc plated $0.99 2 ships same day
023 175-1766 Embossed gasket $6.00 1 usually ships 1-5 days
024 991-5119 Vacuum motor filter $1.08 1 ships same day
025a 175-0252 120V vacuum motor $339.50 1 usually ships 5-16 days
025b 175-0251 Carbon brush (pkg of 2) $34.80 2 usually ships 5-16 days
025c 175-0252 120V vacuum motor $339.50 1 usually ships 5-16 days
025d 275-5835 Carbon brush (pkg of 2) $28.50 2 usually ships 5-16 days
026 175-0249 Vacuum motor gasket $8.80 1 usually ships 5-16 days
027 175-1767 Mount ring $13.80 1 usually ships 1-5 days
028 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated $0.99 3 ships same day
029 175-0144 P clamp $2.90 3 usually ships 5-16 days
030 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated $0.99 3 ships same day
031 999-0533 Washer M4 split lock plain finish $0.99 3 ships same day
032 999-0408 Nut 4-40 plain machine screw $0.99 3 ships same day
033 175-1768 Grommet 5/16 x 1 $2.40 1 usually ships 1-5 days
034 175-1769 Handle brace $10.50 1 usually ships 1-5 days
035 999-0412 Washer #8 SAE flat $0.99 4 ships same day
036 175-0895 Rivet $2.50 4 usually ships 1-5 days
037 999-1109 Screw 6-32 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
038 175-1770 Terminal strip bracket $14.30 1 usually ships 1-5 days
039 999-0195 Nut 6-32 hex plain $0.99 3 ships same day
040 175-1771 RFI filter $69.60 1 usually ships 1-5 days
041 999-0105 Washer 5/16 external star lock zinc plated $0.99 1 ships same day
042 999-1551 Nut M8-1.25 hex jam zinc plated $0.99 1 usually ships 1-5 days
043 175-3134 Snap bushing $1.90 1 usually ships 1-5 days
044 175-1772 Clamp (OBSOLETE) $1.44 1 usually ships 1-5 days
045 999-0393 Washer 3/16 flat aluminum $0.99 1 ships same day
046 999-0475 Screw 6-32 x 3/4 pan head slotted zinc plated $0.99 1 ships same day
047 175-1773 Wheel axle $52.20 1 usually ships 5-16 days
048 275-5209 Wheel (gray) $21.80 2 ships same day
049 175-1775 Retaining ring $4.50 2 usually ships 5-16 days
050 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 3 ships same day
051 175-1776 High collar washer $2.40 2 usually ships 5-16 days
052 175-1777 Latch plate $82.90 1 usually ships 5-16 days
053 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
054 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 1 ships same day
055 175-1778 Cord 18/3 x 41 inches $13.30 usually ships 5-16 days
