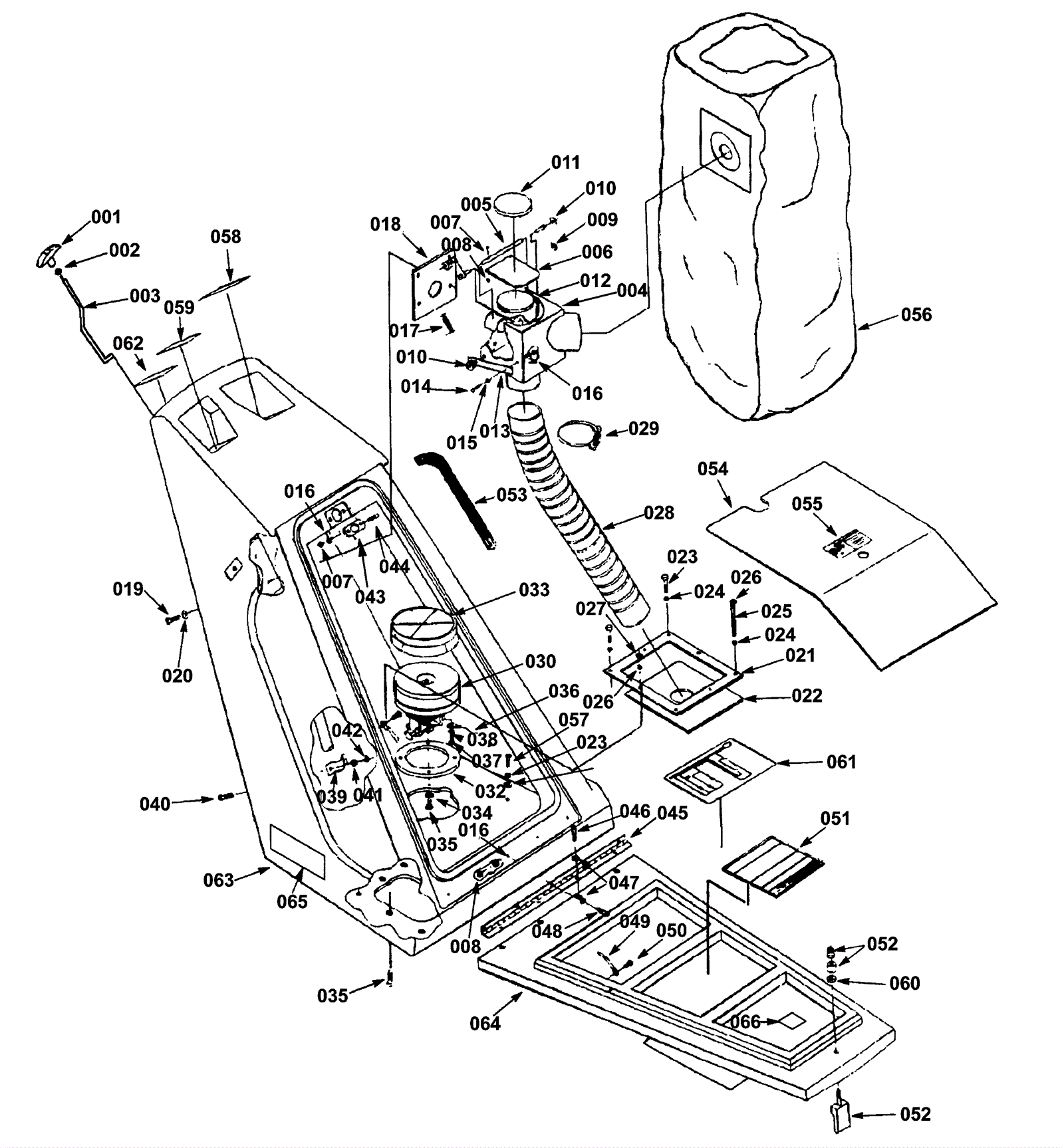

3280 Upper Housing Group

#PartDescriptionPriceReqNotesAvailability
001 175-4527 Chamber rod knob (OBSOLETE) $5.72 1 usually ships 10-16 days
002 999-0181 Nut 1/4-20 hex jam plain finish $0.99 1 ships same day
003 175-4528 Chamber rod $134.64 1 usually ships 10-16 days
004 175-4529 Vacuum chamber $206.47 1 usually ships 1-5 days
005 175-4530 Chamber adaptor rod $134.20 1 usually ships 1-5 days
006 175-4531 Chamber adaptor plate $33.22 1 usually ships 1-5 days
007 175-4532 Screw mo4 x 12 mm (OBSOLETE) $0.99 2 usually ships 1-5 days
008 999-0955 Nut M4-.7 hex nylon lock $1.52 9 ships same day
009 275-0182 VR, WASHER (Tennant Industrial) $6.83 1 usually ships 1-5 days
010 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
011 175-4535 Upper chamber gasket $13.64 1 usually ships 1-5 days
012 175-4536 Lower chamber gasket $84.37 1 usually ships 1-5 days
013 175-4537 Spring support $31.24 1 usually ships 1-5 days
014 175-4538 Screw M4 x 20mm $4.36 1 usually ships 1-5 days
015 999-0869 Nut M4-.7 hex coarse thread plain finish $0.99 2 ships same day
016 175-0450 Mounting bracket (OBSOLETE) $41.69 8 usually ships 1-5 days
017 175-4539 Chamber adaptor spring $12.87 1 usually ships 1-5 days
018 175-4540 Chamber gasket $5.83 1 usually ships 1-5 days
019 999-0557 Screw 1/4-20 x 1/2 truss head slotted stainless steel $0.99 4 ships same day
020 999-0006 Washer 3/16 flat zinc plated $0.99 12 ships same day
021 175-4541 Seal plate $43.56 1 usually ships 1-5 days
022 175-4542 Seal $14.96 1 usually ships 10-16 days
023 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 2 ships same day
024 999-0364 Washer #6 internal star lock zinc plated $0.99 9 ships same day
025 175-4543 Screw M6 x 30 set $5.50 1 usually ships 1-5 days
026 999-6678 Washer M6 nord lock $8.53 5 ships same day
027 999-0439 Nut M6-1 hex coarse thread $0.99 6 ships same day
028 175-4545 Vacuum tube (OBSOLETE) $47.84 1 usually ships 1-5 days
029 175-4546 Vacuum tube clamp (OBSOLETE) $3.83 1 usually ships 1-5 days
030 175-4547 Vacuum motor with gasket $281.71 2 usually ships 10-16 days
031 991-1206 120V 1 stage vacuum motor peripheral $139.16 2 usually ships 14-21 days
032 175-0249 Vacuum motor gasket $10.67 2 usually ships 10-16 days
033 991-5119 Vacuum motor filter $1.80 2 ships same day
034 999-0998 Washer #10 flat stainless steel $0.99 8 ships same day
035 175-4548 Screw 10-24 x 1 pan head phillips zinc $4.36 8 usually ships 1-5 days
036 175-4549 Green wire assembly $5.94 2 usually ships 1-5 days
037 175-4550 Ground screw $3.30 2 usually ships 1-5 days
038 999-0053 Washer #10 split lock plain finish $0.99 5 ships same day
039 275-8023 Clamp $5.83 1 usually ships 1-5 days
040 999-1224 Screw M6-1 x 20mm flat head phillips stainless steel $2.48 7 ships same day
041 175-4553 Washer 6.4 mm (OBSOLETE) $0.99 2 usually ships 1-5 days
042 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
043 175-4554 Latch plate $38.39 1 usually ships 1-5 days
044 175-4555 Screw M4 x 16mm $2.24 2 usually ships 1-5 days
045 175-4556 Hinge $22.22 1 usually ships 1-5 days
046 999-0530 Screw M4-.7 x 8mm pan head slotted zinc $0.99 4 ships same day
047 175-4557 Washer $3.70 9 usually ships 1-5 days
048 175-0914 Screw pan head phillips $3.17 5 usually ships 1-5 days
049 175-4558 Door cable $15.07 1 usually ships 1-5 days
050 175-4559 Screw 16 mm $2.24 2 usually ships 1-5 days
051 175-4560 Maintenance decal (OBSOLETE) $8.92 1 usually ships 1-5 days
052 175-4561 Cover swell latch $66.11 1 usually ships 10-16 days
053 175-4562 Door opening gasket $45.87 1 usually ships 1-5 days
054 275-6251 Vacfan cover $145.20 1 usually ships 10-16 days
055 175-4564 Warning vacuum fans decal $29.81 1 usually ships 1-5 days
056 175-4565 Vacuum cloth bag $123.97 1 usually ships 10-16 days
058 175-4567 Hazardous voltage decal (OBSOLETE) $2.64 1 usually ships 1-5 days
059 175-4568 Caution vacuum on decal $5.50 1 usually ships 1-5 days
060 175-6139 Spacer $5.15 1 usually ships 10-16 days
061 N/A Not available Call for price 1 (wiring decal) usually ships 3-26 days
062 175-0040 Warning decal (OBSOLETE) $5.06 1 usually ships 1-5 days
063 175-4570 Teal upper housing (OBSOLETE) $532.62 1 usually ships 1-5 days
065 175-4571 3280 decal (OBSOLETE) $6.49 2 usually ships 1-5 days
066 275-2370 Read manual decal $18.26 1 usually ships 10-16 days
N/S 175-0044 Carbon brush $28.16 2 ships same day
N/S 175-0142 1/4 inch male terminal $5.28 2 usually ships 10-16 days
N/S 175-9637 Paper filter bag (pkg of 10) $28.38 1 ships same day
