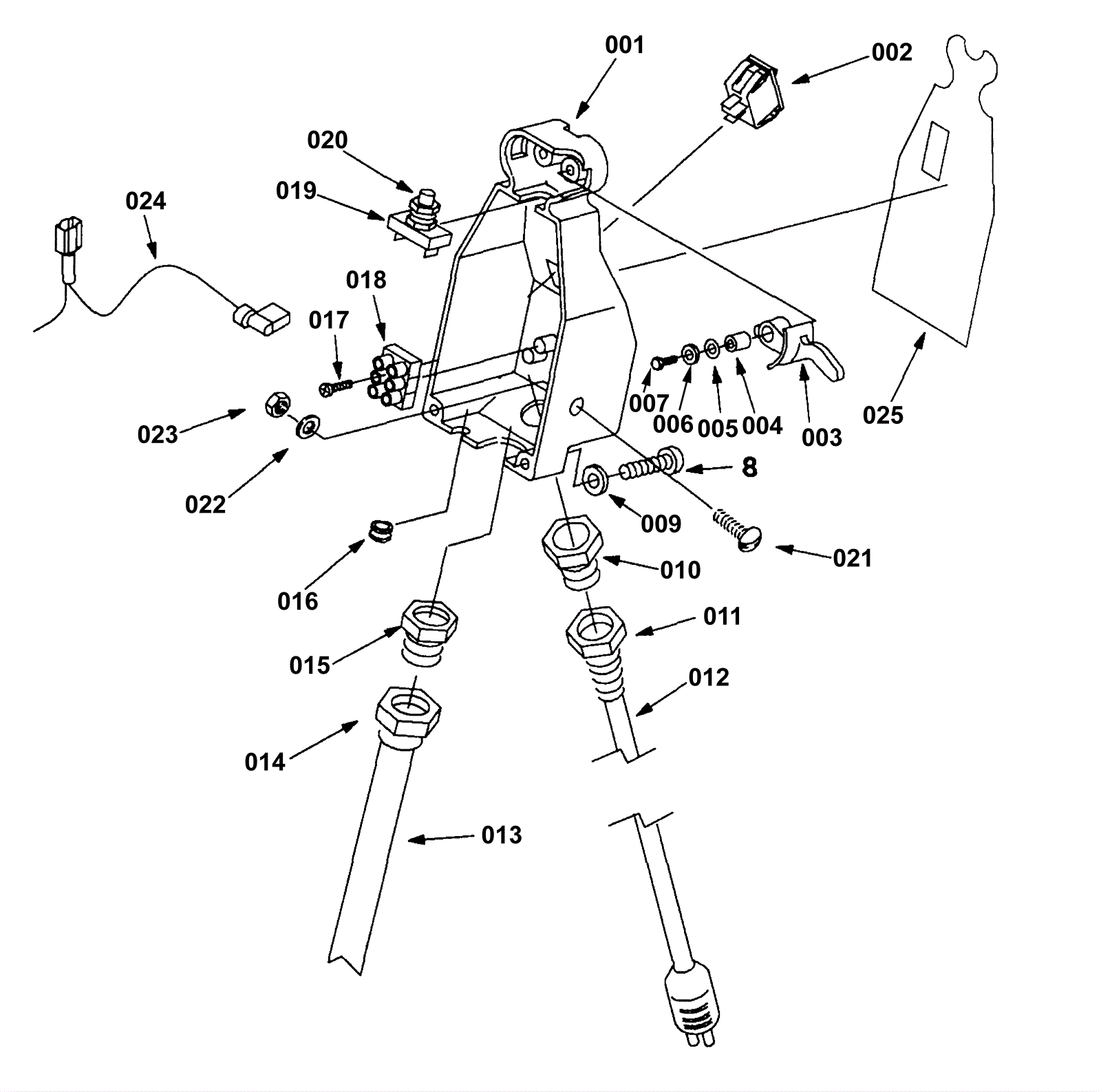

3280 Console Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-4459 Cover console $39.16 1 usually ships 10-16 days
002 175-0136 On/off rocker switch $11.44 1 ships same day
004 175-6384 Trigger spacer $4.49 2 usually ships 10-16 days
005 999-1115 Washer M4 flat zinc plated $0.99 2 ships same day
006 999-0479 Washer #4 internal star lock zinc plated $0.99 2 ships same day
007 999-0805 Bolt M3-.5 x 16mm hex head $0.99 2 ships same day
008 999-1085 Screw M5-.8 x 30mm pan head phillips zinc plated $0.99 3 ships same day
009 999-0053 Washer #10 split lock plain finish $0.99 5 ships same day
010 175-6158 Nut 1/2 conduit $4.88 1 usually ships 10-16 days
011 175-0340 Strain relief $10.34 1 usually ships 10-16 days
013 175-4462 Wire harness $49.06 1 usually ships 1-5 days
014 175-6124 Cord grip $10.34 1 usually ships 1-5 days
015 175-4463 Strain relief locknut (OBSOLETE) $0.99 1 usually ships 1-5 days
016 175-2829 Dome plug $5.28 1 usually ships 1-5 days
017 175-6391 Screw 6 pan head self-tapping type 3 (OBSOLETE) $1.45 2 usually ships 1-5 days
018 175-0027 25amp terminal strip $6.05 1 usually ships 10-16 days
019 175-6400 Push button switch kit $31.79 1 usually ships 10-16 days
020 175-6386 Washer 1/2 flat spring disc zinc plated $5.50 1 usually ships 10-16 days
022 999-0311 Washer #10 external star lock zinc plated $0.99 3 ships same day
023 999-0960 Nut 10-24 hex stainless steel $0.99 2 ships same day
024 175-4466 Black assembly wire $12.76 1 usually ships 10-16 days
025 175-4467 Console cover decal $21.56 1 usually ships 10-16 days
