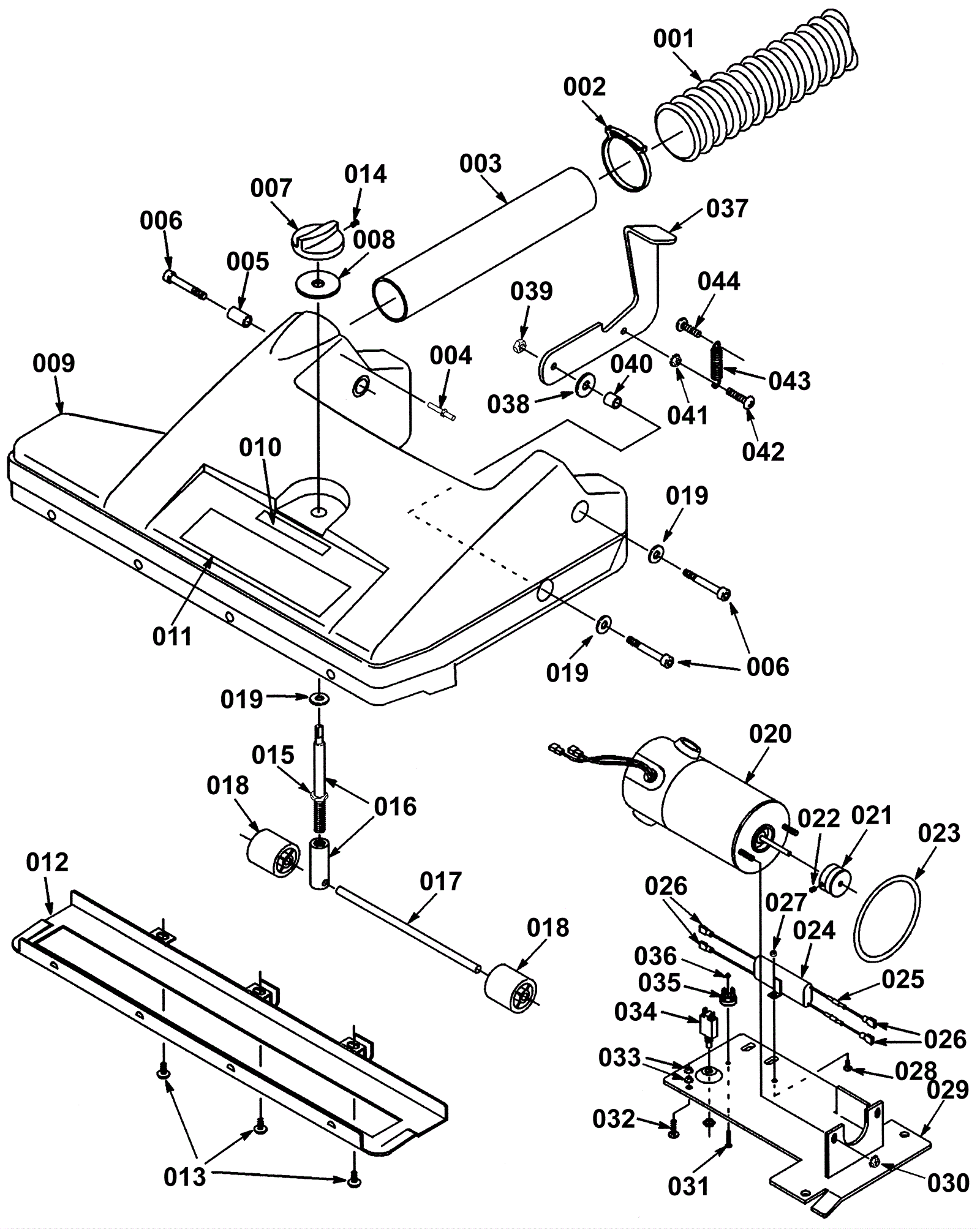

MAGNATWIN2600 608231 Lower Unit

#PartDescriptionPriceReqNotesAvailability
001a 175-1713 Hose with cuff 1 1/2 inches $43.45 1 (1600) usually ships 1-5 days
001b 175-1714 Hose with cuff 2 inches $119.01 1 (2200 and 2600) usually ships 5-16 days
002 997-2003 Hose clamp $2.66 1 ships same day
003a 997-2000 Hose clamp $2.37 1 (1600) ships same day
003b 175-1716 Base tube $19.69 1 (2200 and 2600) usually ships 5-16 days
004 997-1004 Pop rivet $1.87 1 ships same day
005a 175-1717 Adjusting nylon bushing $42.13 1 (1600) usually ships 1-5 days
005b 175-1718 Adjusting nylon bushing $30.69 1 (2200 and 2600) usually ships 1-5 days
006 175-1719 Shoulder bolt $4.95 3 usually ships 5-16 days
007 175-1720 Height adjusting knob $22.88 1 usually ships 5-16 days
008 175-1721 Washer 1/2 x 3/8 x 1/8 felt $4.84 1 usually ships 5-16 days
009a 175-1722 16 inch green base $316.03 1 usually ships 1-5 days
009b 175-1723 22 inch green base (OBSOLETE) $172.59 1 usually ships 1-5 days
009c 175-1724 26 inch green base $345.40 1 usually ships 5-16 days
010 175-1725 Brush height adjustment decal $13.75 1 usually ships 1-5 days
011a 175-1726 Magna Twin 1600 decal (OBSOLETE) $9.79 1 usually ships 1-5 days
011b 175-1727 Magna Twin 2200 decal (OBSOLETE) $6.93 1 usually ships 1-5 days
011c 175-1728 Magna Twin 2600 decal (OBSOLETE) $5.41 1 usually ships 1-5 days
012a 175-1729 16 inch shoe plate $140.80 1 usually ships 1-5 days
012b 175-1730 22 inch shoe plate $1,056.00 1 usually ships 1-5 days
012c 175-1731 26 inch shoe plate (OBSOLETE) $330.11 1 usually ships 5-16 days
013a 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated $0.99 3 ships same day
013b 175-1733 Height adjustment assembly $76.56 1 (1600 and 2200) usually ships 5-16 days
013c 175-1734 Height adjustment assembly $112.86 1 (2600) usually ships 1-5 days
014 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 1 ships same day
015 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 1 ships same day
016 175-1715 Pivot block and adjsuting shaft assembly $47.30 1 usually ships 5-16 days
017 175-1732 Axle roller shaft $66.44 1 usually ships 5-16 days
018 175-0061 Roller wheel $9.35 2 usually ships 5-16 days
019 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 3 ships same day
020a 175-6131 120V brush motor $289.52 1 ships same day
020b 175-1266 Carbon brush (sold individually) $115.72 1 usually ships 1-5 days
021 175-1735 Motor pulley $44.44 1 usually ships 5-16 days
022 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 1 ships same day
023a 175-1736 Brush drive belt $11.88 1 ships same day
023b 175-1737 Filter assembly $114.07 1 usually ships 1-5 days
024 175-1738 Brush filter $101.64 1 usually ships 1-5 days
025 175-1739 Choke $9.57 2 usually ships 1-5 days
026 175-3011 Female terminal $2.31 4 usually ships 5-16 days
027 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 1 ships same day
028 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 1 ships same day
029 175-1740 Brush motor mounting plate $84.04 1 usually ships 5-16 days
030 999-0239 Nut 10-32 k-lock zinc plated $0.99 2 ships same day
031 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 1 ships same day
032 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 3 ships same day
033 999-0239 Nut 10-32 k-lock zinc plated $0.99 2 ships same day
034 175-0030 1.5amp circuit breaker $24.64 1 usually ships 5-16 days
035 175-6052 15amp rectifier $24.09 1 ships same day
036 999-0195 Nut 6-32 hex plain $0.99 1 ships same day
037 175-1741 Foot pedal latch plate $37.29 1 usually ships 5-16 days
038 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
039 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 1 ships same day
040 175-1512 Spacer $8.58 2 ships same day
041 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 1 ships same day
042 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 1 ships same day
043 175-1742 Latch spring $5.39 1 usually ships 5-16 days
044 999-1077 Screw 1/4-20 x 1/2 truss head phillips stainless steel $2.24 1 ships same day
N/S 175-1743 Wire harness $13.20 1 usually ships 1-5 days
