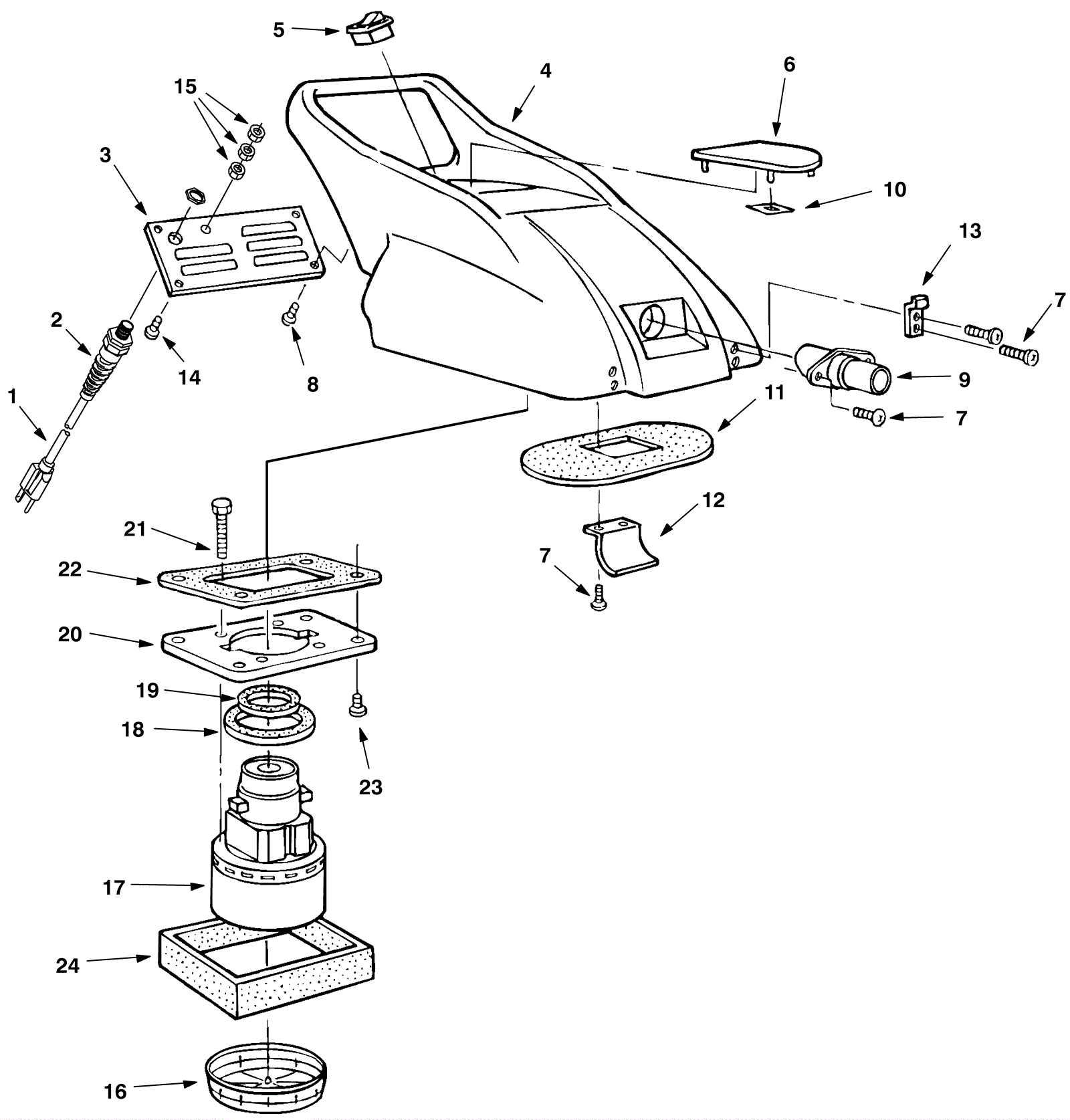

TYPHOON EV Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1a 175-1522 16/3 pigtail cord 18 inch $47.19 1 (OEM) usually ships 5-16 days
1b 991-5002 16/3 extension cord 50 foot (yellow) $48.73 1 (NON-OEM) ships same day
1c 991-5006 16/3 replacement power cord 50 foot (yellow) $37.50 1 (NON-OEM) ships same day
2 175-0001 Strain relief $12.32 1 ships same day
3 175-1524 Rear cover plate $31.46 1 usually ships 5-16 days
4 175-5542 Handle (teal) $433.95 1 usually ships 1-5 days
5 175-1008 Rocker switch $30.25 1 ships same day
6 175-1526 Air vent cover $11.11 1 usually ships 5-16 days
7 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 8 ships same day
8 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 4 ships same day
9 175-0050 Hose adapter $10.67 1 ships same day
10 175-1552 Push-on nut $4.29 4 usually ships 5-16 days
11 175-0884 Cover gasket $22.99 1 ships same day
12 175-1528 Air deflector bracket $39.16 1 usually ships 5-16 days
13a 175-3369 Hood latch $32.12 2 (OEM) usually ships 5-16 days
13b 991-8561 Rubber draw latch with keeper $27.63 2 (NON-OEM) ships same day
14 999-1008 Screw 10-32 x 3/4 round head phillips stainless steel $0.99 1 ships same day
15 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
16 991-5119 Vacuum motor filter $1.35 1 ships same day
17a 175-9018 120V 2 stage vacuum motor peripheral $356.95 1 (includes 17e-17f) (Typhoon EV 1592) (OEM) ships same day
17b 991-1244 120V 2 stage vacuum motor peripheral $192.03 1 (Typhoon EV 1592) (NON-OEM) ships same day
17c 175-1541 120V 3 stage vacuum motor tangential $627.22 1 (includes 17g-17h) (Typhoon EV 1512) (OEM) usually ships 5-16 days
17d 991-1213 120V 3 stage vacuum motor tangential $177.60 1 (Typhoon EV 1512) (NON-OEM) ships same day
17e 175-0251 Carbon brush (pkg of 2) $38.28 1 usually ships 5-16 days
17f 275-9011 Fan housing (OBSOLETE) Call for price 1 usually ships 1-5 days
17g 175-1542 Carbon brush (pkg of 2) $62.04 1 usually ships 5-16 days
17h 175-5289 Shell $24.31 1 usually ships 5-16 days
18 175-0053 Gasket $7.92 1 ships same day
19 175-9012 Top gasket $16.61 1 ships same day
20 175-1544 Mounting plate $31.35 1 ships same day
21 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 4 ships same day
22 175-9014 Mounting gasket $13.97 1 ships same day
23 999-0821 Bolt 1/4-20 x 1/2 hex head grade 9 yellow zinc $0.99 4 ships same day
24 175-9016 Acoustic foam $15.40 1 ships same day
