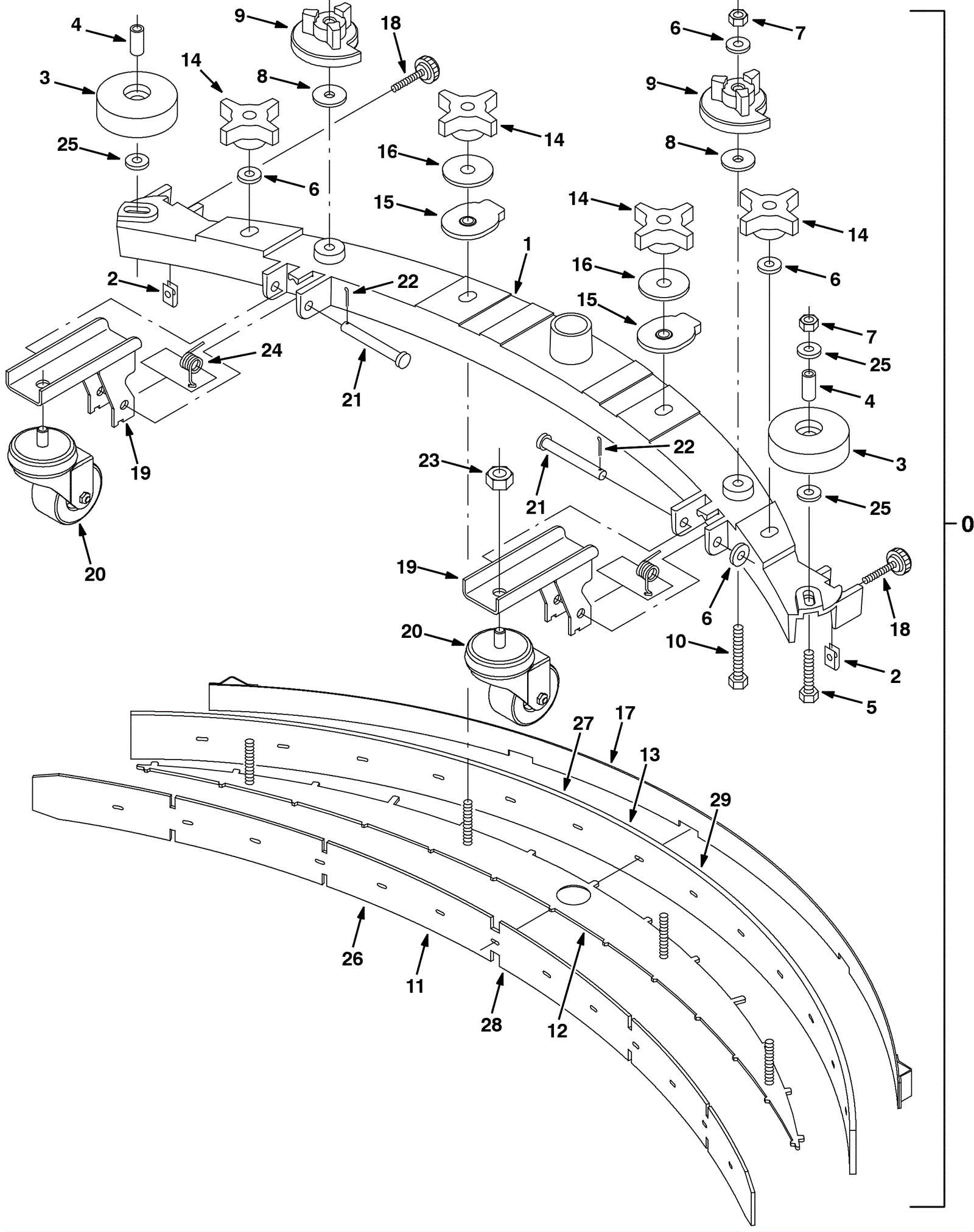

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
175-3464
|
Squeegee kit 28 inch |
1 |
(includes 1-25) |
|
1 |
175-3465
|
28 inch (700mm) squeegee weldment |
1 |
|
|
2 |
175-2291
|
Nut 1/4-20 speed clip |
2 |
|
|
3 |
175-7919
|
Guide wheel |
2 |
|
|
4 |
175-2249
|
Sleeve |
2 |
|
|
5 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
2 |
|
|
6 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
6 |
|
|
7 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
4 |
|
|
8 |
175-2309
|
Washer |
2 |
|
|
9 |
175-2183
|
Adjustment cam |
2 |
|
|
10 |
999-0909
|
Bolt M8-1.25 x 70mm hex head stainless steel |
2 |
|
|
11 |
175-3466
|
Squeegee blade 26 and 28 inch linatex front (red) |
1 |
|
|
11b |
991-7139
|
Squeegee blade 26 inch gum rubber front (red) |
1 |
(NON-OEM) |
|
12 |
175-3467
|
Squeegee retainer plate 28 inch |
1 |
|
|
13a |
175-3468
|
Squeegee blade 26 and 28 inch linatex rear (red) |
1 |
|
|
13b |
991-7140
|
Squeegee blade 26 inch gum rubber rear (red) |
1 |
(NON-OEM) |
|
14 |
175-2208
|
Plastic star knob |
4 |
|
|
15 |
175-3469
|
Squeegee mounting ring |
2 |
|
|
16 |
175-3470
|
Washer .53b 1.88d .12 steel plated |
2 |
|
|
17 |
175-3471
|
Squeegee strap rear 28 inch |
1 |
|
|
18 |
175-2180
|
Knob |
2 |
|
|
19 |
175-3472
|
Squeegee wheel bracket weldment |
2 |
|
|
20 |
175-3473
|
2.5 inch caster wheel |
2 |
|
|
21 |
173-1595
|
Clevis pin |
2 |
|
|
22 |
175-6176
|
Cotter pin |
2 |
|
|
23 |
999-0202
|
Nut 1/2-13 hex plain finish |
2 |
|
|
24 |
175-2273
|
Torsion spring |
2 |
|
|
25 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
26a |
175-3475
|
Squeegee blade 26 and 28 inch kit urethane |
1 |
(includes 26b-27a) |
|
26b |
175-2067
|
Squeegee blade 26 and 28 inch urethane front |
1 |
|
|
26c |
991-9181
|
BLADE, SQ FRONT, 35"URE [700MM] |
1 |
(NON-OEM) |
|
26d |
991-3178
|
Squeegee blade 26 and 28 inch PRIMOthane front |
1 |
(NON-OEM) |
|
27a |
175-2068
|
Squeegee blade 26 and 28 inch urethane rear |
1 |
(OEM) |
|
27b |
991-9182
|
BLADE, SQ REAR, 37.5" URE [700MM] |
1 |
(NON-OEM) |
|
27c |
991-3179
|
Squeegee blade 26 and 28 inch PRIMOthane rear |
1 |
(NON-OEM) |
|
28a |
175-3476
|
Squeegee blade 26 & 28 in kit rear gum rubber/front linatex |
1 |
(includes 28b-29) |
|
28b |
991-1921
|
28 inch squeegee blade kit gum rubber |
1 |
(NON-OEM) |
|
28c |
175-3466
|
Squeegee blade 26 and 28 inch linatex front (red) |
1 |
|
|
28d |
991-7139
|
Squeegee blade 26 inch gum rubber front (red) |
1 |
(NON-OEM) |
|
29 |
175-3477
|
Squeegee blade 26 and 28 inch gum rubber rear (tan) |
1 |
|
|
