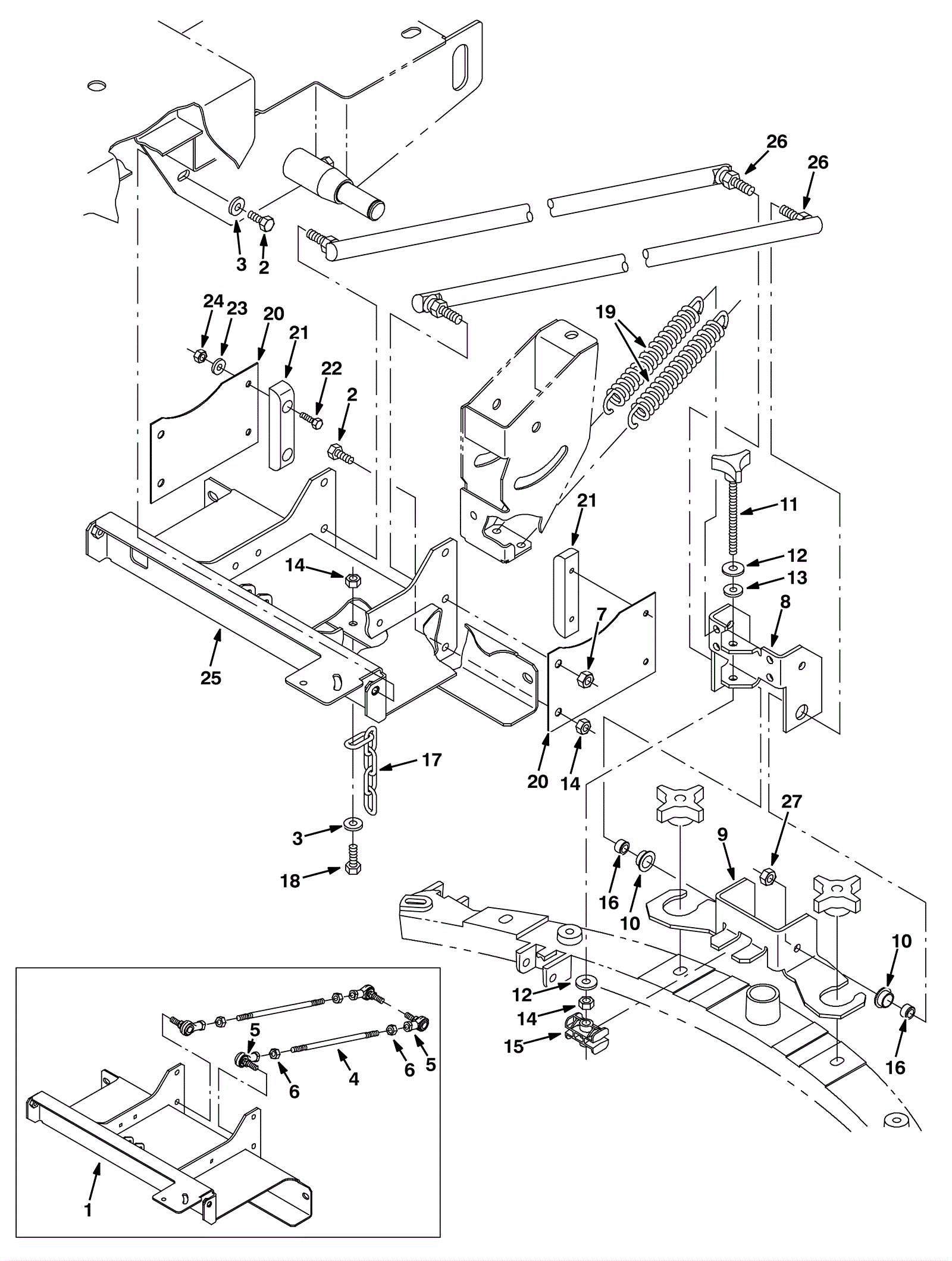

7100 Rear Squeegee Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-5300 Squeegee linkage frame weldment $154.01 1 (before SN 00557) usually ships 1-5 days
2 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 6 ships same day
3 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 5 ships same day
4 175-3457 2 End rod thread 3/8-24 $28.40 2 (before SN 01140) usually ships 5-16 days
5 175-3321 Rod end right side $38.00 4 (before SN 01140) usually ships 5-16 days
6 999-0169 Nut 3/8-24 hex jam plain finish $0.99 8 (before SN 01140) ships same day
7 175-3322 Nut 3/8-24 hex lock $4.90 4 usually ships 5-16 days
8 175-5301 Squeegee upper channel $46.60 1 usually ships 5-16 days
9 175-5302 Squeegee lower channel $45.70 1 usually ships 5-16 days
10 175-3460 Flanged bushing $9.60 2 usually ships 5-16 days
11 175-3461 Knob $26.40 1 usually ships 5-16 days
12 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
13 175-2896 Washer 5/16 $3.00 1 usually ships 5-16 days
14 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 ships same day
15 175-2301 Squeegee adjustment block $11.60 1 ships same day
16 175-2814 Spacer $5.30 2 usually ships 5-16 days
17 375-2600 Static chain (OBSOLETE) Call for price 1 usually ships 5-16 days
18 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
19 175-2370 Extension spring $8.90 2 ships same day
20 175-3462 Centering spring plate $22.60 2 usually ships 1-5 days
21 175-3463 Centering block $25.10 2 usually ships 5-16 days
22 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 4 ships same day
23 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
24 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 4 ships same day
25 175-5300 Squeegee linkage frame weldment $154.01 1 (after SN 00556) usually ships 1-5 days
26 175-5220 Balljoint link 3/8-24 $43.00 2 (after SN 01139) usually ships 5-16 days
27 175-3455 Nut 3/8-24 hex lock $3.30 2 (after SN 01139) usually ships 5-16 days
